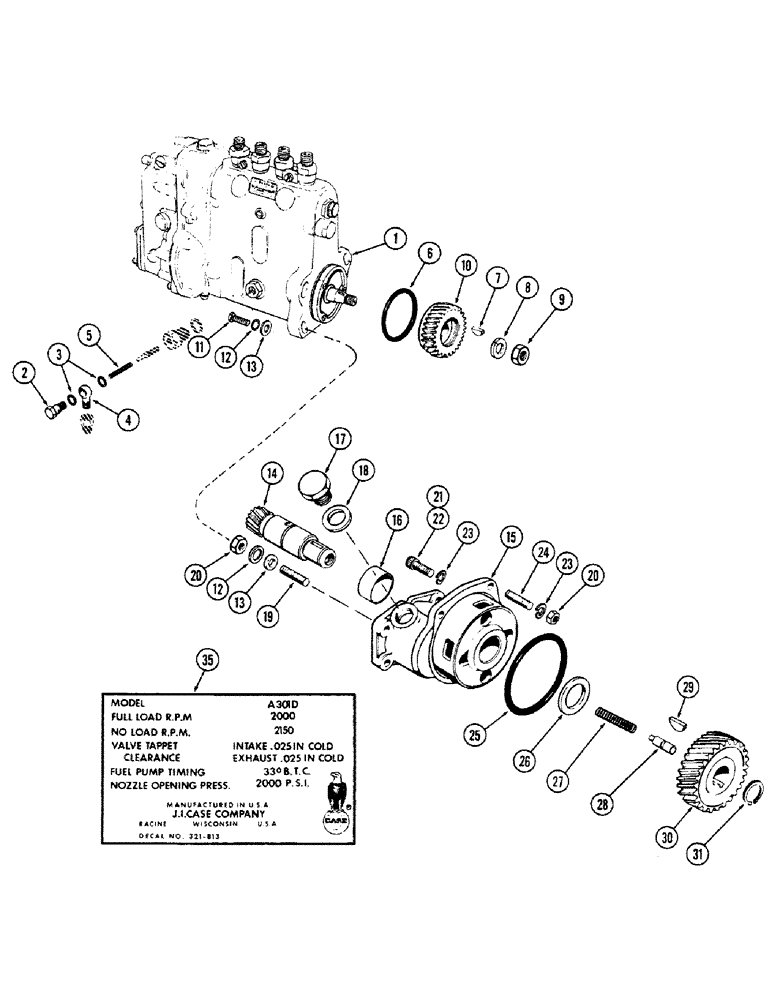

Запчасти Case IH 1010 (396) - FUEL INJECTION PUMP AND DRIVE, 301 DIESEL ENGINE (10) - ENGINE

1

A20448

PUMP ASSY. - fuel injection

1шт.

2

A25192

BANJO BOLT

BOLT - lube oil fitting

1шт.

3

A22381

WASHER

- banjo fitting

2шт.

4

A25191

FITTING

- oil lube line (Banjo type)

1шт.

5

A25190

SPRING

- oil lube port

1шт.

6

A20529

O-RING,2.598" ID x 2.834" OD

"O" RING - pump to housing

1шт.

7

A20933

KEY

- drive gear, pump

1шт.

8

A25188

WASHER

- gear lock

1шт.

9

A25189

NUT - retaining, pump gear

1шт.

10

A21139

GEAR

- injection pump

1шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C., hex.

2шт.

12

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

13

195-25

WASHER,3/8"

- plain, 13/32" I.D. x 13/16" O.D.

4шт.

14

A20622

GEAR

PINION - drive, pump gear

1шт.

15

A21136

HOUSING ASSY. - pinion & drive gear

1шт.

16

NSS

NOT SOLD SEPARAT

BUSHING - housing

1шт.

17

A21140

PLUG

- timing window

1шт.

18

O9892AB

STUD

GASKET - timing plug

1шт.

19

A20664

STUD - mtg., fuel pump

2шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

21

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - 3/8" x 1-1/4" N.C., 12 pt. hd.

1шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

23

92-6

LOCK WASHER,3/8"

3шт.

24

O1579AB

STUD - mtg., pinion & gear hsg.

1шт.

25

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - housing to cyl. block

1шт.

26

O9745AB

X

WASHER - thrust

1шт.

27

O9726AB

X

SPRING - plunger tension

1шт.

28

O9725AB

X

PLUNGER - thrust, pinion

1шт.

29

126-66

WOODRUFF KEY

KEY - drive gear, #141 Woodruff

1шт.

30

A20899

GEAR WHEEL

GEAR - drive, fuel injection pump

1шт.

31

O9016AB

X

RING - snap, drive gear retaining

1шт.

35

321-813

DECAL - engine data

1шт.
