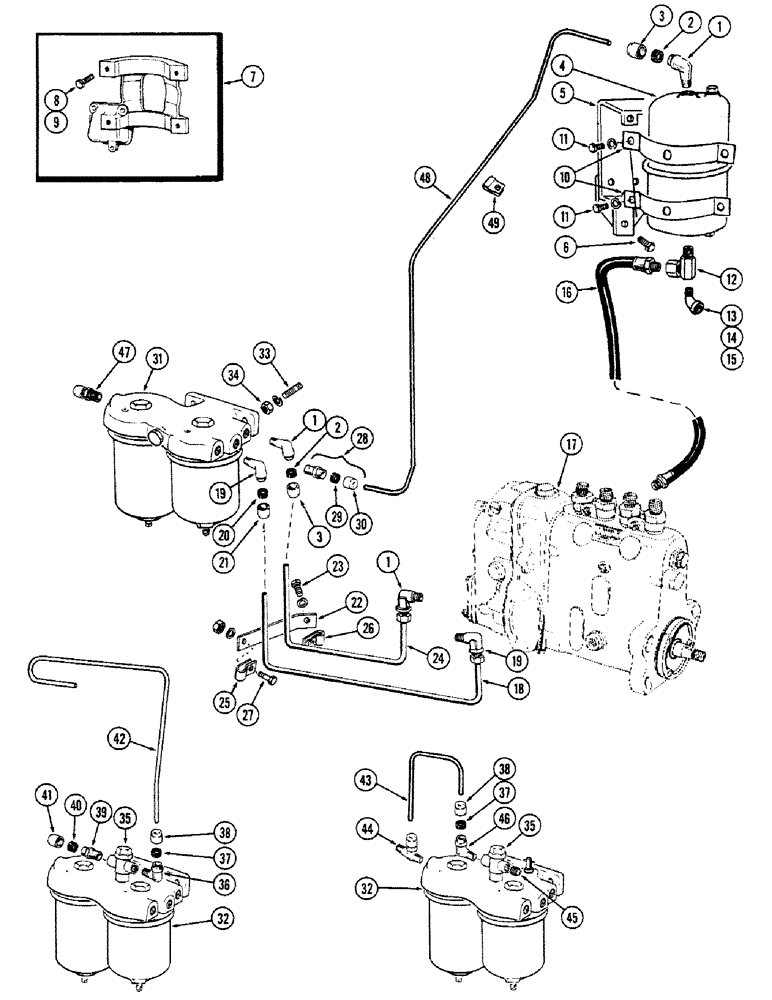

Запчасти Case IH 1010 (394) - FUEL FILTER SYSTEM, 301 DIESEL ENGINE (10) - ENGINE

1

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line, 5/16" tube x 1/4" P.T.

3шт.

2

222-103

SLEEVE,5/16" Tube

- elbow, 1/4" O.D. tube

1шт.

3

222-113

TUBE NUT,9/16"-24

NUT - elbow, 1/4" P.T.

1шт.

4

O9985AB1

FILTER - fuel, final stage

1шт.

5

A33617

BRACKET - final filter (Combine S/N 8262501 & after)

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

7

A22183

BRACKET & HOUSING - final filter (Prior Combine S/N 8262501)

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.C., hex

2шт.

10

A21444

CLAMP - final filter

2шт.

11

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

12

A20539

FITTING

UNION - adapter, 90 degrees

1шт.

13

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

ASSY. - 1/8" tube x 1/8" P.T., #60 fl.

1шт.

14

222-100

TUBE NUT,1/8" Tube

SLEEVE - elbow, 1/8" Tube

1шт.

15

222-110

TUBE NUT,3/8"-24

NUT - elbow, 1/8" P.T.

1шт.

16

A21070

HOSE,9.53mm ID x 203.2mm L

- Final filter to fuel pump 0.38" ID x 8.00"

1шт.

17

A20448

PUMP ASSY. - fuel injector (Repairs, p. 396)

1шт.

18

A20651

TUBE

- fuel pump to 2nd filter

1шт.

19

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 3/8" tube x 1/4" P.T.

2шт.

20

222-104

SLEEVE,3/8" Tube

- elbow, 3/8" Tube

1шт.

21

222-114

NUT,5/8"-24

NUT - elbow, 1/4" P.T.

1шт.

22

A20656

BRACKET - primary filter tubes

1шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

24

A20650

TUBE

- fuel pump to 1st. filter

1шт.

25

O9649AB

CLIP - tube retainer (A20651 tube)

1шт.

26

A20688

CLIP

- tube retainer (A20650 tube)

1шт.

27

75-412

SCREW,Rd, 1/4" x 3/4"

- mach., 1/4" x 3/4" N.C. rd. hd.

1шт.

28

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - fuel line

1шт.

29

222-103

SLEEVE,5/16" Tube

- Connector 5/16" Tube

1шт.

30

222-113

TUBE NUT,9/16"-24

NUT - connector, 1/4" P.T.

1шт.

31

A40435

FILTER

ASSY. - primary fuel (Combine S/N 8262501 & after) (Repairs, p. 398)

1шт.

32

A21133

FILTER

ASSY. - primary fuel (Prior Combine S/N 8262501) (Repairs, p. 398)

1шт.

33

O1579AB

STUD - filter, Serial Range: base-block

2шт.

34

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

2шт.

35

A20637

LOCK VALVE

VALVE ASSY. - relief (Prior Combine S/N 8262501)

1шт.

36

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - fuel tube

1шт.

37

222-102

SLEEVE,1/4" Tube

Elbow 1/4" Tube

1шт.

38

87017024

TUBE NUT,1/2"-24

NUT - elbow, 1/4" tube

1шт.

39

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - valve

1шт.

40

222-103

SLEEVE,5/16" Tube

- Connector 5/16" Tube

1шт.

41

222-113

TUBE NUT,9/16"-24

NUT - connector, 1/4" P.T.

1шт.

42

A20638

TUBE - relief valve to #4 nozzle (Prior engine S/N 2081381)

1шт.

43

A24661

TUBE - relief valve to filter inlet (Engine S/N 2081381 to Combine S/N 8262501)

1шт.

44

222-83

TEE - 1/4" tube x 1/4" P.T.

1шт.

45

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, 1/8" sq. hd.

1шт.

46

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY. - 1/4" tube x 1/4" P.T.

1шт.

47

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR - 3/8" tube x 1/4" P.T., 69 fl.

1шт.

48

A22253

TUBE

- primary filter to final filter

1шт.

49

A7922

CLIP

- final filter tube

1шт.
