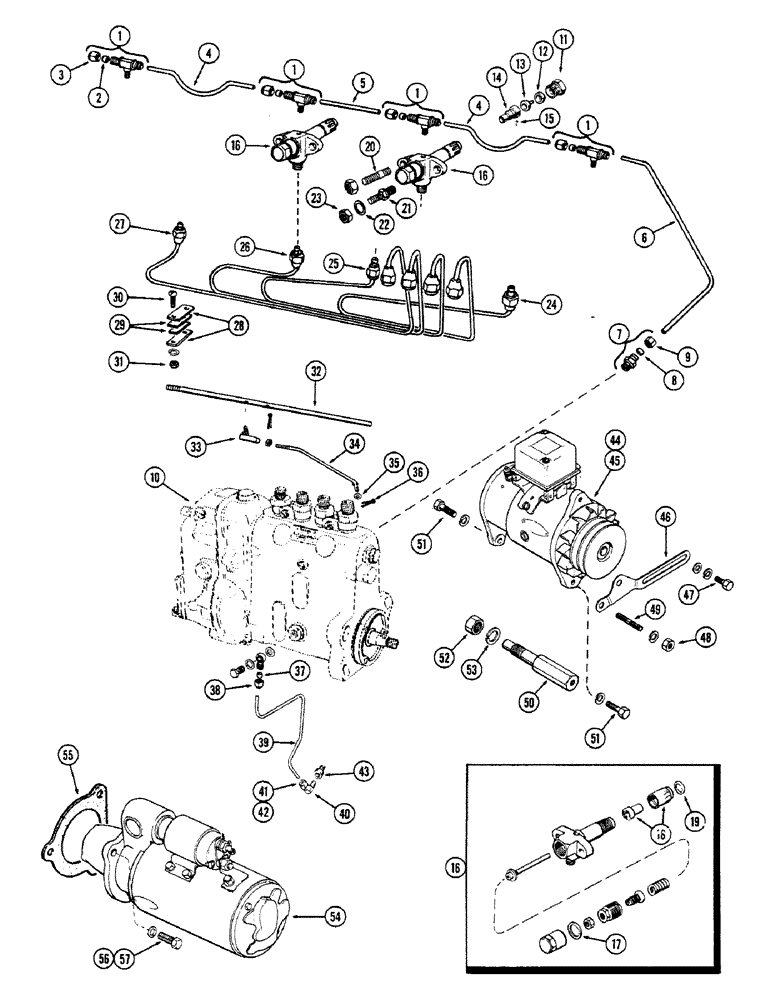

Запчасти Case IH 1010 (392) - FUEL INJECTION IGNITION SYSTEM, 301 DIESEL ENGINE (10) - ENGINE

1

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY. - injectors & leak-off lines

4шт.

2

222-102

SLEEVE,1/4" Tube

Tee 1/4" Tube

2шт.

3

87017024

TUBE NUT,1/2"-24

NUT - tee, for 1/4" O.D. tube

2шт.

4

O9978AB

X

TUBE - leak off, low injector

2шт.

5

A20162

TUBE

- leak-off, upper injector

1шт.

6

A22186

TUBE

- leak-off, #1, Serial Range: nozzle-pump

1шт.

7

O10604AB

X

VALVE ASSY. - leak-off check

1шт.

8

222-102

SLEEVE,1/4" Tube

Valve 1/4" Tube

1шт.

9

87017024

TUBE NUT,1/2"-24

NUT - valve, for 1/4" O.D. tube

1шт.

10

A20448

PUMP ASSY. - fuel (Repairs, p. 396)

1шт.

11

A11813

PLUG

SCREW - retainer, powrcel

4шт.

12

A11812

CLAMP

- powrcel

4шт.

13

A22975

CAP

- powrcel

4шт.

14

A22978

BODY

- powrcel

4шт.

15

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel

4шт.

16

A8013

NOZZLE INJECTION

INJECTOR ASSY. - nozzle

4шт.

17

O10618AB

X

GASKET - injector cap

1шт.

18

O9845AB

X

NOZZLE ASSY. - injector

1шт.

19

O9847AB

X

GASKET - nozzle seat

1шт.

20

O9848AB

X

STUD - nozzle holder, small

4шт.

21

A10678

STUD

- nozzle holder, large

4шт.

22

A10679

GASKET

- nozzle holder stud

4шт.

23

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

8шт.

24

A20501

TUBE

ASSY. - injector, cyl. #1

1шт.

25

A20502

TUBE

ASSY. - injector, cyl. #2

1шт.

26

A20503

TUBE

ASSY. - injector, cyl. #3

1шт.

27

A20504

TUBE

ASSY. - injector, cyl. #4

1шт.

28

O10318AB

X

CLAMP - injector lines (4 tubes)

2шт.

29

O10319AB

X

CUSHION - injector lines

2шт.

30

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- mach., #10 x 1" N.C., rd. hd.

2шт.

31

129-7

NUT,Hex, #10 - 24

- #10 N.C., hex.

2шт.

32

A34101

ROD

- throttle front

1шт.

33

A10326

BALL JOINT

JOINT ASSY. - ball, throttle link

1шт.

34

A33953

ROD

LINK - rod, pump throttle

1шт.

35

195-15

WASHER,#12

- plain, 1/4" small flat

1шт.

36

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

37

222-102

SLEEVE,1/4" Tube

Tube nut 1/4" Tube

1шт.

38

87017024

TUBE NUT,1/2"-24

NUT - tube, 1/4" O.D. tube

1шт.

39

A21786

TUBE - fuel pump to oil gallery

1шт.

40

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - oil tube

1шт.

41

222-102

SLEEVE,1/4" Tube

Elbow 1/4" Tube

1шт.

42

87017024

TUBE NUT,1/2"-24

NUT - elbow, 1/4" O.D. tube

1шт.

43

221-1052

PLUG

BUSHING - reducer, 3/8" x 1/8" P.T.

1шт.

44

A34126

GENERATOR ASSY. - engine (Repairs, p. 424)

1шт.

45

A20632

X

GENERATOR ASSY. - engine (Repairs, p. 424) (When replacing entire generator, order A34126)

1шт.

46

A20386

STRAP - adjusting, generator

1шт.

47

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

- sems, w/washer, 5/16" x 3/4" pilot pt.

1шт.

48

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

1шт.

49

A7391

STUD

- adjusting strap

1шт.

50

A20818

CARRIER - generator

1шт.

51

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F., hex.

2шт.

52

25-1112

NUT,3/4"-16, G5

- 3/4" N.F., hex.

1шт.

53

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

54

A21281

STARTING MOTOR

MOTOR ASSY. - starter (Repairs, p. 420)

1шт.

55

O9866AB

X

GASKET - mtg., starter

1шт.

56

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

57

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.
