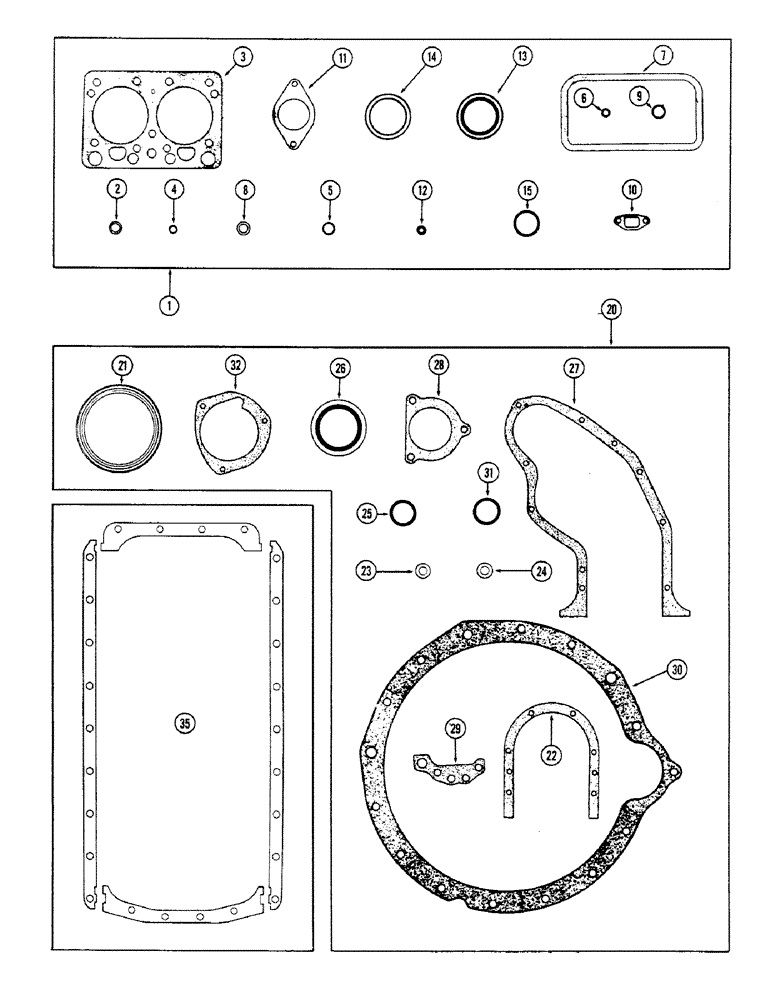

Запчасти Case IH 1010 (390) - ENGINE GASKET KIT, 301 DIESEL ENGINE, VALVE GRIND GASKET KIT (10) - ENGINE

1

A40338

X

GASKET KIT - valve grind

1шт.

2

A10679

GASKET

- injector stud

4шт.

3

A23117

GASKET

- cylinder head

2шт.

4

O8569AB

X

"O" RING - cyl. head oil passage

2шт.

5

A7669

RING

- seal, cyl. head gasket

4шт.

6

O9772AB

X

"O" RING - rocker shaft oil tube

2шт.

7

O9959AB

X

GASKET - cover, cyl. head

2шт.

8

A23684

GASKET

GASKET - cyl. hd. cover stud

4шт.

9

A23685

GASKET

- breather tube (Not used on this unit)

2шт.

10

O9804AB1

X

GASKET - water manifold

4шт.

11

O10715AB

X

GASKET - thermostat housing

1шт.

12

A10726

SEAL

SHIELD - intake valve stem

4шт.

13

A11888

MANIFOLD GASKET

- exhaust manifold

4шт.

14

A21054

MANIFOLD GASKET

- intake manifold

2шт.

15

O10717AB

X

SEAL - thermostat

1шт.

20

A40348

KIT

GASKET KIT - cylinder block

1шт.

21

A23085

OIL SEAL

- oil, rear crankshaft, cylinder block gasket kit

1шт.

22

A32830

GASKET

- rear c'shft. seal retainer, cylinder block kit

1шт.

23

A22670

SHIM,.005" Thk

Balancer (UAR), Cyl. block gasket kit .005" Thk

4шт.

24

A22671

SHIM,.010" Thk

Balancer (UAR), Cyl. block gasket kit .010" Thk

4шт.

25

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - injection pump housing, cylinder block gasket kit

1шт.

26

A23433

OIL SEAL

- oil, crankshaft front, cylinder block gasket kit

1шт.

27

A33018

GASKET

- timing gear cover, cylinder block kit

1шт.

28

O9866AB

X

GASKET - starting motor, cylinder block kit

1шт.

29

A21084

GASKET

- oil filter base, cylinder block kit

1шт.

30

A11649

GASKET

- cyl. block to cov. hsg. (Not used on this unit), kit

1шт.

31

O10035AB

X

"O" RING - flywheel to crankshaft, cylinder block gasket kit

1шт.

32

O9797AB

GASKET

- water pump, cylinder block kit

1шт.

35

A7616

GASKET KIT

- oil pan, cylinder block

1шт.
