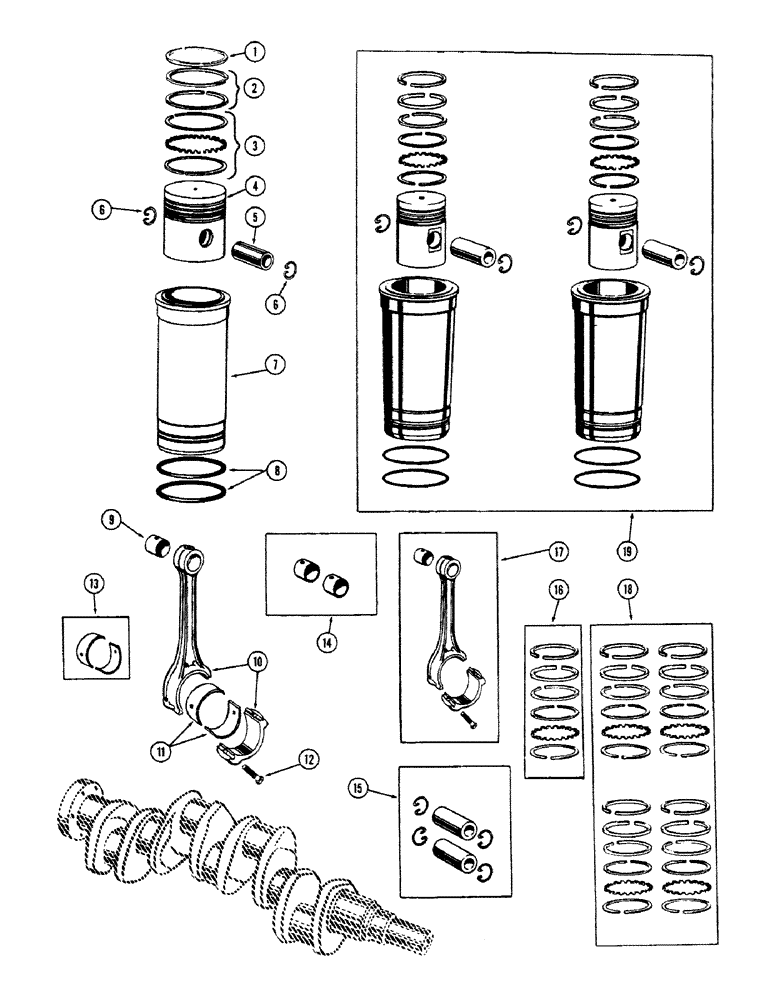

Запчасти Case IH 1010 (386) - PISTONS, SLEEVES AND CONNECTING RODS, 301 DIESEL ENGINE (10) - ENGINE

1

NSS

NOT SOLD SEPARAT

RING - piston, top (Order ref. #16 or 18)

4шт.

2

NSS

NOT SOLD SEPARAT

RING - piston, 2nd & 3rd. (Order ref. #16 or 18)

8шт.

3

NSS

NOT SOLD SEPARAT

RING ASSY. - piston, oil (Order ref. #16 or 18)

4шт.

4

A33712

X

PISTON - cylinder, 4-3/8" bore

4шт.

5

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. #15)

4шт.

6

A21016

RING, SNAP

RING - retaining, piston pin

8шт.

7

A23660

SLEEVE

- cylinder (See ref. #19)

4шт.

8

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - packing, cyl. sleeve

8шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - connecting rod (Order ref. #14)

4шт.

10

NSS

NOT SOLD SEPARAT

ROD - connecting (Order ref. #17)

4шт.

11

NSS

NOT SOLD SEPARAT

LINER - connecting rod (Order ref. #13)

8шт.

12

O9718AB

X

SCREW - cap, connecting rod

8шт.

13

A20393

LINING

LINER KIT - brg., conn. rod (Set of 2) (Std. size)

4шт.

13

A20569

JOURNAL

LINER KIT - brg., conn. rod (Set of 2) (-.002")

4шт.

13

A20571

BEARING LINER

LINER KIT - brg., conn. rod (Set of 2) (-.010")

4шт.

13

A20573

KIT

LINER KIT - brg., conn. rod (Set of 2) (-.020")

4шт.

13

A20576

LINING

LINER KIT - brg., conn. rod (Set of 2) (-.030")

4шт.

14

A21722

BUSHING

KIT - conn. rod (Set of 2)

2шт.

15

A21725

KIT

PIN KIT - piston (Set of 2 pins & 4 retainers)

2шт.

16

A40363

RING

KIT - piston (Re-ring single piston)

4шт.

17

A24424

ROD

KIT - connecting (Incl. rod, rod cap, bushing and cap screws)

4шт.

18

A20856

PISTON RING SET

RING KIT - piston (Re-ring 4 pistons)

1шт.

19

A40357

SLEEVE ASSY

SLEEVE KIT - cylinder (Set of 2) (Incl. sleeves, piston, & rings, piston pins and retainers and sleeve "O" rings)

2шт.
