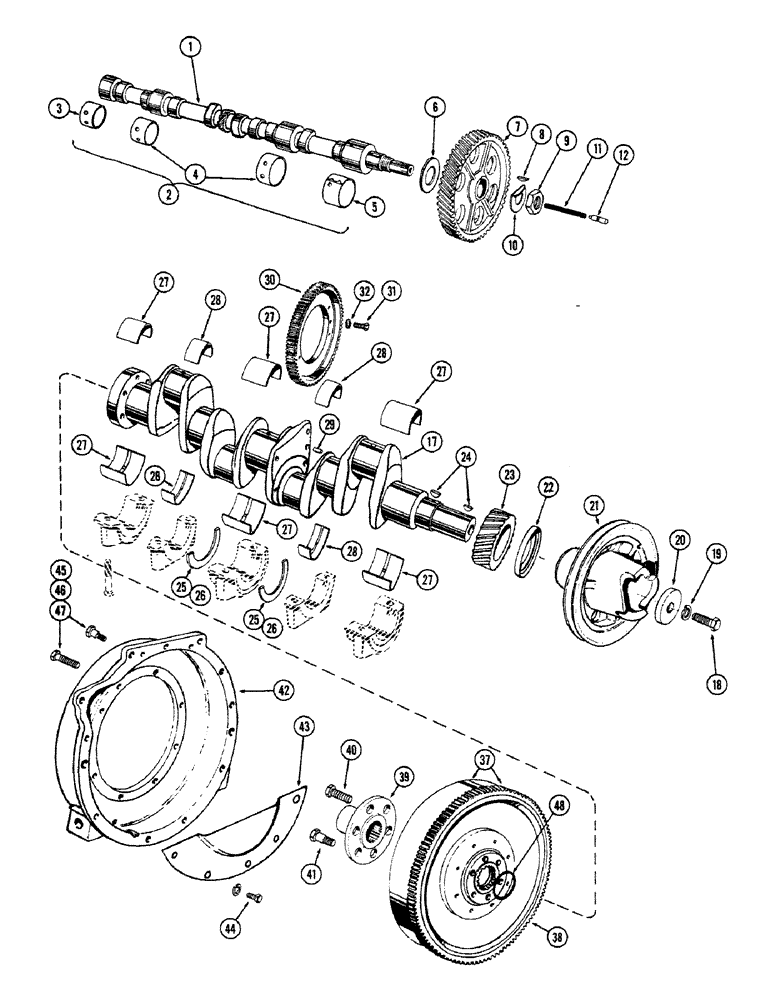

Запчасти Case IH 1010 (384) - CAMSHAFT, 301 DIESEL ENGINE (10) - ENGINE

1

A23495

CAMSHAFT

- engine

1шт.

2

A23577

KIT

BUSHING KIT - camshaft (Set of 4)

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (Order A23577)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, 2nd & 3rd (Order A23577)

2шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, 1st. (Order A23577)

1шт.

6

A21017

WASHER

- thrust, camshaft

1шт.

7

A22604

GEAR

- camshaft

1шт.

8

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Gear to camshaft #18, 1/4" x 1 1/8"

1шт.

9

O971AB

X

NUT - retaining, cam gear

1шт.

10

O970AB

X

LOCK - nut, cam gear

1шт.

11

O9726AB

X

SPRING - thrust plunger

1шт.

12

O9725AB

X

PLUNGER - thrust, camshaft

1шт.

17

A22578

CRANKSHAFT - engine

1шт.

18

O10282AB

X

SCREW - cap, drive pulley, crankshaft

1шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Crankshaft 5/8"

1шт.

20

A23229

WASHER

- drive pulley, crankshaft

1шт.

21

F1215

PULLEY - drive, fan & generator, crankshaft

1шт.

22

A23433

OIL SEAL

- oil, crankshaft front

1шт.

23

O9707AB

X

GEAR - crankshaft

1шт.

24

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft gear & pulley #C, 5/16" x 1 1/8", HT

2шт.

25

O9705AB

X

WASHER - thrust, crankshaft brg. (Std. size)

2шт.

26

A7204

WASHER

- thrust, crankshaft brg. (+.006")

2шт.

27

4706AA

X

LINER KIT - c'shaft brg. (Set of 2) (Wide, std. size)

3шт.

27

A7182

KIT

LINER KIT - c'sft. brg. (Set of 2) (Wide, -.002")

3шт.

27

A7188

BEARING LINER

LINER KIT - c'sft. brg. (Set of 2) (Wide, -.010")

3шт.

27

A7194

KIT

LINER KIT - c'sft. brg. (Set of 2) (Wide, -.020")

3шт.

27

A7200

KIT

LINER KIT - c'sft. brg. (Set of 2) (Wide, -.030")

3шт.

28

A20394

LINING

LINER KIT - c'sft. brg. (Set of 2) (Narrow, std. size)

2шт.

28

A20579

LINING

LINER KIT - c'sft. brg. (Set of 2) (Narrow, -.002")

2шт.

28

A20582

LINING

LINER KIT - c'sft. brg. (Set of 2) (Narrow, -.010")

2шт.

28

A20585

KIT

LINER KIT - c'sft. brg. (Set of 2) (Narrow, -.020")

2шт.

28

A20588

KIT

LINER KIT - c'sft. brg. (Set of 2) (Narrow, -.030")

2шт.

29

A8134

PIN

- dowel, balancer drive gear, crankshaft

1шт.

30

A22577

X

GEAR - drive, balancer, crankshaft

1шт.

31

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - mtg., drive gear, crankshaft

4шт.

32

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, , Crankshaft Ext Csk Tooth, 3/8"

4шт.

37

A7963

FLYWHEEL ASSY. - engine crankshaft, housing

1шт.

38

O9830AB

X

GEAR - ring, flywheel, housing

1шт.

39

F3088

HUB SHAFT - engine output, flywheel and housing

1шт.

40

F7663

BOLT - hub & flywheel to crankshaft, housing

4шт.

41

F7662

BOLT - dowel, hub & flywheel to c'sft., housing

2шт.

42

A8670

HOUSING - flywheel

1шт.

43

A7081

BEARING

SHIELD - dust, housing, flywheel

1шт.

44

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F., hex., flywheel and housing

4шт.

45

A20108

BOLT - clutch hsg. to cyl. block, flywheel

2шт.

46

A32607

STEP BOLT

- dowel, hsg. to block, long, flywheel

1шт.

47

A32608

STEP BOLT

BOLT - dowel, hsg. to block, short, flywheel

1шт.

48

O10035AB

X

"O" RING - flywheel to crankshaft, housing

1шт.
