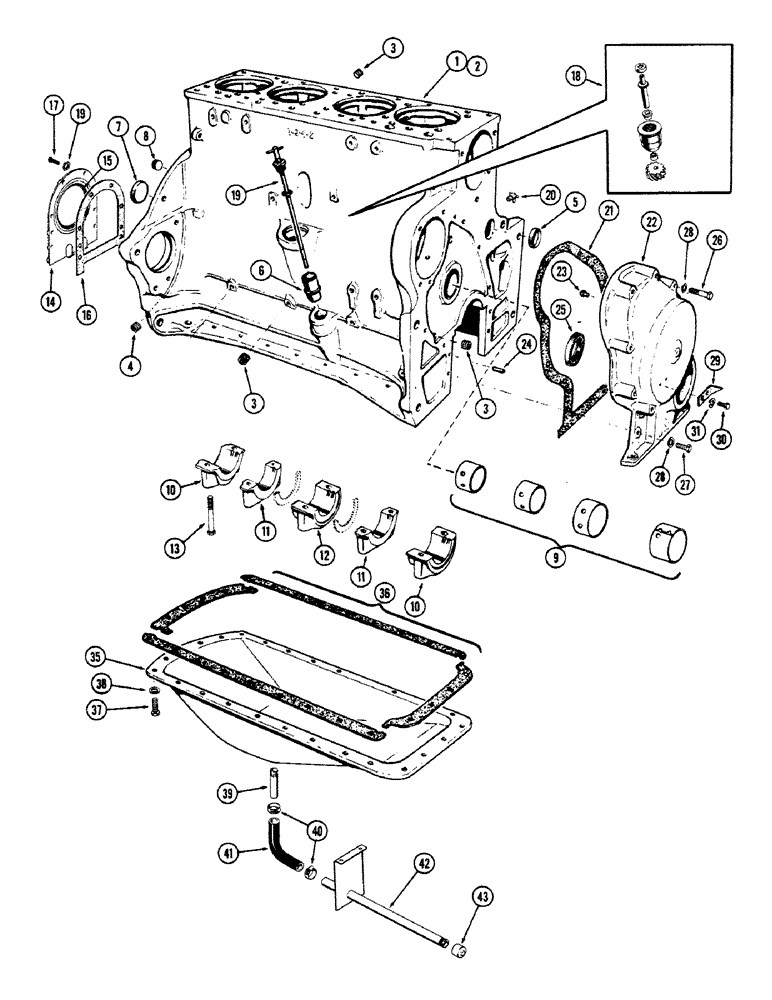

Запчасти Case IH 1010 (382) - CYLINDER BLOCK ASSEMBLY, 301 DIESEL ENGINE (10) - ENGINE

1

A40361

SHORT ENGINE

BLOCK ASSY. - cylinder (Short) (Inc. stripped block, conn. rods and liners, rear seal and retainer, pistons & rings & pins, cylinder sleeves & "O" rings, crankshaft, crankshaft brg. liners and balancer gear)

1шт.

2

A23494

BLOCK

ASSY. - cylinder (Stripped)

1шт.

3

221-1843

PLUG

- pipe, 3/8" hex. socket hd.

3шт.

4

221-41

PLUG

- pipe, 1/8" slotted headless

2шт.

5

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup, frt. water gallery

1шт.

6

A20714

X

SOCKET - oil level gauge

1шт.

7

A24361

PLUG

- cup, rear camshaft hole

1шт.

8

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, 1" sq. socket hd.

1шт.

9

A23577

KIT

BUSHING KIT - camshaft (Set of 4)

1шт.

10

A24941

CAP

- brg., crankshaft (Wide)

2шт.

11

A24942

CYLINDER END CAP

CAP - brg., crankshaft (Narrow)

2шт.

12

A24943

CAP

- brg., crankshaft (Thrust)

1шт.

13

O9706AB

SCREW - cap, brg., cap

10шт.

14

A32182

RETAINER

ASSY. - rear, crankshaft

1шт.

15

A23085

OIL SEAL

- rear crankshaft

1шт.

16

A32830

GASKET

- rear retainer

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

18

A33610

DRIVE

ASSY. - tach. (Not used in this appl.)

1шт.

19

A20739

GAUGE

- oil level bayonet

1шт.

20

A23656

COCK, DRAIN

VALVE - drain, cyl. block

1шт.

21

A33018

GASKET

- timing gear cover

1шт.

22

A20718

COVER ASSY. - timing gear

1шт.

23

O9754AB

BUTTON - thrust, timing cover

2шт.

24

O9710AB

PIN - dowel, timing cover

2шт.

25

A23433

OIL SEAL

- oil, front crankshaft

1шт.

26

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N.C., hex.

8шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

28

92-6

LOCK WASHER,3/8"

10шт.

29

A21362

CLIP

POINTER - timing

1шт.

30

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

31

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

LOCKWASHER - 1/4" int.-ext. Shakeproof

2шт.

35

A23023

PAN - oil, engine

1шт.

36

A7616

GASKET KIT

- oil pan

1шт.

37

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

26шт.

38

92-6

LOCK WASHER,3/8"

oil pan 3/8"

26шт.

39

221-193

PIPE,Nipple, 1/2" NPT x 3 1/2"

NIPPLE - pipe, 1/2" P.T. x 3-1/2", oil pan

1шт.

40

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" x 1-3/4", oil pan

2шт.

41

F9984

HOSE - drain, oil, pan

1шт.

42

F79826

PIPE & SUPPORT - oil drain, pan

1шт.

43

221-525

CAP,1/2" NPT

- pipe, 1/2" rd. P.T., oil pan

1шт.
