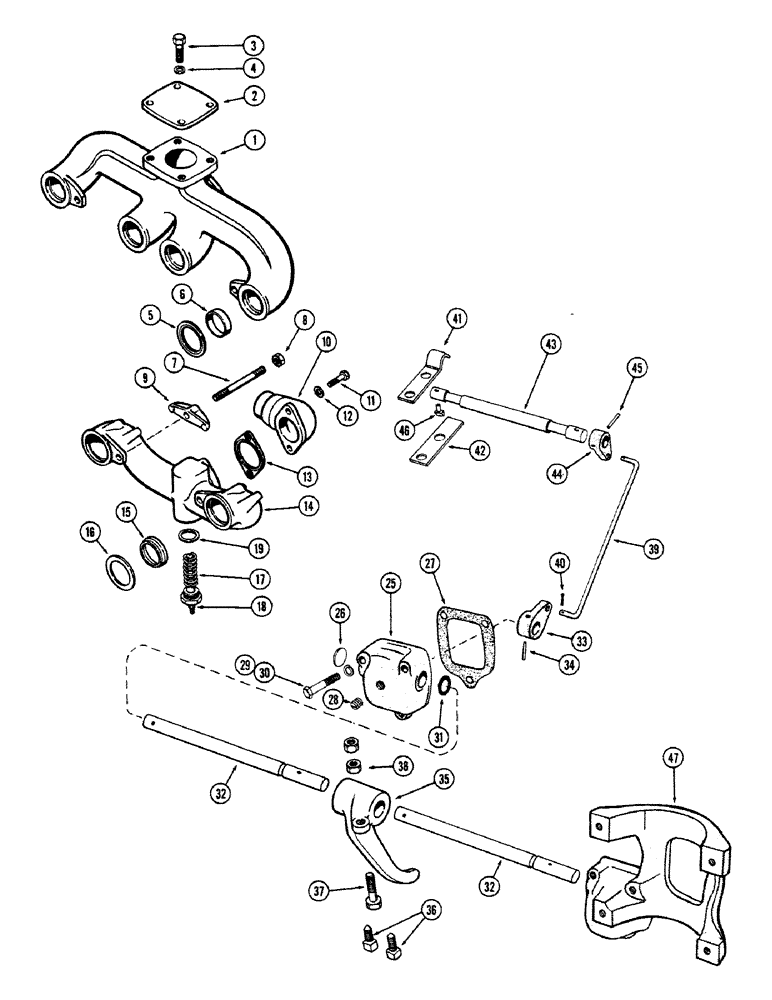

Запчасти Case IH 1010 (376) - INTAKE AND EXHAUST MANIFOLD, 301 DIESEL ENGINE (10) - ENGINE

1

A20385

MANIFOLD - exhaust

1шт.

2

A20387

COVER - outlet, manifold

1шт.

3

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F., hex.

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

A11888

MANIFOLD GASKET

- exhaust manifold

4шт.

6

A21056

CAP

FERRULE - exhaust manifold

4шт.

7

O9817AB

X

STUD - int. & exh. manifold

4шт.

8

25-117

NUT,7/16"-20, G5

- 7/16" N.F., hex.

4шт.

9

A24368

CLAMP

- int. & exh. manifold

4шт.

10

A21007

ELBOW - intake manifold

1шт.

11

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

A21055

MANIFOLD GASKET

- int. manifold elbow

1шт.

14

A21005

MANIFOLD - intake

1шт.

15

A21053

BUSHING,55.5mm ID x 57.15mm OD x 12.7mm L

FERRULE - intake manifold

2шт.

16

A21054

MANIFOLD GASKET

- intake manifold

2шт.

17

A24396

X

HEATER ASSY. - manifold (12 volt)

1шт.

18

129-503

NUT,1/4"-20, Brass

1шт.

19

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.

25

6324A

HOUSING - decompressor shaft prior, Start Serial: 8262501

1шт.

26

41-12

PLUG,Exp, 3/4"

- 3/4" welch, decompressor prior, Start Serial: 8262501

1шт.

27

A22939

GASKET

- decompressor housing prior, Start Serial: 8262501

2шт.

28

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/8" slotted hd., decompressor prior, Start Serial: 8262501

2шт.

29

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16" x 1-3/4" N.C., hex., decompressor prior, Start Serial: 8262501

4шт.

30

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Decompressor Hex, 5/16"-18 x 1", G5, Full Thd prior, Start Serial: 8262501

2шт.

31

O9787AB

X

"O" RING - control shaft, decompressor prior, Start Serial: 8262501

2шт.

32

O9785AB

SHAFT - decompressor, intermediate prior, Start Serial: 8262501

2шт.

33

6418A

LEVER, decompressor prior, Start Serial: 8262501

2шт.

34

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Decompressor 3/16" x 1", Slotted prior, Start Serial: 8262501

2шт.

35

6325A

LEVER - hand, decompressor prior, Start Serial: 8262501

1шт.

36

O9788AB

X

SCREW - set, hand lever, decompressor prior, Start Serial: 8262501

2шт.

37

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Decompressor Hex, 1/4"-20 x 1", G5 prior, Start Serial: 8262501

1шт.

38

25-104

NUT,1/4"-20, G5

Decompressor 1/4"-20, G5 prior, Start Serial: 8262501

1шт.

39

O9790AB

LINK - control, decompressor prior, Start Serial: 8262501

2шт.

40

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) , Decompressor 1/16" x 5/8" prior, Start Serial: 8262501

4шт.

41

O9782AB

BRACKET - shaft, decomp. top prior, Start Serial: 8262501

4шт.

42

09783AB

BRACKET - shaft, decomp. lower prior, Start Serial: 8262501

4шт.

43

A23096

SHAFT ASSY. - decompressor prior, Start Serial: 8262501

2шт.

44

6418A

LEVER - shaft, decompressor prior, Start Serial: 8262501

1шт.

45

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Decompressor 3/16" x 1", Slotted prior, Start Serial: 8262501

1шт.

46

A23095

AXLE PIN

PIN - trip decompressor prior, Start Serial: 8262501

2шт.

47

A22183

HOUSING & BRACKET - decompressor & final filter prior, Start Serial: 8262501

1шт.
