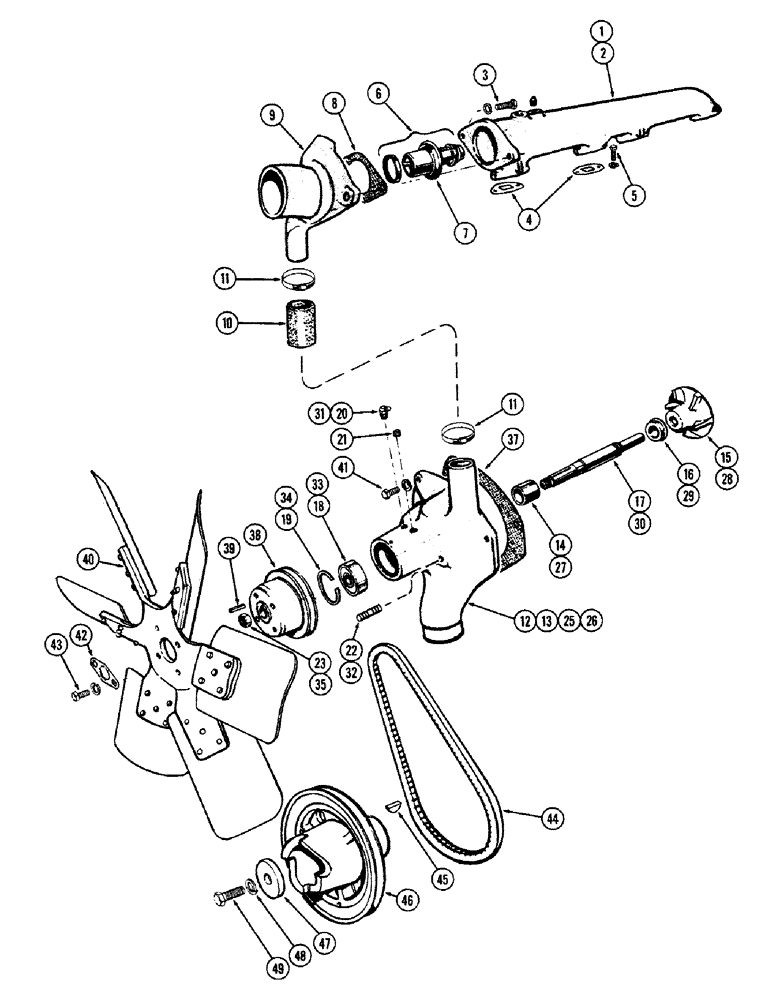

Запчасти Case IH 1010 (374) - ENGINE COOLING SYSTEM, 301 DIESEL AND 284 SPARK IGNITION (10) - ENGINE

1

6460A

MANIFOLD - water (Combine S/N 8262501 & after)

1шт.

2

A21031

MANIFOLD

- water (Prior combine S/N 8262501)

1шт.

3

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

8шт.

4

O9804AB1

X

GASKET - water manifold

4шт.

5

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.F., hex. hd.

2шт.

6

O10716AB

X

THERMOSTAT - temperature (187 degrees to 202 degrees)

1шт.

7

O10717AB

X

GASKET - termostat

1шт.

8

O10715AB

X

GASKET - thermostat housing

1шт.

9

A20374

HOUSING

- thermostat

1шт.

10

O10720AB

X

HOSE - water, by-pass

1шт.

11

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, by-pass (1-3/16' x 1-3/4")

2шт.

12

A9768

PUMP

ASSY. - water (Combine S/N 8262501 & after)

1шт.

13

A11496

BODY

ASSY. - pump

1шт.

14

O9798AB

X

BUSHING - pump body

1шт.

Part of Repair Kit, P/N A21726

1шт.

15

6464A

X

IMPELLER - pump

1шт.

Part of Repair Kit, P/N A21726

1шт.

16

A24995

SEAL

- pump shaft

1шт.

Part of Repair Kit, P/N A21726

1шт.

17

O10721AB

SHAFT

- pump

1шт.

Part of Repair Kit, P/N A21726

1шт.

18

O7086AB

X

BEARING - pump shaft

1шт.

Part of Repair Kit, P/N A21726

1шт.

19

O7084AB

X

RETAINER - shaft bearing

1шт.

Part of Repair Kit, P/N A21726

1шт.

20

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube, 1/8" drive x 67-1/2 degree

1шт.

21

221-1843

PLUG

- pipe, 3/8" hex. sckt. hd.

1шт.

22

A7391

STUD

- generator adj. strap

1шт.

23

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - jam, 5/8" N.F., hex.

1шт.

25

A23309

X

PUMP ASSY. - water (Prior Combine S/N 8262501)

1шт.

26

A11496

BODY

ASSY. - pump, water

1шт.

27

O9798AB

X

BUSHING - pump shaft

1шт.

28

6464A

X

IMPELLER - pump

1шт.

29

A24995

SEAL

- pump shaft

1шт.

30

O10721AB

SHAFT

- pump

1шт.

31

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube, 1/8" drive x 67-1/2 degree

1шт.

32

A7391

STUD

- generator adj. strap

1шт.

33

O7086AB

X

BEARING - pump shaft

1шт.

34

O7084AB

X

RETAINER - shaft bearing

1шт.

35

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - jam, 5/8" N.C., hex.

1шт.

A21726

REPAIR KIT

- pump, includes: Ref. 14, 15, 16, 17, 18, 19, 37, 39 & 42

1шт.

37

O9797AB

GASKET

- water pump

1шт.

Part of Repair Kit, P/N A21726

1шт.

38

A11443

PULLEY - fan

1шт.

39

O6073AB

X

KEY - pump and fan shaft

1шт.

Part of Repair Kit, P/N A21726

1шт.

40

F9363

FAN - radiator

1шт.

41

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

42

O3155AB

X

LOCK - fan shaft nut

1шт.

Part of Repair Kit, P/N A21726

1шт.

43

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

44

A11444

BELT,0.53" W x 50.50" L

Fan and Generator 0.53" W x 50.50" L

1шт.

45

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft pulley #C, 5/16" x 1 1/8", HT

1шт.

46

F1215

PULLEY - fan and generator drive

1шт.

47

A23229

WASHER

- thrust, drive pulley

1шт.

48

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

49

O10282AB

X

SCREW - cap, gen. & fan drive pulley

1шт.
