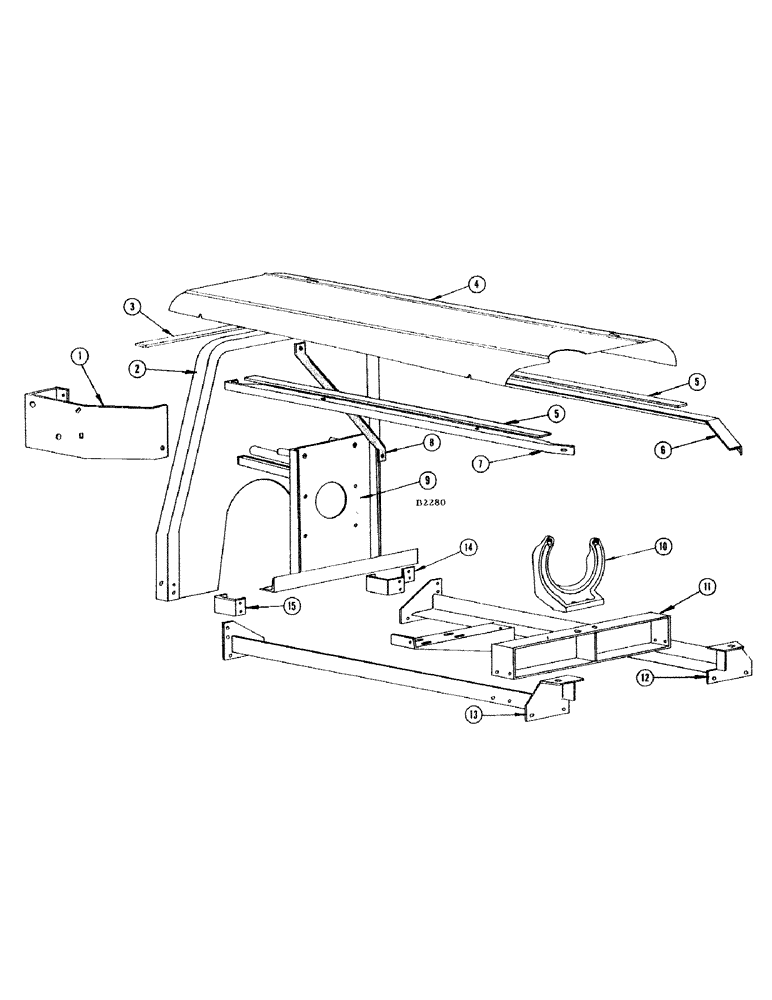

Запчасти Case IH 1010 (372) - MODEL H-318 ENGINE, ENGINE HOOD AND SUPPORTS (10) - ENGINE

1

F12691

SUPPORT - pivot air intake

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

2шт.

BOLT - 3/8" x 7/8" N.C. hex. (13-614) L.W. (92-6)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) dbl. nut (25-116)

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) wing nut (129-419) L.W. (192-20) and fl. wshr. (195-521)

2шт.

2

F86748

FIREWALL

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

4шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

1шт.

3

F12933

SEAL - engine hood, L.H.

1шт.

4

F86777

HOOD - engine

1шт.

5

F12733

SEAL - engine hood

2шт.

6

F86756

ANGLE - hood support, front

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

2шт.

7

F86757

ANGLE - hood support, rear

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

2шт.

8

F12688

BRACE - firewall

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) L.W. (92-6)

1шт.

9

F86739

MOUNT - engine, left

1шт.

10

F12649

BRACKET - right mounting

1шт.

BOLT - 3/8" x 3-1/2" N.C. hex. (13-656) L.W. (92-6)

1шт.

BOLT - 3/8" x 3-1/4" N.C. hex. (13-652) L.W. (92-6)

3шт.

11

F86737

MOUNT - engine, right

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

2шт.

WASHER - 3/8" flat (195-25) L.W. (92-6)

2шт.

12

F86742

RAIL - engine mounting, front

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

WASHER - 3/8" flat (195-25) L.W. (92-6)

2шт.

BOLT - 7/16" x 1" N.F. hex. (14-716) nut (25-117)

1шт.

13

F86741

RAIL - engine mounting, rear

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

WASHER - 3/8" flat (195-25) L.W. (92-6)

2шт.

BOLT - 7/16" x 1" N.F. hex. (14-716) nut (25-117)

1шт.

14

F11187

BRACKET - front L.H. motor hood

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)

2шт.

15

F10702

BRACKET - rear L.H. motor hood

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)

2шт.
