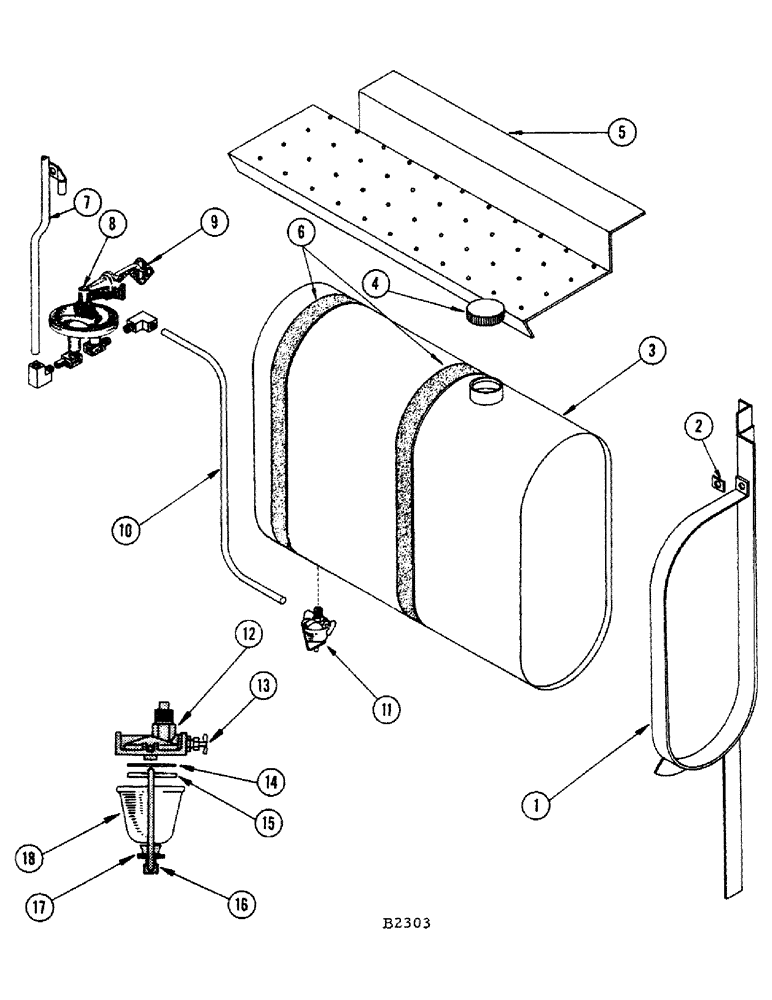

Запчасти Case IH 1010 (370) - MODEL H-318 ENGINE, FUEL TANK (10) - ENGINE

1

F79282

SUPPORT - fuel tank

2шт.

2

F8190

WASHER - fuel tank strap

2шт.

3

F79390

TANK - fuel

1шт.

4

F6541

CAP

- fuel tank

1шт.

5

F11084

STEP - fuel tank

1шт.

BOLT - 5/16" x 1/2" N.F. hex. (114-108) nut (129-122)

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

2шт.

6

F11082

CUSHION - felt, fuel tank

2шт.

7

F12692

LINE - fuel, Serial Range: pump-carburetor

1шт.

NUT - 5/16" imp #61-F (222-663)

2шт.

SLEEVE - 5/16" imp #60-F (222-653)

2шт.

8

F86911

PUMP - fuel, with gasket

1шт.

BOLT - 3/8" x 1-3/8" N.C. hex. (13-622) L.W. (92-6)

2шт.

9

F12664

GASKET - fuel pump

1шт.

10

F12713

LINE - fuel, Serial Range: strainer-pump

1шт.

CONNECTOR - 5/16" O.D. x 1/8" NPT imp #68-FL (222-24)

1шт.

ELBOW - 5/16" O.D. x 1/8" NPT imp #69-F (222-619)

1шт.

O7836HT

CLIP - fuel line (Not shown)

2шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)

2шт.

11

O3990AB1

X

STRAINER - fuel, complete

1шт.

12

A11214

HEAD

1шт.

13

A11205

VALVE

- needle

1шт.

14

A11211

FILTER SCREEN

SCREEN

1шт.

15

A11208

GASKET

- cork

1шт.

16

A11212

BAIL

1шт.

17

A11210

ADJUSTER

CAP AND NUT

1шт.

18

A11209

BOWL

- glass

1шт.
