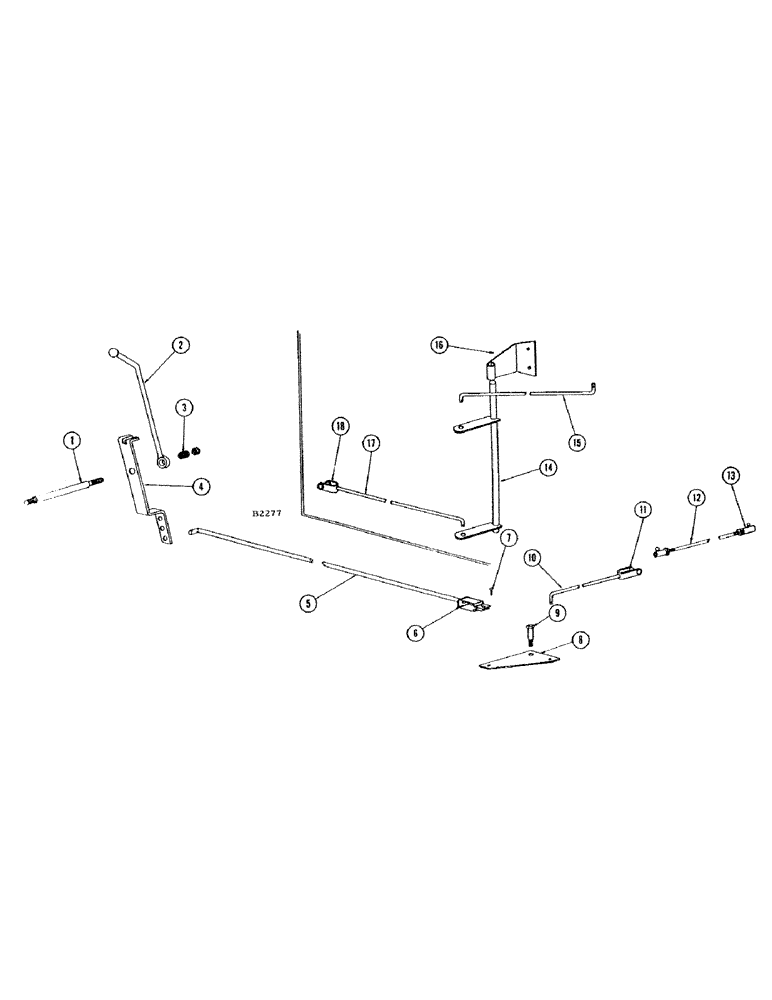

Запчасти Case IH 1010 (366) - MODEL H-318 ENGINE, THROTTLE CONTROL LINKAGE (10) - ENGINE

1

F8172

SHAFT - pivot

1шт.

2

F11493

LEVER - throttle control

1шт.

3

VT2852

SPRING - throttle control

1шт.

4

F8199

ARM - throttle control

1шт.

5

F12708

ROD - throttle (Grain bin)

1шт.

NUT - 1/4" N.F. hex. (25-114)

1шт.

PIN - 3/32" x 5/8" cotter (132-25)

1шт.

6

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - for ref. 5

1шт.

7

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis, for ref. 6

1шт.

PIN - 1/16" x 1/2" cotter (132-5)

1шт.

8

F79438

BELLCRANK - throttle

1шт.

9

O1444CS

BOLT - shoulder (For bellcrank)

1шт.

NUT - 3/8" N.F. hex. (25-116) L.W. (92-6)

1шт.

10

F12685

ROD - throttle, Serial Range: bellcrank-carburetor

1шт.

NUT - 1/4" N.F. hex. (25-114)

2шт.

PIN - 3/32" x 1/2" cotter (132-24) L.W. 1/4" (92-4)

1шт.

11

F12965

CLEVIS - for ref. 10

1шт.

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis

1шт.

WASHER - 1/4" standard flat (195-518)

1шт.

PIN - 1/16" x 1/2" cotter (132-5)

1шт.

12

F12690

LINKAGE - throttle, Serial Range: carburetor-governor

1шт.

NUT - 1/4" N.F. hex. (129-121) L.W. (193-44)

2шт.

13

G45711

X

JOINT - ball

2шт.

NUT - 1/4" N.F. hex. jam (129-161)

2шт.

WASHER - 1/4" standard flat (195-4)

2шт.

14

F86228

PIVOT - throttle rod (Bagger)

1шт.

15

F12738

ROD - throttle, rear (Bagger)

1шт.

16

F12204

SUPPORT - lower, throttle pivot (Bagger)

1шт.

17

F12200

ROD - throttle, front (Bagger)

1шт.

NUT - 1/4" N.F. hex. (25-114)

1шт.

18

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - for ref. 17

1шт.
