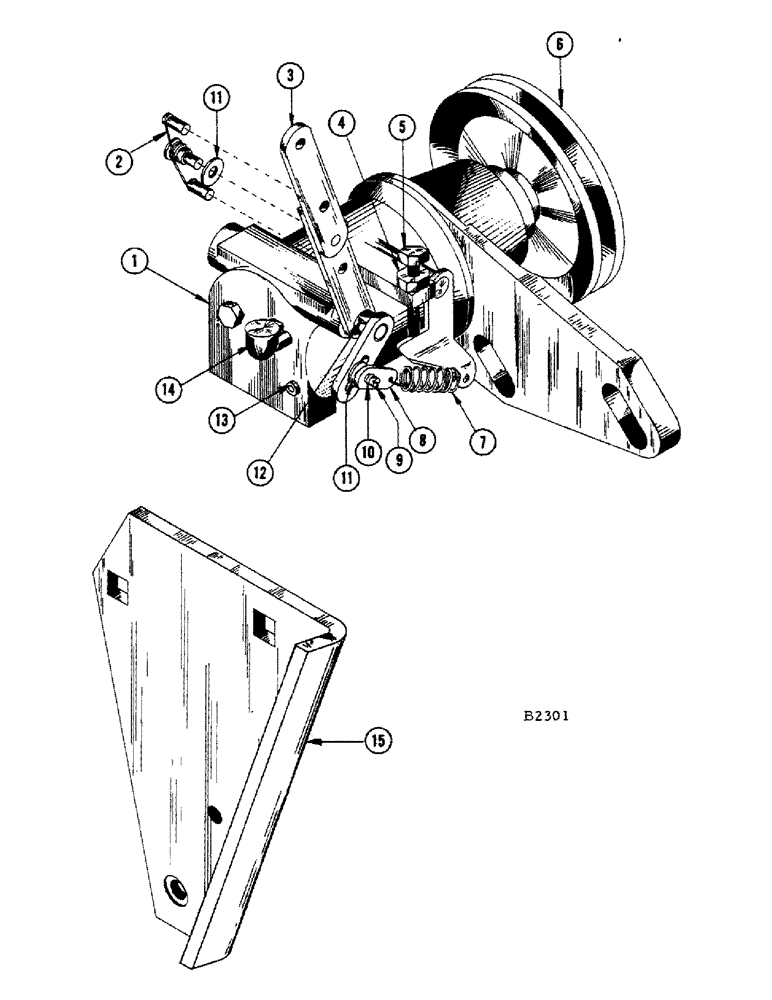

Запчасти Case IH 1010 (365A) - MODEL H-318 ENGINE, GOVERNOR (10) - ENGINE

1

F87560

GOVERNOR AND PULLEY - (Replaces F86747 when stocks are exhausted)

1шт.

F86747

GOVERNOR AND PULLEY - (Replaced by F87560 when stocks are exhausted)

1шт.

2

F19653

SPRING - return

1шт.

3

F86933

LEVER

THROTTLE LEVER

1шт.

4

425-154

JAM NUT,Jam, 1/4"-28, G5

Adjusting level (For ref. 5) Jam, 1/4"-28, G5

1шт.

5

F19650

SCREW - adjusting

1шт.

6

F19654

PULLEY

1шт.

84-45

SET SCREW,Hex Soc, 1/4"-28 x 5/16"

SCREW - 5/16" N.C. #2 thrd. set (Pulley)

1шт.

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, , Pulley 5/32" x 1 1/4", Slotted

1шт.

7

F13339

SPRING - (Replaces F12938 when stocks are exhausted)

1шт.

F12938

SPRING - (Replaced by F13339 when stocks are exhausted)

1шт.

8

F19652

LINK - throttle lever spring

1шт.

9

F19651

PIN - selector

1шт.

10

A7111

SNAP RING,#25, Ext

Ring, Snap, (Truarc) #25, Ext

1шт.

11

195-518

WASHER,1/4", SAE

- 1/4" flat (For ref. 9)

3шт.

193-28

LOCK WASHER,Int Tooth, 1/4"

LOCKWASHER - 1/4" (For ref. 9)

3шт.

12

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

13

F21182

OILER - oil level (Replaces F12937 when stocks are exh.)

1шт.

F12937

OILER - oil level (Replaced by F21182 when stocks are exhausted)

1шт.

14

F21181

NECK FILLER

FILLER - oil (Replaces F12936 when stocks are exh.)

1шт.

F12936

FILLER - oil (Replaced by F21181 when stocks are exh.)

1шт.

111-321

SQUARE BOLT,Short Nk, 3/8" - 24 x 1 1/4", Gr 5

BOLT - 3/8" x 1-1/4" rhd. sq. nk.

2шт.

195-25

WASHER,3/8"

- flat 3/8"

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

15

F13850

PLATE - governor (Replaces F12665 when stocks are exh.)

1шт.

F12665

PLATE - governor (Replaces by F13850 when stocks are exh.)

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- 3/8" x 4-1/2" N.C. hex.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

F12672

"V" BELT - governor drive (Not shown)

1шт.

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, #5-1

1шт.
