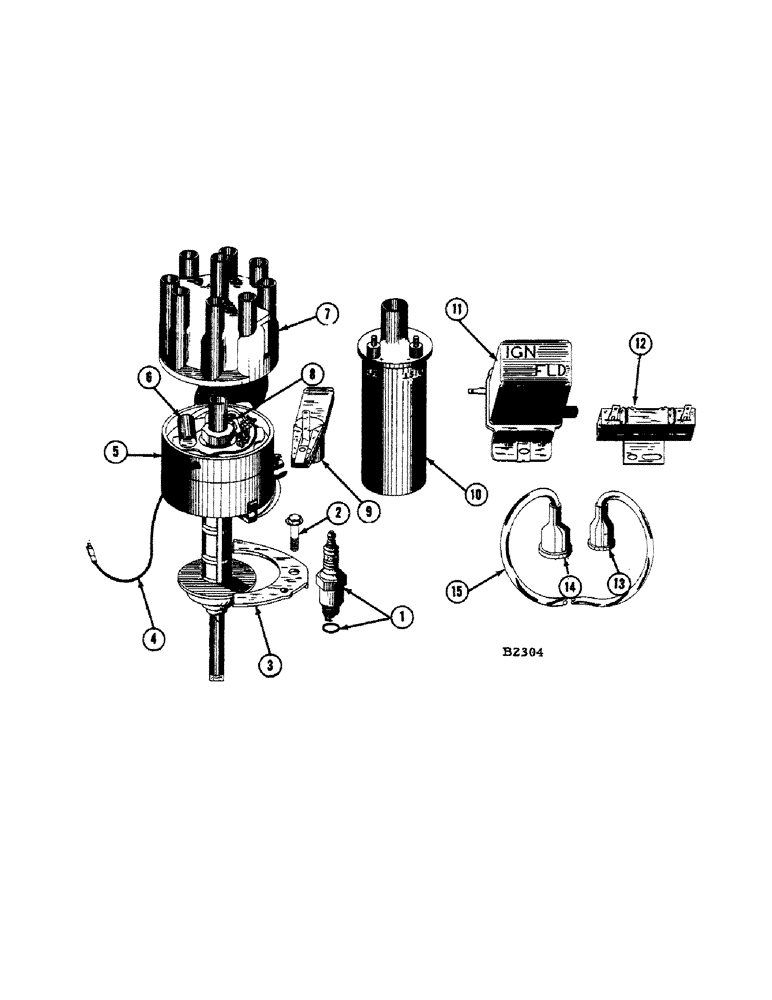

Запчасти Case IH 1010 (362) - MODEL H-318 ENGINE, IGNITION (10) - ENGINE

1

M20018

SPARK PLUG - with gasket

8шт.

2

F86904

SCREW - clamp, with washer

1шт.

3

F12901

CLAMP - ignition distributor

1шт.

4

F86922

CABLE - primary, ignition coil

1шт.

5

F86899

DISTRIBUTOR - ignition (Less cap and rotor)

1шт.

F12900

GASKET - distributor (Not shown)

1шт.

6

F86902

X

CONDENSER

1шт.

7

F86900

CAP - distributor

1шт.

F86910

CABLE - spark plug ignition (Consists of 1 cable (44-1/2") 1 terminal, 1 nipple and 1 grommet) (Not shown)

8шт.

8

F20510

BREAKER

CONTACT - distributor (Replaces F87108 when stocks are exhausted)

1шт.

F87108

X

BREAKER CONTACT - distributor (Replaces by F20510 when stocks are exhausted)

1шт.

9

F86901

ROTOR

- distributor

1шт.

10

F86920

COIL - ignition

1шт.

11

F12687

REGULATOR

- voltage

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex. and jam nut (25-154)

2шт.

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- 3/8" x #10 rhd. mach. and L.W. #10 (92-3)

1шт.

O1120CS

CUSHION - voltage regulator (Not shown)

2шт.

12

F86921

RESISTOR - coil, package

1шт.

13

F19785

NIPPLE, LUBE

NIPPLE - distributor

9шт.

14

F12903

NIPPLE, LUBE

NIPPLE - coil

1шт.

15

F86905

CABLE - secondary, ignition coil

1шт.

F86908

TERMINAL - secondary cable (Distributor end) not shown

1шт.
