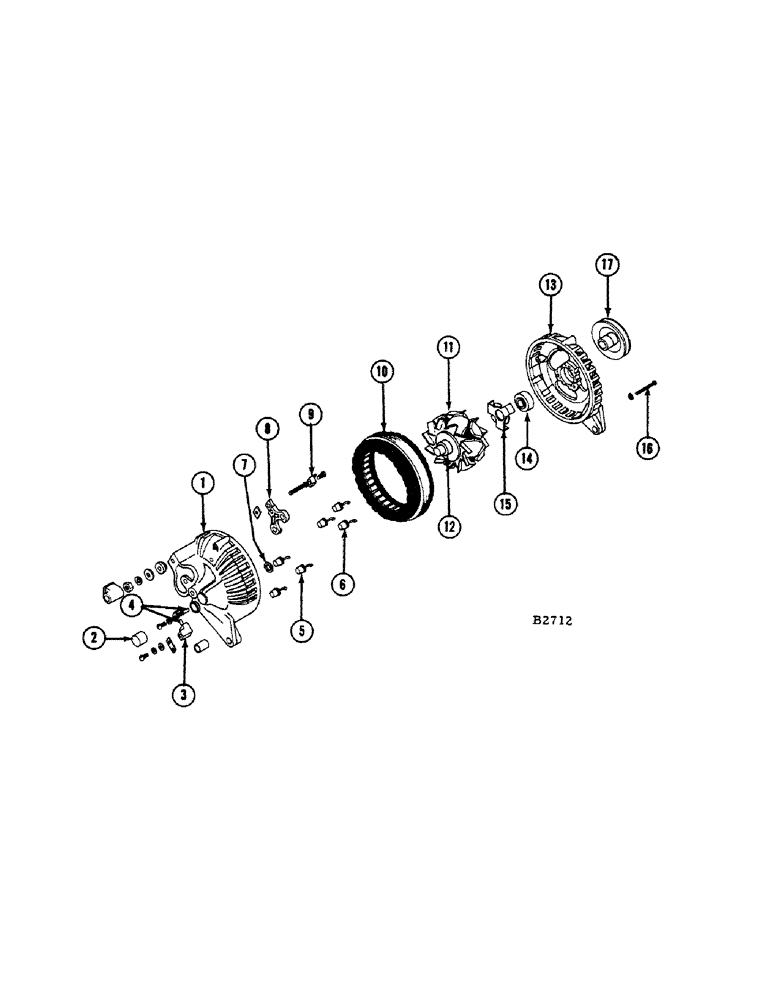

Запчасти Case IH 1010 (362[A]) - MODEL H-318 ENGINE, PARTS FOR ALTERNATOR (10) - ENGINE

F86746

ALTERNATOR - (Chrysler 2098830)

1шт.

1

A41495

SHIELD - rectifier end

1шт.

2

A41494

BEARING - rectifier end shield

1шт.

3

A40386

HOLDER - insulated brush

1шт.

4

A40379

BRUSHES - package

1шт.

5

A40381

RECTIFIER - negative (Black)

3шт.

6

A40408

RECTIFIER - positive (Red)

3шт.

7

A40420

SPACER

- rectifier, heat sink

1шт.

8

A40404

SINK - rectifier heat

1шт.

9

A40419

CAPACITOR KIT

1шт.

10

A40400

STATOR

1шт.

11

A41496

X

ROTOR

1шт.

12

A41493

SLIP RING PACKAGE - (Includes grease retainer, retainer washer, rotor slip ring)

1шт.

13

A40405

SHIELD - drive end

1шт.

14

A40409

BEARING - drive end shield

1шт.

15

A40383

PLATE - bearing retaining

1шт.

16

A40382

SCREW - frame

3шт.

17

A40401

PULLEY

1шт.
