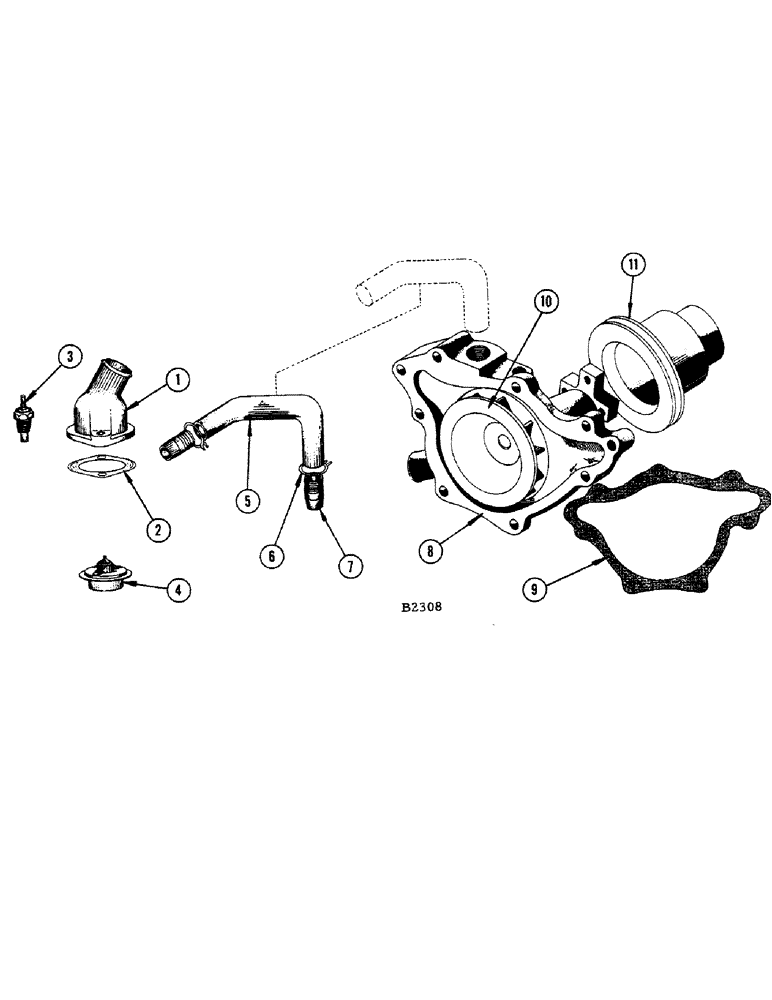

Запчасти Case IH 1010 (358) - MODEL H-318 ENGINE, THERMOSTAT AND HOUSING (10) - ENGINE

1

F1943

HOUSING - thermostat

1шт.

BOLT - 7/16" x 1-1/2" N.C. hex. (113-311)

2шт.

2

F12911

GASKET - thermostat housing

1шт.

3

F13156

SENDER UNIT

UNIT - temperatur sending

1шт.

4

F86914

THERMOSTAT - 180 degrees

1шт.

5

F12909

HOSE - water pump by-pass

1шт.

6

214-114

X,#19, 1 3/16", Spring

CLAMP - water pump by-pass hose, spring type

2шт.

7

F12908

NIPPLE - water pump by-pass

2шт.

8

F86912

PUMP - water

1шт.

NSS

NOT SOLD SEPARAT

BUSHING - pipe reducing, water pump

1шт.

F12904

GASKET - water pump (See ref. 9)

1шт.

F86913

KIT - water pump repair

1шт.

9

F12904

GASKET - water pump

1шт.

NSS

NOT SOLD SEPARAT

SEAL - water pump (Not shown)

1шт.

10

NSS

NOT SOLD SEPARAT

IMPELLER - water pump

1шт.

NSS

NOT SOLD SEPARAT

SHAFT AND BEARING - (Not shown), water pump

1шт.

11

F1936

PULLEY - fan, water pump

1шт.

F12793

V-BELT

"V" BELT - fan drive (Not shown), water pump

1шт.
