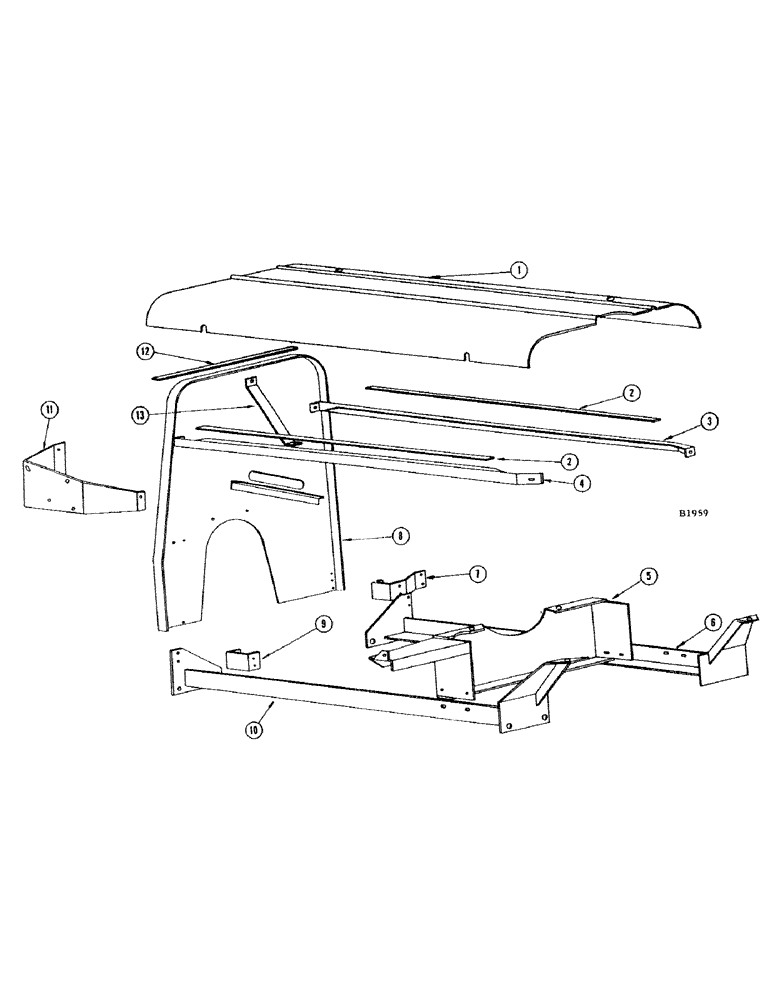

Запчасти Case IH 1010 (348) - MODEL GO 298 ENGINE, ENGINE HOOD AND SUPPORTS (10) - ENGINE

1

F79481

HOOD - engine

1шт.

2

F11280

SEAL - felt

2шт.

SEALER - EC rubberized cement (345-2)

1шт.

3

F79446

ANGLE - front, engine hood support

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

2шт.

4

F79451

ANGLE - engine hood support, rear

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

2шт.

5

F86134

MOUNT - front, motor

1шт.

BOLT - 1/2" x 2" N.F. hex. (14-832) nut (25-118)

2шт.

6

F86136

RAIL - engine mounting, front

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

BOLT - 5/8" x 2" N.F. hex. (14-1032) nut (25-1110)

1шт.

7

F11187

BRACKET - L.H. front, motor hood

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)

2шт.

8

F79449

FIREWALL - engine, L.H. end

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

1шт.

9

F10702

BRACKET - L.H. rear, hood support

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)

2шт.

10

F86135

RAIL - engine mounting, rear

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

BOLT - 5/8" x 2" N.F. hex. (14-1032) nut (25-1110)

1шт.

11

F12108

SUPPORT - pivot, air intake

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

2шт.

BOLT - 7/16" x 3/4" N.C. hex. (13-712) L.W. (92-7)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620)

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) wing nut (129-419)

2шт.

WASHER - 5/16" plain (195-521) nut (25-116)

2шт.

12

F11279

SEAL - felt

1шт.

13

F11186

BRACE - firewall support

1шт.

NUT - 9/16" N.F. hex. (25-119) L.W. (92-9)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

1шт.
