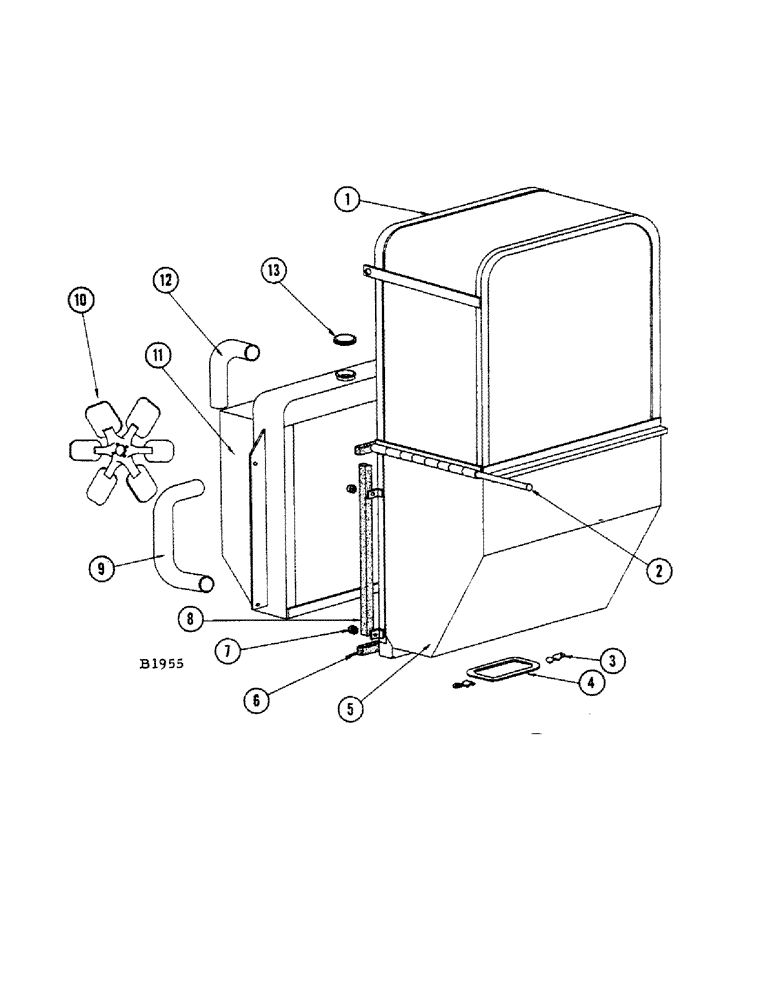

Запчасти Case IH 1010 (346) - MODEL GO 298 ENGINE, RADIATOR FRAME AND SCREEN (10) - ENGINE

1

F86171

SCREEN - air, radiator

1шт.

2

F9318

ROD - hinge

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

3

F7738

CLIP - access door

2шт.

45-410

RIVET,But Hd, 1/4" x 5/8"

- 1/4" x 5/8" rhd.

2шт.

4

F8077

DOOR - access, radiator stack

1шт.

5

F86138

STACK - radiator frame

1шт.

129-404

WING NUT,1/4"-20

NUT - 1/4" N.C. wing and L.W. (92-4)

2шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.

4шт.

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex. jam

8шт.

6

F12047

SEAL - top and bottom

2шт.

7

F10666

CUSHION - radiator bracket

4шт.

8

F12057

SEAL - side

2шт.

9

F12060

HOSE - bottom, radiator

1шт.

214-27

X

CLAMP - #13 hose

2шт.

10

F78927

FAN - radiator

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

and L.W. (92-5) Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

11

F12040

RADIATOR

1шт.

221-12

PLUG,Sq Hd, 1/4"-18

- 1/4" sq. hd. pipe

1шт.

12

F12059

HOSE - radiator inlet

1шт.

214-21

X

CLAMP - #10 hose

2шт.

13

F5922

CAP

- radiator

1шт.
