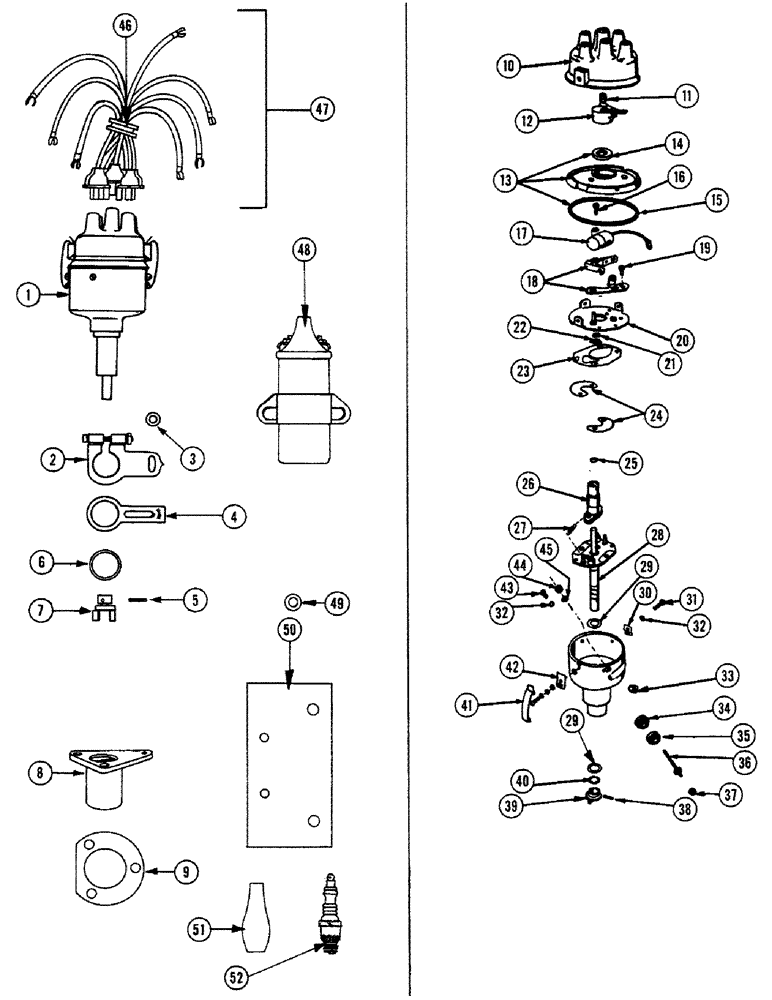

Запчасти Case IH 1010 (340) - MODEL GO 298 ENGINE, DISTRIBUTOR (10) - ENGINE

1

F86413

DISTRIBUTOR

- (Delco #1112612)

1шт.

2

A40755

ARM - distributor advance

1шт.

3

195-18

WASHER,1/4"

- (5/8" O.D. x 9/32" I.D. x 1/16") advance arm

1шт.

4

A40756

CONNECTOR,ELECTRIC

DIAL - distributor arm

1шт.

BOLT - 1/4" x 1/2" N.C. hex. (13-48) L.W. (92-8)

1шт.

5

B50342

PIN - distributor coupling

1шт.

6

VT4593

X

"O" RING - distributor sleeve

1шт.

7

B50636

COUPLING - distributor

1шт.

8

B50635

SLEEVE - distributor

1шт.

9

B50637

GASKET - distributor sleeve attaching

1шт.

10

F12344

CAP

- (Delco #824735), F86413 distributor

1шт.

11

NSS

NOT SOLD SEPARAT

BUTTON - carbon, distributor cap, F86413

1шт.

12

G44040

ROTOR

- (Delco #820445), F86413 distributor

1шт.

13

A25554

COVER - dust, F86413 distributor

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - dust cover, F86413 distributor

1шт.

15

NSS

NOT SOLD SEPARAT

GASKET - dust cover, F86413 distributor

1шт.

16

NSS

NOT SOLD SEPARAT

SCREW - condenser attaching, F86413 distributor

1шт.

17

G44042

CONDENSER

- (Delco #1869704), F86413 distributor

1шт.

18

F10714

POINT

S - set of contact (Delco #1855720), F86413 distributor

1шт.

19

NSS

NOT SOLD SEPARAT

SCREW - point adjusting, F86413 distributor

1шт.

20

A25526

PLATE - breaker, F86413 distributor

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - weight hold down attaching, F86413 distributor

2шт.

22

NSS

NOT SOLD SEPARAT

LOCKWASHER - weight hold down attaching nut, F86413 distributor

2шт.

23

A25530

PLATE - weight hold down, F86413 distributor

1шт.

24

A25529

WEIGHT, F86413 distributor

2шт.

25

NSS

NOT SOLD SEPARAT

WICK - felt, in cam, F86413 distributor

1шт.

26

A40749

CAM - advance and breaker, F86413 distributor

1шт.

27

A40748

SPRING - weight, F86413 distributor

2шт.

28

A40750

SHAFT AND WEIGHT PLATE, F86413 distributor

1шт.

29

D30006

WASHER

- spacer (Weight plate and shaft end), F86413 distributor

2шт.

30

NSS

NOT SOLD SEPARAT

SUPPORT - cap spring, F86413 distributor

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - cap spring, F86413 distributor

2шт.

32

NSS

NOT SOLD SEPARAT

LOCKWASHER - cap spring screw and breaker plate attaching screw, F86413 distributor

3шт.

33

221-1041

PLUG

PIPE - plug, F86413 distributor

1шт.

34

NSS

NOT SOLD SEPARAT

BUSHING - inside, terminal stud, F86413 distributor

1шт.

35

NSS

NOT SOLD SEPARAT

BUSHING - outside, terminal stud, F86413 distributor

1шт.

36

A25537

KIT

STUD - terminal, F86413 distributor

1шт.

37

NSS

NOT SOLD SEPARAT

NUT - terminal (Outside), F86413 distributor

1шт.

38

B50342

PIN - coupling attaching, F86413 distributor

1шт.

39

B50636

COUPLING - drive, F86413 distributor

1шт.

40

A25522

WASHER - shim (.005) shaft end, F86413 distributor

1шт.

41

A25531

SPRING - cap, F86413 distributor

1шт.

42

A25532

SUPPORT - cap spring and cover locator, F86413 distributor

1шт.

43

NSS

NOT SOLD SEPARAT

SCREW - breaker plate attaching, F86413 distributor

1шт.

44

NSS

NOT SOLD SEPARAT

NUT - terminal (Inside), F86413 distributor

1шт.

45

NSS

NOT SOLD SEPARAT

LOCKWASHER - terminal (Inside), F86413 distributor

1шт.

NSS

NOT SOLD SEPARAT

HOUSING, F86413 distributor

1шт.

46

B50385

WASHER - rubber (Spool 1-9/16" O.D.) For cable, F86413 distributor

1шт.

47

B50535

CABLE ASSEMBLY - distributor to spark plug coil, F86413 distributor

1шт.

48

F10711

COIL - ignition, F86413 distributor

1шт.

49

F12791

SPACER - coil mounting bracket, F86413 distributor

2шт.

50

B50571

BRACKET - ignition coil mounting, F86413 distributor

1шт.

51

B50564

COVER - spark plug, F86413 distributor

6шт.

52

F10710

PLUG - spark (Champion #J-6), F86413 distributor

6шт.
