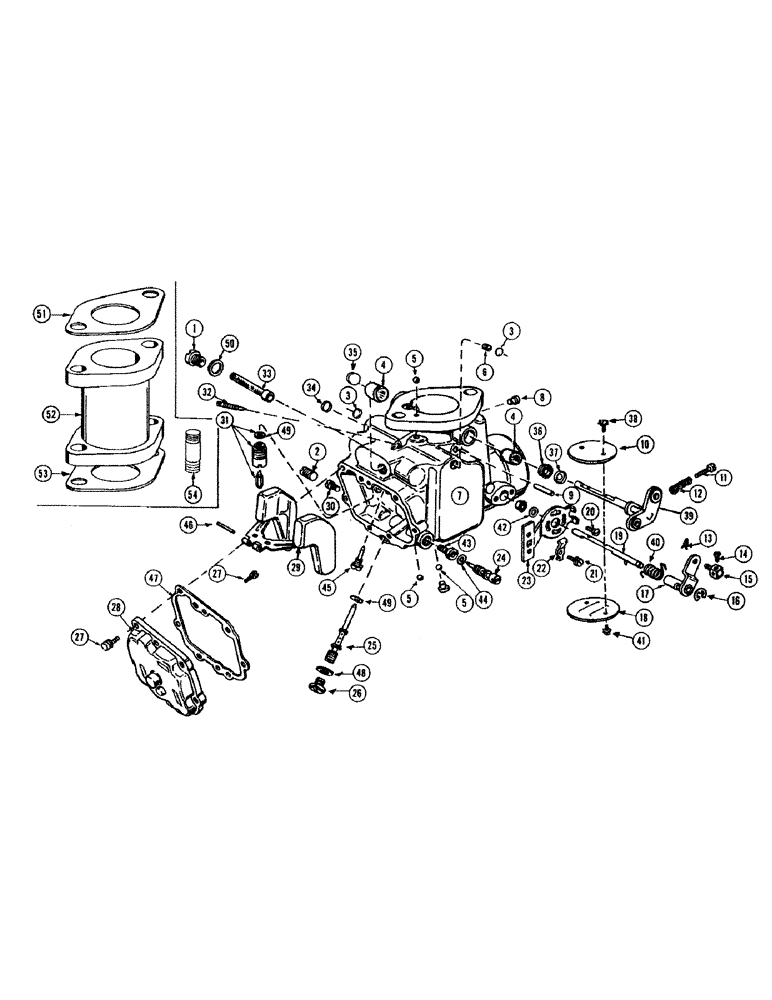

Запчасти Case IH 1010 (336) - MODEL GO 298 ENGINE, F86216 MARVEL-SCHEBLER CARBURETOR (10) - ENGINE

1

F12782

PLUG - fuel strainer retainer

1шт.

2

B59376

SCREW - (1/4" x 4" x 1/4" drill plug) bowl drain

1шт.

3

F12784

PLUG - expansion, 1-economizer drill and 1-bowl vent

2шт.

4

B51899

BEARING - needle

2шт.

5

B51786

PLUG - channel

3шт.

6

B51845

JET - economizer

1шт.

7

NSS

NOT SOLD SEPARAT

CARBURETOR - body assembly

1шт.

8

B51874

PLUG - 1-idle drilling and 1-nozzle air vent

2шт.

9

B51680

SCREW - (#8-32 x 3/4" fillister hd.) throttle stop

1шт.

10

B59372

FLY - throttle (1-11/16" dia.)

1шт.

11

B51862

PIN - throttle stop

1шт.

12

B51742

SPRING

- throttle stop screw

1шт.

13

B51877

SPLIT PIN

COTTER - choke swivel

1шт.

14

B51688

SCREW - (#8-32 x 5/16" slotted hex. hd.) choke swivel

1шт.

15

F12776

CHOKE - swivel

1шт.

16

B51867

WASHER - choke lever retainer (Tru-Arc)

1шт.

17

B51652

LEVER - throttle assembly

1шт.

18

B59380

FLY - choke

1шт.

B59379

LEVER - choke, assembly

1шт.

19

B51758

SHAFT - choke, assembly

1шт.

F12778

PACKING - choke

1шт.

20

B51686

SCREW - (#8-32 x 3/8" pan hd.) choke bracket

2шт.

21

B59373

SCREW - (#8-32 x 1/2" slotted hd.) choke clip

1шт.

B59374

SCREW - (#12-24 x 5/8" hex. hd. slot) throttle lever

1шт.

22

B51765

CLIP

- choke bracket

1шт.

23

B51767

BRACKET - choke

1шт.

F12777

BRACKET ASSEMBLY

1шт.

24

B51792

NEEDLE - main adjusting

1шт.

B59385

NEEDLE - main adjusting, assembly

1шт.

25

B51819

NOZZLE

1шт.

26

F12783

PLUG - nozzle

1шт.

27

B51691

SCREW - (#8-32 x 1/2" fillister hd.) bowl cover

7шт.

28

F12780

COVER - bowl

1шт.

29

B51777

FLOAT AND LEVER ASSEMBLY

1шт.

B51939

KIT - repair

1шт.

30

B51847

JET - minimum fuel restriction

1шт.

31

B51915

ASSEMBLY - match float valve seat

1шт.

32

B59386

SCREW - idle adjusting (Ny-lock)

1шт.

33

B51884

SCREEN ASSEMBLY

1шт.

34

B51852

CUP

RETAINER - choke shaft

1шт.

35

F12781

PLUG - throttle shaft hole

1шт.

36

B51810

PACKING - throttle

1шт.

37

F12779

RETAINER - throttle shaft packing

1шт.

38

B51690

SCREW - (#8-32 x 1/4" pan hd.) throttle fly

2шт.

39

B51666

THROTTLE SHAFT AND LEVER ASSEMBLY

1шт.

40

B51746

SPRING - choke return

1шт.

41

B51702

SCREW,#6 - 32 x 1/4"

- (#6-32 x 1/4" pan hd.) choke fly

2шт.

42

B51870

WASHER

- choke packing retainer

1шт.

43

B51785

SEAT - power needle

1шт.

44

B51809

PACKING - "O" ring (1/16" x 3/16" I.D. x 5/16" O.D.)

1шт.

45

B51846

JET - idle fuel

1шт.

46

B51778

SHAFT

- float

1шт.

F12775

GASKET - flange (Not shown)

1шт.

B51730

KIT - gasket

1шт.

47

B51718

GASKET - bowl cover

1шт.

48

B51703

GASKET

- nozzle plug

1шт.

49

B51721

GASKET - 1 nozzle and 1 float valve seat

2шт.

50

F12774

GASKET - strainer

1шт.

51

O851AB

GASKET - (1-15/16" I.D. - 15/32" holes)

1шт.

52

F12790

ADAPTER - carburetor

1шт.

53

O9570AB

X

GASKET - (1-11/16" I.D. - 13/32" holes) carburetor adapter

1шт.

54

B50554

STUD - (1-3/8" long) carburetor and adapter

4шт.

NUT - 3/8" N.C. hex. (25-106) L.W. (92-6)

4шт.

F86216

CARBURETOR

- (Marvel-Schebler #USX-24)

1шт.
