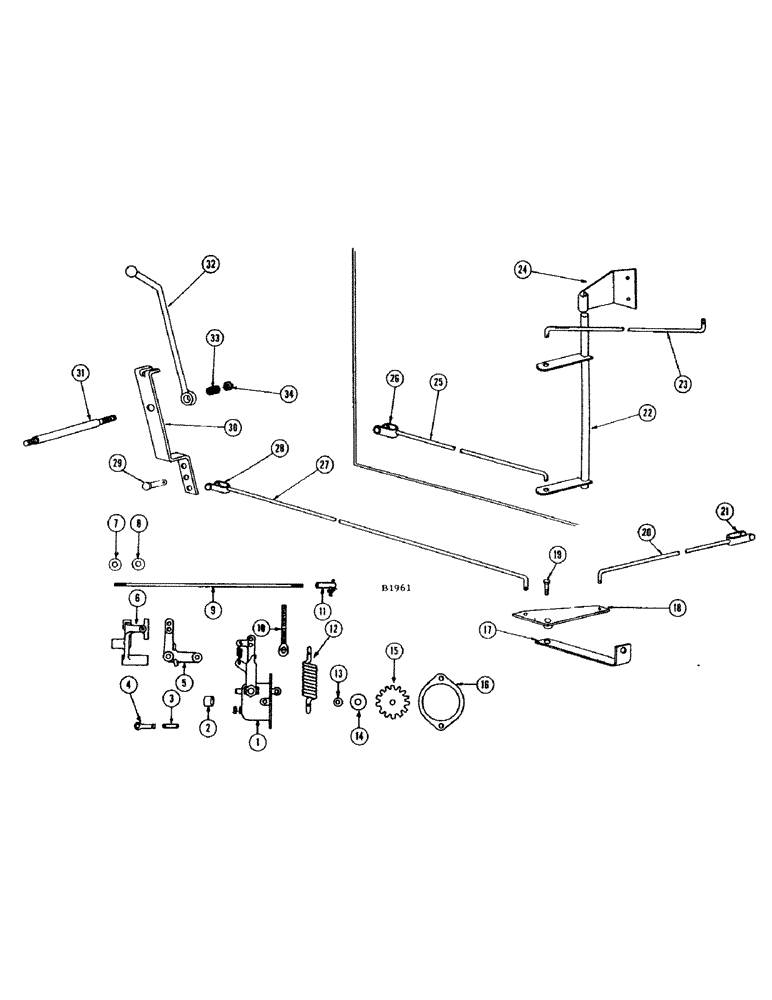

Запчасти Case IH 1010 (334) - MODEL GO 298 ENGINE, GOVERNOR (10) - ENGINE

1

B50652

GOVERNOR ASSEMBLY

1шт.

BOLT - 5/16" x 1" N.C. hex. (13-516) L.W. (92-5)

2шт.

2

B50566

SPACER - governor control bracket (3/4" O.D. x 19/32" wide)

1шт.

3

B50646

PIN - governor bellcrank

1шт.

PIN - 1/16" x 7/16" cotter (132-4)

1шт.

4

B50630

SWIVEL - governor bellcrank eyebolt

1шт.

PIN - 1/16" x 7/16" cotter (132-4)

1шт.

5

B50645

BELLCRANK - governor

1шт.

6

B50648

BRACKET - governor control

1шт.

7

195-21

WASHER,5/16"

- Bellcrank pin

1шт.

8

195-18

WASHER,1/4"

- swivel

1шт.

9

B50574

ROD - governor control

1шт.

10

B50567

EYEBOLT - bellcrank

1шт.

NUT - 1/4" N.F. hex. (25-114)

2шт.

11

B50395

BALL - joint, control rod (Both ends)

2шт.

NUT - 1/4" N.F. hex. (25-114)

4шт.

LOCKWASHER - 1/4" (92-4)

2шт.

12

B50550

SPRING - governor

1шт.

13

B50575

BUSHING - governor shaft

1шт.

14

B50577

WASHER - governor gear thrust (1-1/8" O.D. x 7/16" I.D.)

1шт.

15

B50651

GEAR - governor drive (17T) timing gear housing

1шт.

16

B50647

GASKET - governor housing attaching

1шт.

17

F11167

BRACE - throttle pivot support, control

1шт.

BOLT - 7/16" x 3/4" N.C. hex. (13-712) L.W. (92-7), throttle control

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115), throttle control

1шт.

18

F79438

PIVOT - governor bellcrank, throttle control

1шт.

19

O1444CS

BOLT - throttle bellcrank, control

1шт.

NUT - 3/8" N.F. hex. (25-116) L.W. (92-6), throttle control

1шт.

20

F11174

ROD - governor to bellcrank, throttle control

1шт.

PIN - 3/32" x 3/4" cotter (132-26), throttle control

1шт.

NUT - 1/4" N.F. hex. (25-114), throttle control

1шт.

PIN - clevis (141-2), throttle control

1шт.

21

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - 1/4", throttle control

1шт.

22

F86228

PIVOT - bagger, throttle control

1шт.

PIN - 3/32" x 1" cotter (132-28), throttle control

2шт.

WASHER - 1/2" plain (195-533), throttle control

1шт.

23

F12202

ROD - throttle, rear (Bagger), control

1шт.

PIN - 3/32" x 5/8" cotter (132-25), throttle control

2шт.

24

F12204

SUPPORT - lower, throttle pivot (Bagger), control

1шт.

25

F12200

ROD - throttle, front (Bagger), control

1шт.

NUT - 1/4" N.F. hex. (25-114), throttle control

1шт.

PIN - clevis (141-2), throttle control

1шт.

PIN - 1/16" x 1/2" cotter (141-2), throttle control

1шт.

26

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - 1/4", throttle control

1шт.

27

F11209

ROD - throttle, control

1шт.

NUT - 1/4" N.F. hex. (25-114), throttle control

1шт.

PIN - 1/16" x 1/2" cotter pin (132-5), throttle control

1шт.

PIN - 3/32" x 5/8" cotter (132-25), throttle control

1шт.

28

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - 1/4", throttle control

1шт.

29

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis, throttle control

1шт.

30

F8199

ARM - throttle control

1шт.

31

F8172

SHAFT - pivot, throttle control

1шт.

32

F11493

LEVER - throttle control

1шт.

33

VT2852

SPRING - throttle control

1шт.

WASHER - 3/8" std. (95-6), throttle control

1шт.

34

131-6

LOCK NUT,3/8"-16, GC

NUT - #29 EO66 ESNA, throttle control

1шт.
