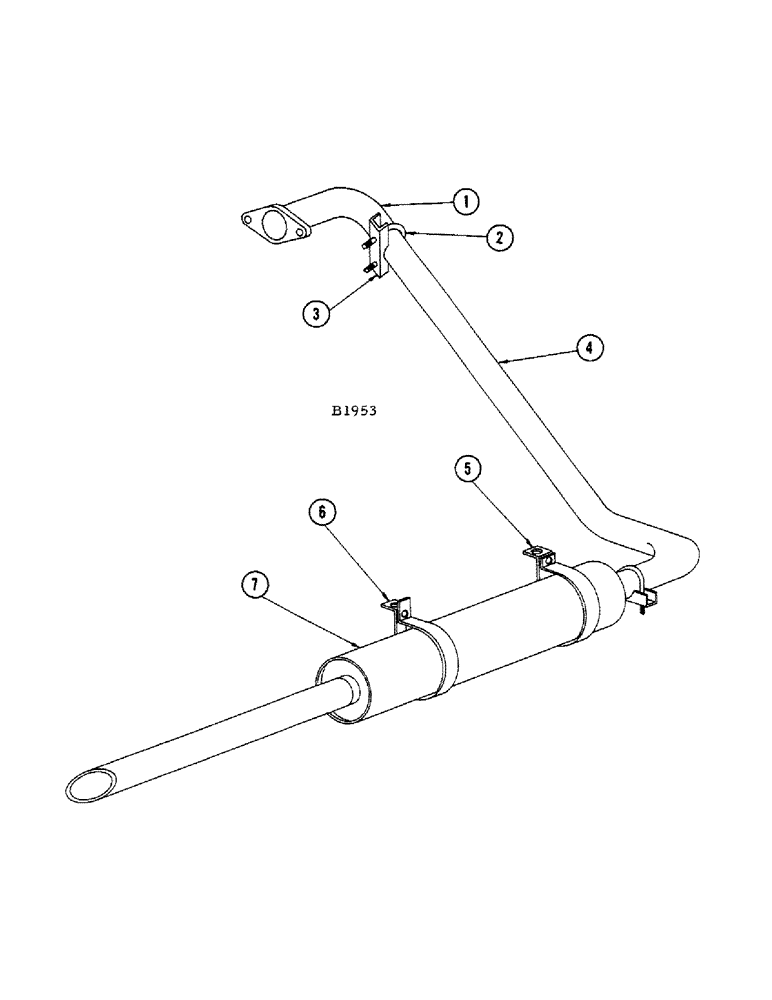

Запчасти Case IH 1010 (332[A]) - MODEL GO 298 ENGINE, MUFFLER AND EXHAUST PIPE (10) - ENGINE

1

F1384

ELBOW - exhaust

1шт.

*

BOLT - 1/2" x 1" N.C. hex. (13-816) L.W. (92-8)

2шт.

2

F8052

CLAMP

"U" BOLT - for exhaust pipe

2шт.

*

NUT - 5/16" N.C. hex. (25-105) L.W. (92-5)

4шт.

3

F9403

CLAMP - for "U" bolt

2шт.

4

F12101

PIPE - exhaust

1шт.

5

F12058

CLAMP - muffler, front

1шт.

*

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (26-106)

2шт.

6

F12064

CLAMP - muffler rear

1шт.

*

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106)

2шт.
