(330) - MODEL GO 298 ENGINE, OIL PUMP

Запчасти Case IH 1010 (330) - MODEL GO 298 ENGINE, OIL PUMP (10) - ENGINE

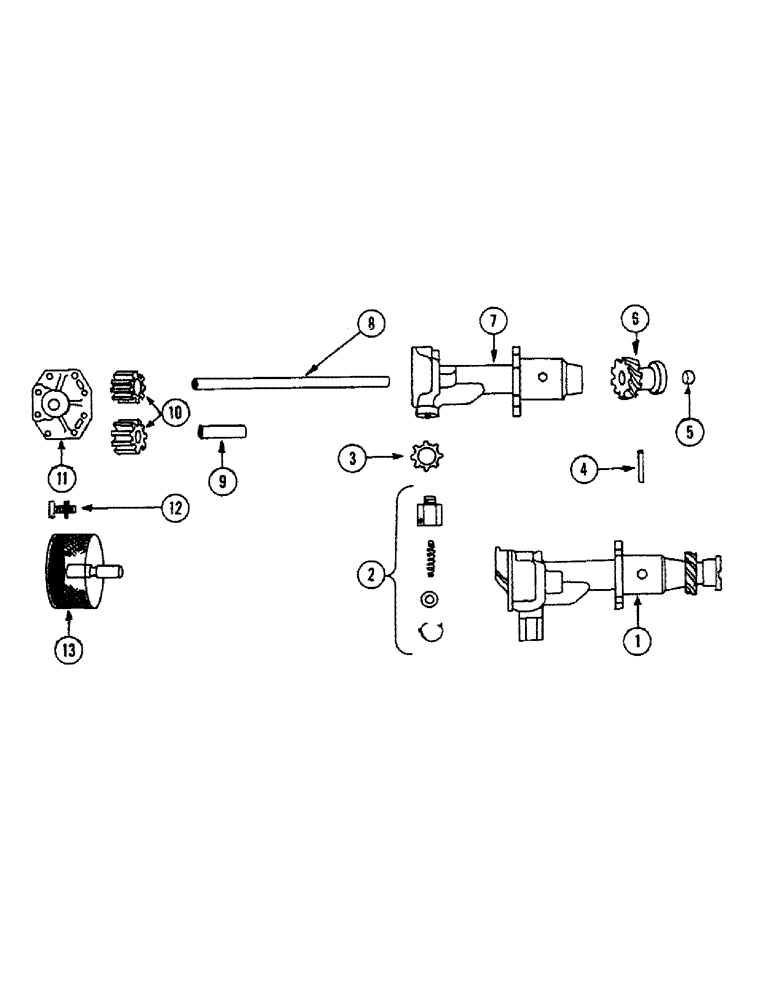

Схема запчастей Case IH 1010 - (330) - MODEL GO 298 ENGINE, OIL PUMP (10) - ENGINE
12
9
1
11
4
8
3
5
7
10
6
13
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

B50687

PUMP

- oil, complete

1шт.

2

B50670

VALVE ASSEMBLY - oil relief

1шт.

3

B50671

LOCKWASHER - oil relief

1шт.

4

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

5

B50650

SPACER - (5/8" O.D. x 25/32" long) drive gear

1шт.

6

B50649

GEAR - drive

1шт.

7

B50686

BODY - oil pump

1шт.

8

B50685

SHAFT - drive

1шт.

9

B50659

SHAFT - idler

1шт.

10

B50660

GEAR - idler

2шт.

11

F12788

COVER - oil pump

1шт.

12

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Cover, with washer Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

13

B50661

STRAINER - oil pump

1шт.
