(330[A]) - MODEL GO 298 ENGINE, OIL FILTER

Запчасти Case IH 1010 (330[A]) - MODEL GO 298 ENGINE, OIL FILTER (10) - ENGINE

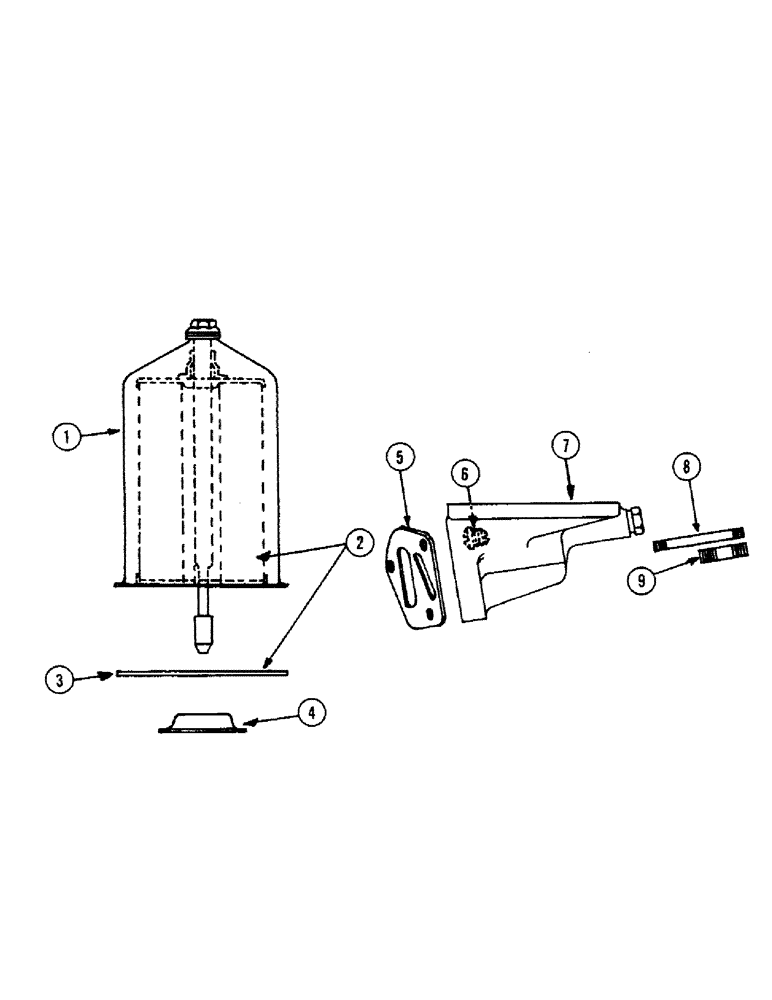

Схема запчастей Case IH 1010 - (330[A]) - MODEL GO 298 ENGINE, OIL FILTER (10) - ENGINE
9
3
2
1
7
8
4
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

B50666

CASE - oil filter

1шт.

2

F78898

ELEMENT

- oil filter

1шт.

3

B52024

GASKET - oil filter case

1шт.

4

B50667

CUP - sealing, oil filter

1шт.

5

B50618

GASKET - oil filter attaching

1шт.

6

B50390

PLUG - metering (1/8" slotted - 3/64" hole)

1шт.

7

B50619

BASE - oil filter

1шт.

8

B50367

STUD - oil filter (3/8" x 3-7/8")

2шт.

9

B50372

STUD - oil filter

1шт.
