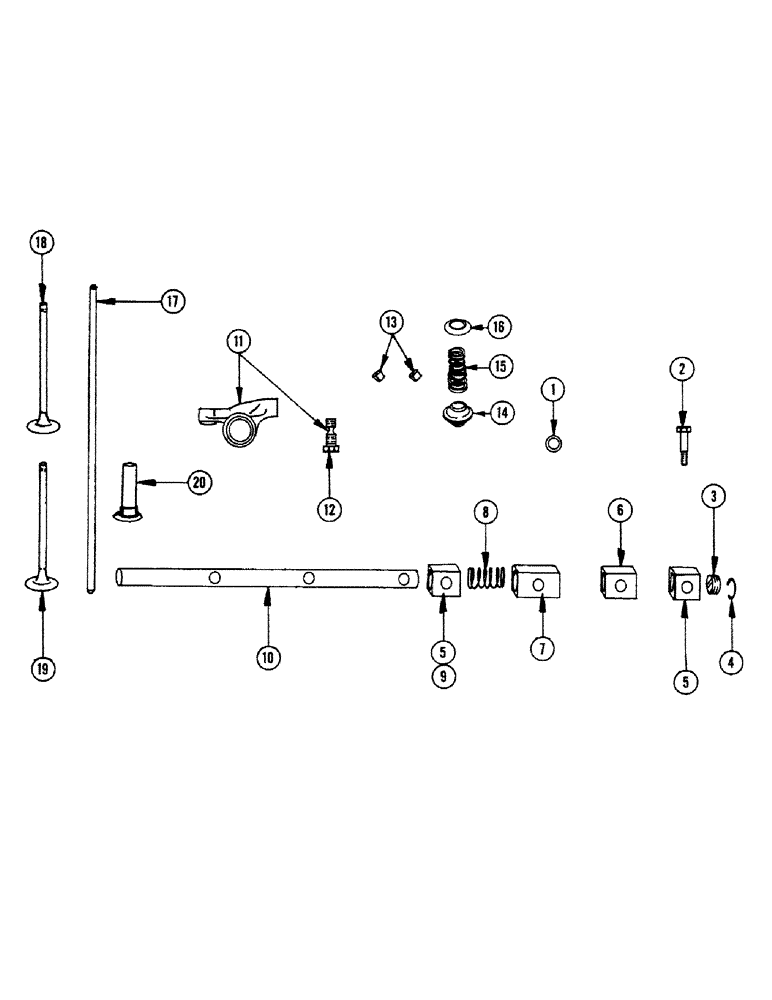

Запчасти Case IH 1010 (328) - MODEL GO 298 ENGINE, ROCKER ARMS (10) - ENGINE

1

B50360

WASHER - (7/8" O.D. x 13/32" I.D. x 3/32") rocker arm shaft

7шт.

2

B50559

SCREW - (3/8" x 2-1/2" drilled) rocker arm shaft

2шт.

3

B50415

PLUG - (3/8" slotted) rocker arm shaft

2шт.

4

O3658CH

X

RING - snap, rocker arm shaft

2шт.

5

B50600

SUPPORT - front and rear, rocker shaft

2шт.

6

B50655

SUPPORT - intermediate, rocker arm shaft

2шт.

7

B50602

SUPPORT - center, rocker arm shaft

1шт.

8

B50599

SPRING - rocker arm shaft

6шт.

9

B50601

SUPPORT - intermediate, rocker arm shaft

2шт.

10

B50656

SHAFT - rocker arm

2шт.

NUT - 3/8" N.F. hex. (25-116)

5шт.

11

B50644

ARM - rocker

12шт.

12

B50598

SCREW - adjusting, rocker arm

1шт.

13

B50538

LOCK - valve spring seat

24шт.

14

B50595

SEAT - valve spring

12шт.

15

B50593

SPRING - valve

12шт.

16

B50594

SEAL

- oil, valve stem (Replaced by F21703 when stock is exhausted)

6шт.

F21703

SEAL

- oil, valve stem (Replaces B50594 when stock is exhausted)

6шт.

17

B50591

ROD - push, valve

12шт.

18

B50589

VALVE - exhaust

6шт.

19

B50588

VALVE - intake

6шт.

20

B50590

TAPPET - valve

12шт.
