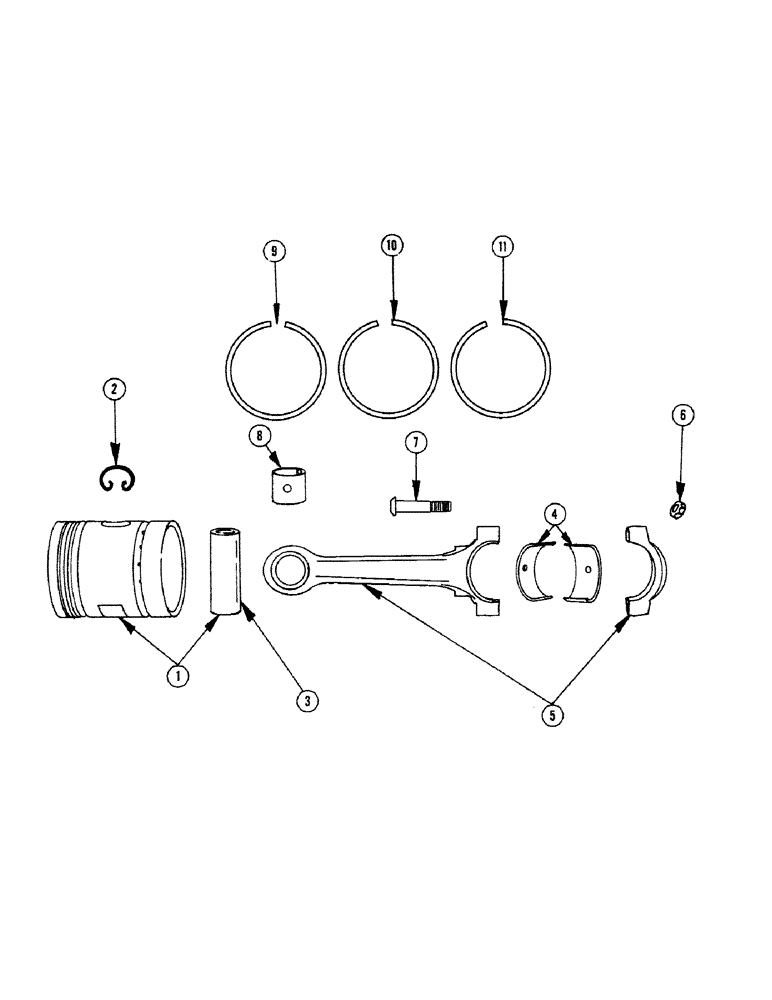

Запчасти Case IH 1010 (326) - MODEL GO 298 ENGINE, PISTONS AND CONNECTING RODS (10) - ENGINE

1

B50641

PISTON

6шт.

2

B50497

RING - snap, retaining - piston pin

2шт.

3

B50701

PIN - piston

1шт.

4

B50545

BEARING - connecting rod, upper and lower half (Standard)

6шт.

B50546

FLUID

BEARING - connecting rod, upper and lower half (.010" undersize)

6шт.

B50547

FLUID

BEARING - connecting rod, upper and lower half (.020" undersize)

6шт.

B50548

BEARING - connecting rod, upper and lower half (.040" undersize)

6шт.

5

B50603

ROD - connecting, less bearings

6шт.

6

B50403

NUT - connecting rod bolt

2шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

7

B50410

BOLT - connecting rod

2шт.

8

B50543

BUSHING - connecting rod

1шт.

B50657

RING SET

1шт.

9

B50604

RING - piston, top compression

6шт.

10

B50498

RING - piston, 2nd compression

6шт.

11

B50540

RING - piston, oil control

12шт.
