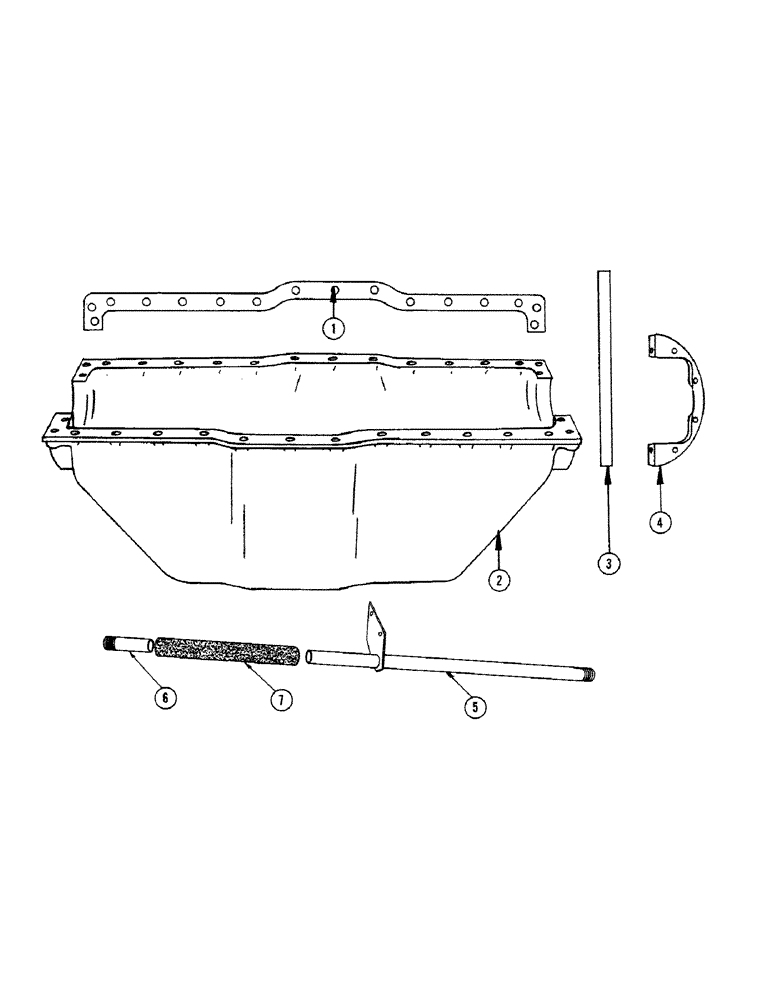

Запчасти Case IH 1010 (322) - MODEL GO 298 ENGINE, OIL PAN (10) - ENGINE

1

B50662

GASKET - oil pan

2шт.

2

B50683

PAN - oil

1шт.

BOLT - 3/8" x 3/4" N.C. hex. (13-612) L.W. (92-6)

28шт.

PLUG - 1/2" sq. hd. pipe (221-1004)

1шт.

B50617

SEAL

- oil pan, set of two

1шт.

3

B50615

SEAL

- oil pan, front and rear

2шт.

4

B50614

ADAPTER - oil pan

2шт.

NUT - 5/16" N.C. hex. (25-105) L.W. (92-5)

4шт.

5

F79827

PIPE - oil drain

1шт.

CAP - 1/2" NPT std. pipe (221-525)

1шт.

6

221-193

PIPE,Nipple, 1/2" NPT x 3 1/2"

NIPPLE - 1/2" x 3-1/2" drain pipe

1шт.

7

F9984

HOSE - drain, engine oil pan

1шт.
