(322[A]) - MODEL GO 298 ENGINE, TIMING GEAR COVER

Запчасти Case IH 1010 (322[A]) - MODEL GO 298 ENGINE, TIMING GEAR COVER (10) - ENGINE

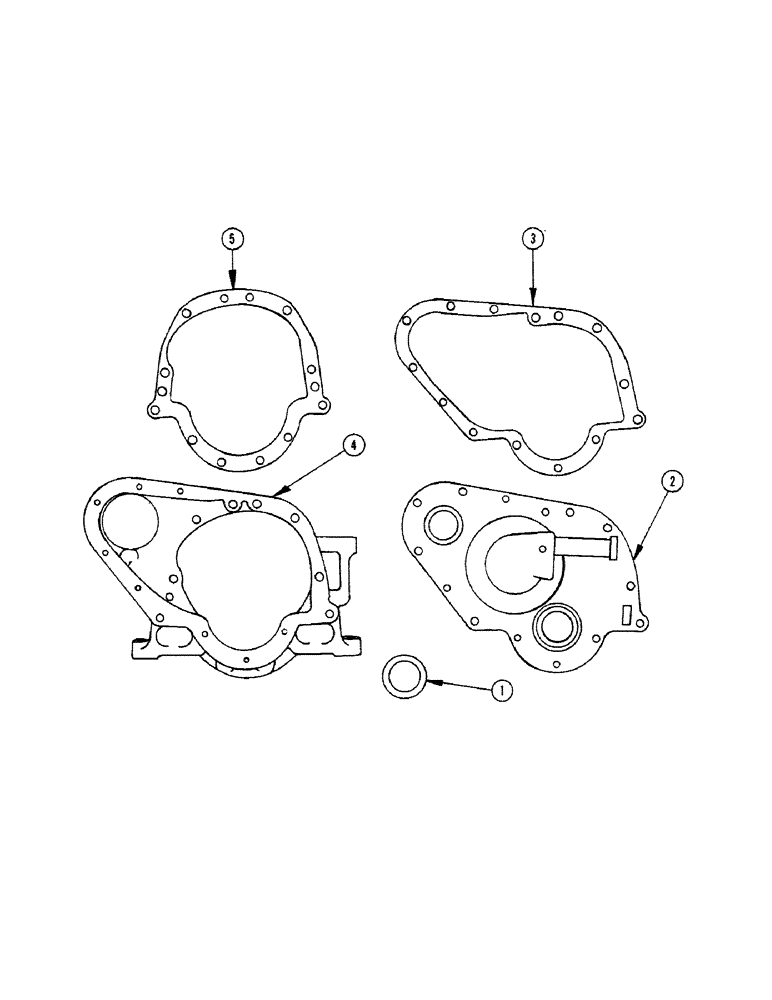

Схема запчастей Case IH 1010 - (322[A]) - MODEL GO 298 ENGINE, TIMING GEAR COVER (10) - ENGINE
5
3
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

B50388

SEAL - gear housing cover

1шт.

2

B50679

COVER - gear housing

1шт.

3

B50643

GASKET - gear housing cover

1шт.

4

B50678

HOUSING - timing gear

1шт.

PLUG - 1/8" std. pipe (221-1001)

1шт.

5

B50702

GASKET - timing gear cover

1шт.

B50638

GASKET - tachometer drive cover

1шт.

B50349

STUD - tachometer or cover attaching (5/16" x 1-1/8")

2шт.

F12787

COVER - tachometer drive

1шт.

NUT - 5/16" N.F. hex. (25-115) L.W. (92-5), tachometer

2шт.
