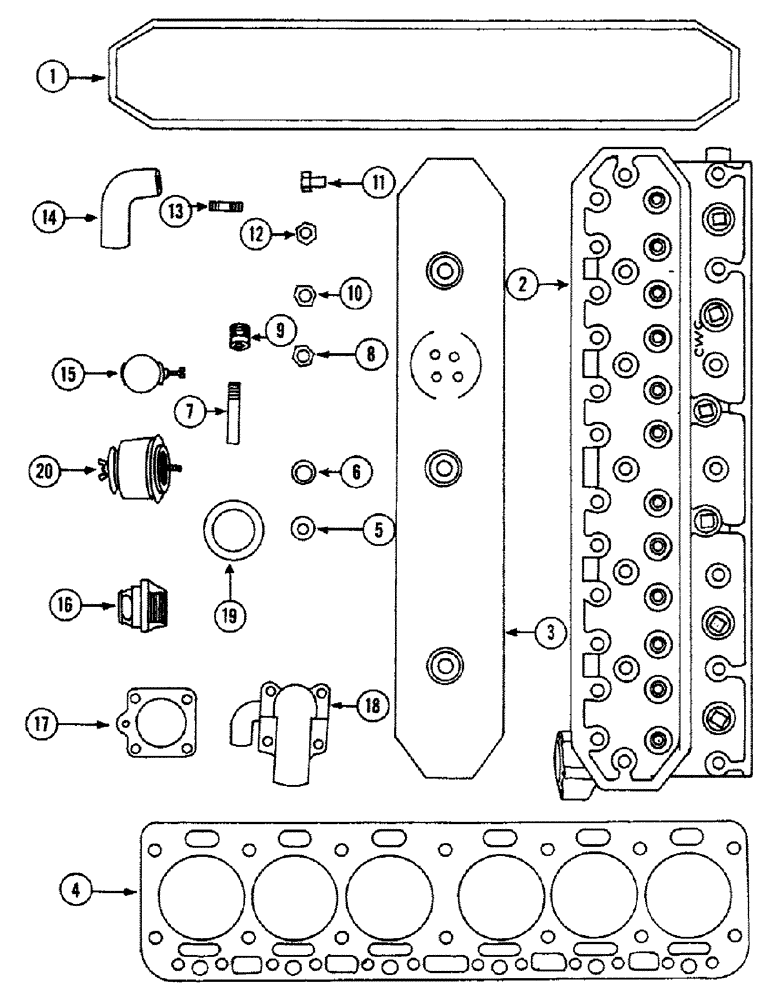

Запчасти Case IH 1010 (320) - MODEL GO 298 ENGINE, CYLINDER HEAD (10) - ENGINE

1

B50665

GASKET - cylinder head cover

1шт.

2

B50684

HEAD - cylinder

1шт.

3

B50664

COVER - cylinder head

1шт.

4

B50663

GASKET

- cylinder head

1шт.

5

B50560

WASHER - (1-1/16" O.D. x 19/32" I.D. x 3/32") cylinder head stud

12шт.

6

B50561

WASHER - (1-1/16" O.D. x 21/32" I.D. x 3/32") cylinder head stud

2шт.

7

B50592

GUIDE - valve

12шт.

8

B50563

NUT - cylinder head stud (5/8" - 18)

2шт.

9

B50366

PLUG - pipe (3/4" ctsk. hd.) cylinder head

6шт.

10

B50397

NUT - cylinder head stud

7шт.

11

B50557

NUT - cylinder head cover

3шт.

B50369

GASKET - cylinder head cover - nuts B50557 (Not shown)

3шт.

12

B50558

NUT - cylinder head stud

5шт.

13

B50392

STUD - exhaust manifold (7/16" x 1-5/8")

12шт.

B50351

PLUG - cup (1" dia.) not shown

1шт.

14

B50568

ELBOW - thermostat bypass

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, thermostat bypass

2шт.

16

B50634

THERMOSTAT - 160 degrees

1шт.

17

B50632

GASKET - thermostat housing

1шт.

18

B50633

HOUSING - thermostat

1шт.

B50569

PLUG - cup, thermostat housing (Not shown)

1шт.

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW - thermostat housing attaching - not shown

4шт.

LOCKWASHER - 3/8" (92-6)

4шт.

19

B50572

GASKET - breather

1шт.

20

B50631

BREATHER - (Flat type)

1шт.

SCREW - 1/4" x 1-5/8" rhd. N.C. mach. (75-426), breather

1шт.
