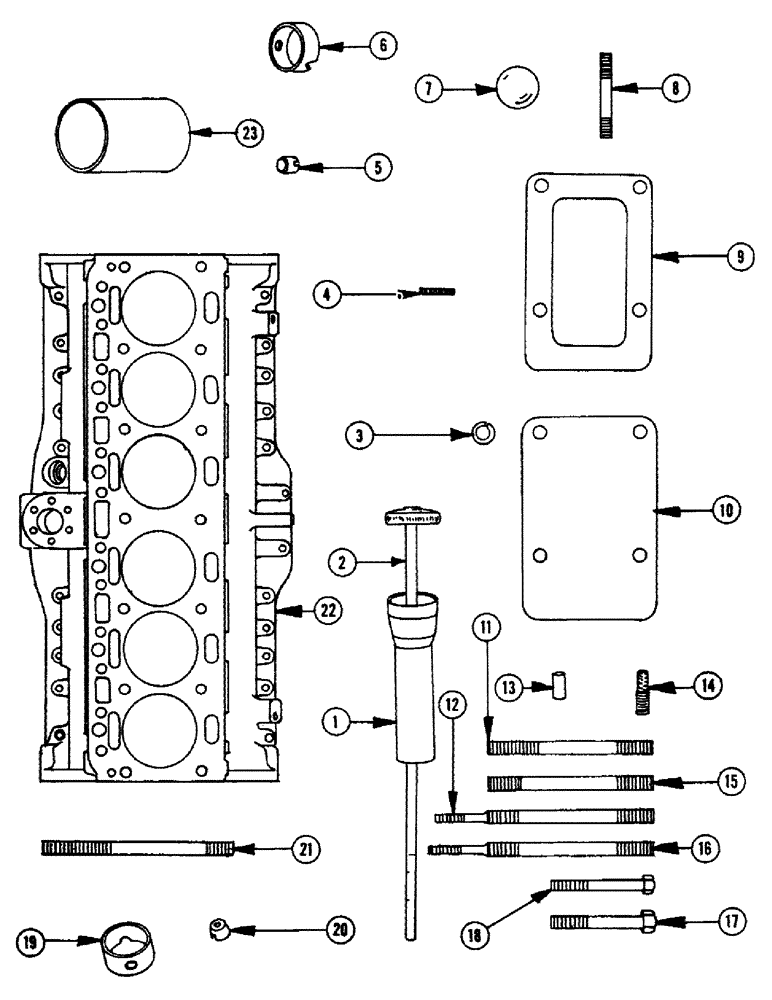

Запчасти Case IH 1010 (318) - MODEL GO 298 ENGINE, CYLINDER BLOCK (10) - ENGINE

1

B50613

TUBE - oil filter gauge

1шт.

2

B50703

GAUGE - oil filler (Bayonet type)

1шт.

3

B50537

GASKET - for side plate cap screw

12шт.

4

B50389

STUD - oil pan adapter attaching (5/16" x 1-1/4")

4шт.

5

B50578

CARTRIDGE

PLUG - pipe (In front of block)

1шт.

6

B50471

BEARING - camshaft, intermediate

2шт.

7

B50386

PLUG - cup, cylinder block - side and rear

5шт.

8

B50361

STUD - gear housing (1/2" x 3-1/16")

1шт.

9

B50677

GASKET - side plate cover

2шт.

10

F12786

PLATE - side cover

2шт.

SCREW - 3/8" x 3/4" N.C. cap

12шт.

11

B50393

STUD - cylinder head (9/16" x 5-1/2")

5шт.

12

B50583

STUD - cylinder head (9/16" x 7-1/8")

2шт.

13

F12785

DOWEL - cylinder block, gear cover and bell housing (1/2" x 1")

4шт.

14

B50401

STUD - bell housing attaching (1/2" x 1-1/2")

2шт.

15

B50562

STUD - cylinder head (5/8" x 5-3/8")

2шт.

16

B50582

STUD - cylinder head (9/16" x 7-7/16")

3шт.

17

B50580

SCREW - main bearing cap, rear and intermediate

12шт.

18

B50579

SCREW - main bearing cap (1/2" - 13 x 3")

4шт.

19

B50597

BEARING - camshaft, front and rear

2шт.

20

B50576

PLUG - pipe (Metered) front

1шт.

21

B50573

STUD - cylinder head (9/16" x 6-3/8")

2шт.

22

B50691

BLOCK - cylinder (Includes sleeves and bearing caps)

1шт.

PLUG - 1/8" std. slotted pipe (221-1041)

6шт.

PLUG - 1/4" std. slotted pipe (221-1042)

4шт.

PLUG - 3/8" std. slotted pipe (221-1043)

2шт.

23

B50587

SLEEVE - cylinder

6шт.

B50692

BLOCK - short, cylinder less head (Includes generator, carburetor, gear cover, oil pan, manifold, flywheel, flywheel housing and distributor)

1шт.

B50693

KIT - overhaul gasket

1шт.

B50369

GASKET - cylinder head cover stud, overhaul kit

3шт.

B50388

SEAL - gear housing cover, overhaul gasket kit

1шт.

B50537

GASKET - side cover plate screw, overhaul kit

12шт.

B50556

SEAL - oil, bell housing, overhaul gasket kit

1шт.

B50572

GASKET - breather, overhaul kit

1шт.

B50615

SEAL

- oil pan front and rear, overhaul gasket kit

2шт.

B50618

GASKET - oil filter, overhaul kit

1шт.

B50620

GASKET - water pump cover, overhaul kit

1шт.

B50621

GASKET - water pump, overhaul kit

1шт.

B50624

GASKET - water pump inlet pipe, overhaul kit

1шт.

B50632

GASKET - thermostat housing, overhaul kit

1шт.

B50637

GASKET - distributor housing, overhaul kit

1шт.

B50638

GASKET - tachometer drive cover, overhaul kit

1шт.

B50643

GASKET - gear housing cover, overhaul kit

1шт.

B50647

GASKET - governor housing, overhaul kit

1шт.

B50662

GASKET - oil pan, overhaul kit

2шт.

B50663

GASKET

- cylinder head, overhaul kit

1шт.

B50665

GASKET - cylinder head cover, overhaul kit

1шт.

B50672

GASKET - manifold, overhaul kit

1шт.

B50677

GASKET - side cover plate, overhaul kit

2шт.

B50702

GASKET - timing gear and flywheel housing, overhaul kit

2шт.

O9750AB

X

GASKET - carburetor adapter, overhaul kit

1шт.

O851AB

GASKET - carburetor attaching, overhaul kit

1шт.

VT4593

X

"O" RING - distributor sleeve, overhaul kit

1шт.
