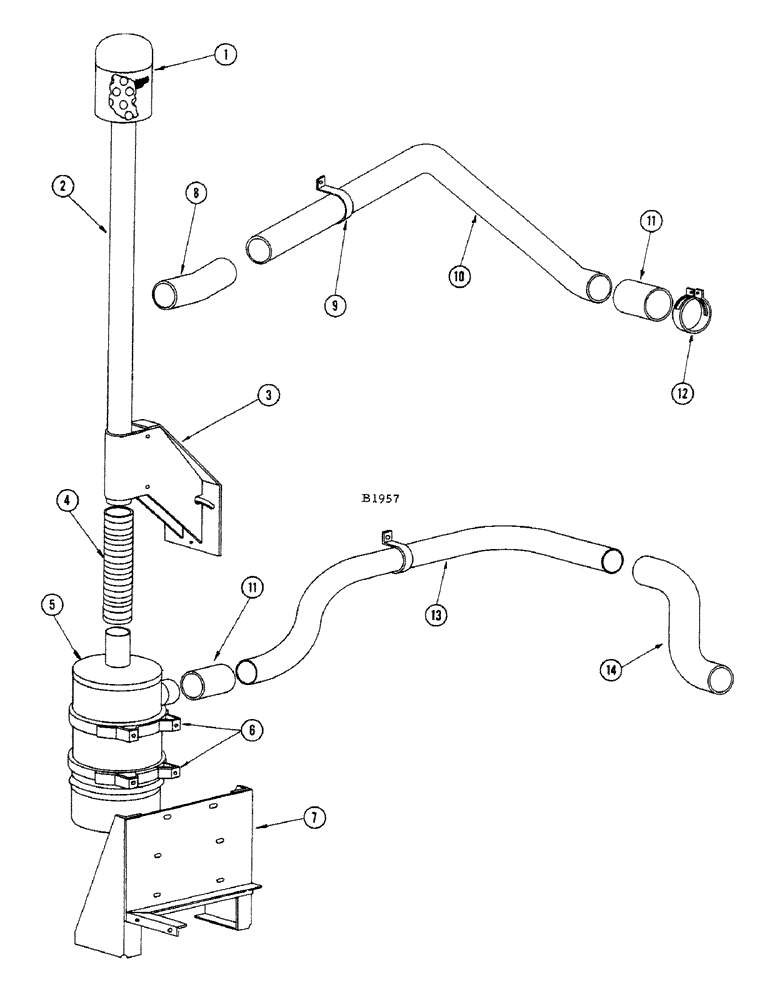

Запчасти Case IH 1010 (314) - AIR CLEANER (10) - ENGINE

1

F83641

CLEANER

PRE-SCREENER - air intake (#8262501 and after)

1шт.

A22301

PRESCREENER

PRE-SCRENER - air intake (Before #8262501)

1шт.

2

F12107

TUBE - pre-cleaner to air cleaner

1шт.

3

F86160

SUPPORT - air intake

1шт.

BOLT - 5/16" x 2-3/4" N.F. hex. (14-548) nut (25-115)

2шт.

4

F10287

HOSE - air cleaner end of F12107

1шт.

CLAMP - 44P wittek hose (214-262)

2шт.

5

F86313

CLEANER - air

1шт.

6

F77624

X

BAND - mounting, For air cleaner

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

4шт.

7

F77549

SUPPORT - for air cleaner and oil reservoir

1шт.

8

F12103

HOSE - for F12102 tube (Hercules) Before #8262501

1шт.

9

F9505

CLAMP

1шт.

BOLT - 1/4" x 3/4" N.C. hex. (13-412) nut (25-114)

2шт.

10

F12102

TUBE - air cleaner to carburetor (Hercules) Before #8262501

1шт.

11

F9589

X

HOSE - for F10124 tube or F12102 tube

1шт.

12

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose - 44P wittek

4шт.

13

F10124

TUBE - air cleaner to carburetor (A284G-F, A284LP-F and A301D-F)

1шт.

F12684

TUBE - air cleaner to carburetor (Chrysler)

1шт.

CLAMP - 44P wittek hose (214-262)

1шт.

14

F10125

TUBE - air cleaner to carburetor (A284G-F and A284LP-F engine)

1шт.

F12683

ELBOW - air cleaner, tube to carburetor (Chrysler)

1шт.

CLAMP - 44P wittek hose (214-262)

1шт.

F10128

HOSE - engine end of F10124 tube (Diesel engine) See F10125

1шт.
