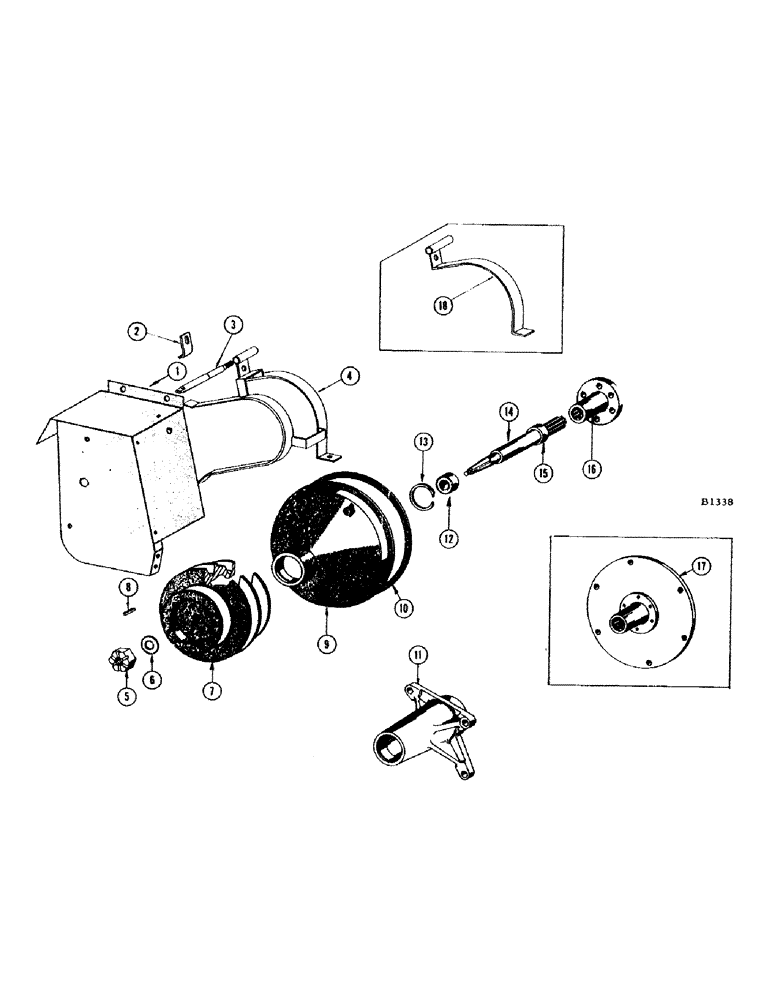

Запчасти Case IH 1010 (312) - ENGINE OUTPUT SHAFT AND HOUSING (10) - ENGINE

1

F79753

SHIELD - pulley (Grain bin machines)

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

3шт.

2

F12557

DEFLECTOR - belt guide

1шт.

BOLT - 1/4" x 1" N.F. hex. (14-416) nut (25-114)

1шт.

WASHER - 1/4" plain (195-18) L.W. (92-4)

1шт.

3

F11538

STUD

1шт.

4

F79751

NUT - (1" slotted) For shaft

1шт.

6

O2437B

WASHER - (2" O.D. x 1-1/32" I.D. #10 ga.) outer end of shaft

1шт.

7

F86326

SHEAVE - multiple drive (Main combine drive, variable speed traction drive and grain bin drive)

1шт.

O2553CS

WASHER - (18 ga. x 11/32" I.D. sheared) balancing (Not shown)

1шт.

O2799CS

WASHER - (12 ga. x 11/32" I.D. sheared) balancing (Not shown)

1шт.

8

O6267HT

KEY

- (1-1/4" straight) For F86326 - ref. 7

1шт.

9

F1210

FITTING

HOUSING - output shaft - See F1309 and ref. 11

1шт.

F1309

HOUSING - output shaft (Hercules engine only) See F1210 (Before #8262501)

1шт.

10

O6507AB

GASKET - (12-7/16" O.D.) For F1210 housing (Ref. 9)

1шт.

11

F1934

HOUSING - engine output shaft (H-318 Chrysler)

1шт.

12

F8025

BEARING

- (Fafnir #208NPP) engine output shaft

1шт.

13

O9022AB

X

RING - snap, For ref. 12

1шт.

14

F8024

SHAFT - (12-5/16" splined) engine output

1шт.

PIN - 1/8" x 1-3/4" cotter (132-54)

1шт.

F12657

SHAFT - engine output (H-318 Chrysler)

1шт.

PIN - 1/8" x 1-3/4" cotter (132-54)

1шт.

15

F8922

SPACER - (3/4" pipe) output shaft

1шт.

F12967

SPACER - output shaft (F12657 chrysler)

1шт.

16

F3088

HUB - output shaft - See F3128 and ref. 17

1шт.

F3128

HUB - output shaft (Hercules engine only) Before #8262501

1шт.

17

F86738

DISC - drive (H-318 Chrysler)

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) L.W. (92-6)

6шт.

18

F79752

GUIDE - engine pulley (Bagging platform) See ref. 4

1шт.

bore x 5" stroke, A284LP-F Spark Ignition 4-1/4" bore x 5" stroke, A301D-F Diesel 4-3/8" bore x 5" stroke, H318-399 Chyrsler 3.91" bore x 3.31" stroke (#8262501 and after)

1шт.
