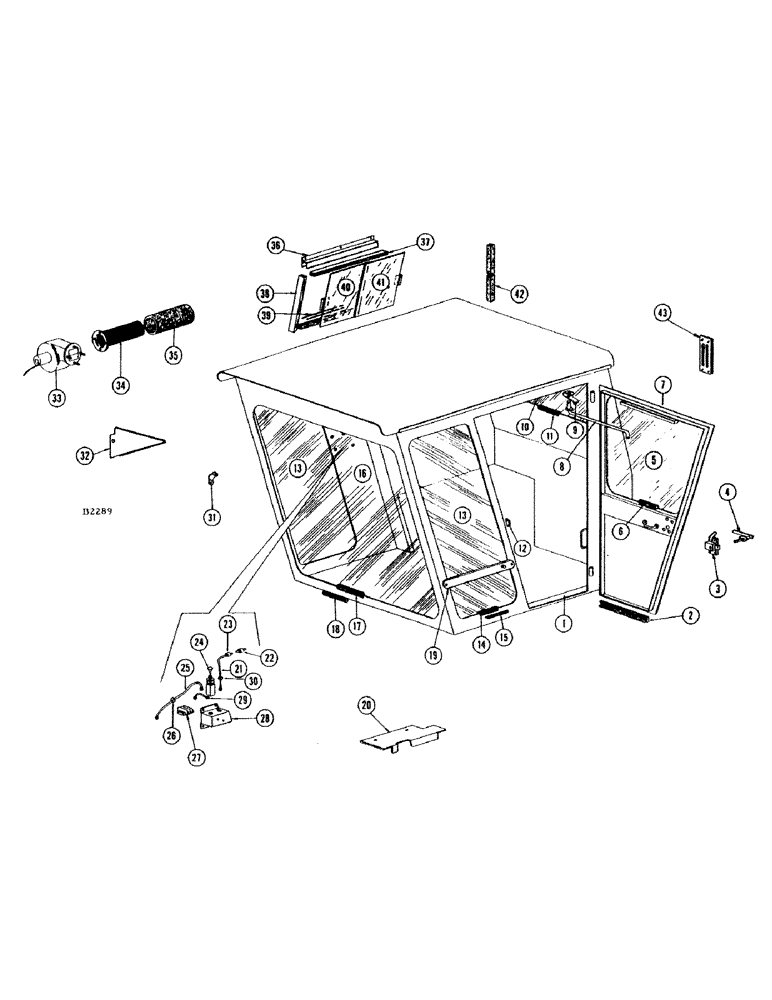

Запчасти Case IH 1010 (214) - OPERATORS CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F86876M

CAB - operator's (Machinery item)

1шт.

2

F21324

SEAL - weather, door

1шт.

3

F21323

LATCH - with handle, inside

1шт.

SCREW -#10 x 1/2" N.F. truss hd. mach. (175-297) and ext. L.W. (193-42)

4шт.

4

F21322

HANDLE - door, outside

1шт.

SCREW - #10 x 1/2" N.F. truss hd. mach. (175-297) and ext. L.W. (193-42)

2шт.

5

F21321

GLASS - door

1шт.

6

F21365

MOLDING

MOULDING - door glass (95-1/2")

1шт.

F21366

STRIP

FILLER STRIP - door glass (95-1/2")

1шт.

7

F84208

DOOR

1шт.

8

F84230

ROD - door

1шт.

WASHER - 5/16" std. flat (195-21)

1шт.

PIN - 1/8" x 3/4" cotter (132-46)

1шт.

9

F21325

SPRING - door rod

1шт.

10

F12976

GLASS - rear

1шт.

11

F12977

MOULDING - rear glass (107")

1шт.

F12978

FILLER STRIP - rear glass (107")

1шт.

12

F21320

STRIKER - door latch

1шт.

SCREW - 1/4" x 3/4" oval hd. mach. (68-412) nut (25-114)

2шт.

LOCKWASHER - 1/4" ctsk. ext. Shakeproof (193-52)

2шт.

LOCKWASHER - 1/4" Shakeproof ext. (193-8) F.W. (195-18)

2шт.

13

F21315

GLASS - side, front L.H. and R.H.

2шт.

14

F21359

MOLDING

MOULDING - side glass (136")

2шт.

15

F21360

FILLING STRIP

FILLER STRIP - side glass (136")

2шт.

16

F21314

WINDSHIELD - glass

1шт.

17

F21340

MOLDING

MOULDING - windshield glass (184")

1шт.

18

F21341

FILLING STRIP

FILLER STRIP - windshield (184")

1шт.

19

F86980

BAR

1шт.

SCREW - 3/8" - 16 x 2-1/2" mach. (75-640) nut (25-106)

2шт.

F12989

SPACER - for bar (Not shown)

2шт.

20

F12972

PANEL - filler, bottom

1шт.

21

F84234

WIRE - terminal, Serial Range: box-blower

2шт.

22

F21330

CONNECTOR

1шт.

23

F21352

TERMINAL

1шт.

24

F21304

BLOWER SWITCH

SWITCH - blower

1шт.

25

F84235

WIRE - front, terminal box to ignition (Includes ref. 22)

1шт.

26

F21348

GROMMET - front wire

1шт.

27

F21332

STRIP - terminal

1шт.

28

F21329

BOX - terminal

1шт.

SCREW - 1/4" x 1/2" truss hd. mach. (193-515) w/ext. tooth L.W.

4шт.

NUT -1/4" (25-114) washer - flat 1/4" (195-18)

4шт.

29

F21300

WIRE - jumper, front wire to switch

1шт.

30

F21347

GROMMET - blower wire

1шт.

F21393

CLEAT - line (Not shown)

1шт.

SCREW - #10 - 24 x 3/4" oval hd. (179-100)

2шт.

NUT - #10 - 24 self locking (131-505)

2шт.

WASHER - #10 std. flat (195-12)

2шт.

F84287

WIRE - pkg. to ignition (Not shown)

1шт.

F21330

CONNECTOR - (Not shown)

1шт.

31

F21334

CLIP - concave adjusting crank

1шт.

32

F86985

PANEL - filler, R.H. side

1шт.

33

F21335

BLOWER - (Includes deflector, gasket and 4 spacers)

1шт.

NUT - 5/16" N.F. hex. (25-115) and L.W. (5/16") Shakeproof ext. (193-9)

4шт.

NUT - #12 N.C. MS (129-8) and L.W. #12 Shakeproof int. (193-27)

4шт.

34

F84241

FRAME - filter

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-116)

11шт.

WASHER - 3/8" flat (195-25)

3шт.

35

F21339

FILTER - blower

1шт.

36

F86982

RETAINER - sliding window

1шт.

SCREW - 1/4" x 1/2" truss hd. mach. (193-515)

3шт.

NUT - 1/4" N.C. hex. (25-104) L.W. (92-4)

3шт.

37

F12990

RUN - glass - 24-3/4"

2шт.

38

F12991

RUN - glass - 15-3/4"

2шт.

39

F12992

PLASTIC - 24-3/4" - lower glass run

2шт.

40

F86983

GLASS - sliding, front (Includes grip)

1шт.

41

F86984

GLASS - sliding, rear (Includes grip)

1шт.

42

F12979

SEAL - polyether - 24-1/2"

1шт.

F12980

SEAL - polyether - 19-1/2"

1шт.

F12981

SEAL - polyether - 23"

1шт.

F12982

SEAL - polyether - 5-1/2"

1шт.

43

F86981

PANEL - filler (Includes gasket)

1шт.

SCREW - 1/4" - 20 x 1/2" truss hd. mach. (193-515)

4шт.

NUT - 1/4" N.C. hex. (25-104) L.W. (92-4)

4шт.
