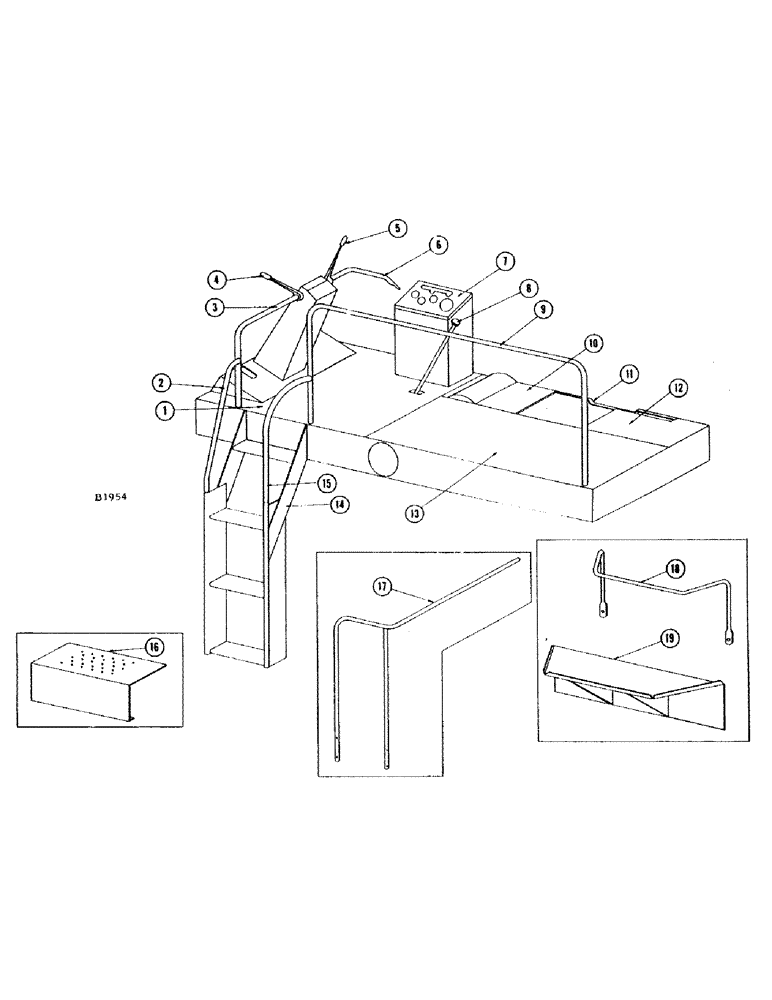

Запчасти Case IH 1010 (212) - OPERATORS PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
F86572
PLATFORM - operator's (Replaces F79380)
1шт.
2
F86165
HAND RAIL - L.H.
1шт.
F12869
HAND RAIL - L.H. (For operator's cab)
1шт.
3
F86090
HAND RAIL - L.H. front
1шт.
BOLT - 3/8" x 2" N.F. hex. (14-620) nut (25-116)
1шт.
4
F1213
LEVER - L.H. control (See header lift and V.S. control)
1шт.
5
F1211
LEVER - R.H. control
1шт.
6
F79383
HAND RAIL - front R.H. - grain bin
1шт.
F79427
HAND RAIL - front R.H. - bagger
1шт.
7
F11078
PANEL - instrument (See instrument panel illus.) diesel
1шт.
F11079
PANEL - instrument (See instrument panel illus.) gas
1шт.
8
F76813
LEVER - control (See main combine drive idler)
1шт.
9
F86164
HAND RAIL - rear
1шт.
BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)
2шт.
BOLT - 3/8" x 1-3/4" N.F. hex. (114-204) nut (129-123)
3шт.
WASHER - 3/8" plain (195-525)
3шт.
10
F12065
COVER - stringer, operator's platform
1шт.
11
F12464
STRINGER - inside operator's platform (Replaces F12229)
1шт.
BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)
4шт.
BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)
1шт.
WASHER - 1/4" plain (195-518)
4шт.
BOLT - 1/4" x 5/8" rhd. sq. nk. (111-102) nut (129-101)
4шт.
BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)
2шт.
12
F11255
FLOOR - removable
1шт.
13
F86594
PLATFORM - rear (Bagging platform) Replaces F86150
1шт.
F86589
PLATFORM - rear (Grain bin) Replaces F79475
1шт.
BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)
4шт.
BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)
4шт.
BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)
3шт.
WASHER - 1/4" plain (195-518)
4шт.
14
F79813
LADDER - side
1шт.
15
F79485
HAND RAIL - R.H.
1шт.
16
F12221
STEP - (Bagger combines)
1шт.
BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)
2шт.
BOLT - 5/16" x 5/8" N.F. hex. (114-102) nut (129-122)
1шт.
17
F86123
HAND RAIL - rear (Bagger)
1шт.
BOLT - 7/16" x 1-1/2" N.F. hex. (114-303) nut (129-124)
1шт.
18
F79637
HAND RAIL - outside rear, platform side extension, operator's corn head attachment
1шт.
BOLT - 3/8" x 2" N.F. hex. (114-216) nut (129-123), operator's platform side extension corn head attachment
2шт.
BOLT - 5/16" x 2-3/4" N.F. hex. (114-115) nut (129-122), operator's platform side extension corn head attachment
1шт.
19
F79636
EXTENSION - platform side, operator's extension corn head attachment
1шт.
Выбрано товаров: 41
