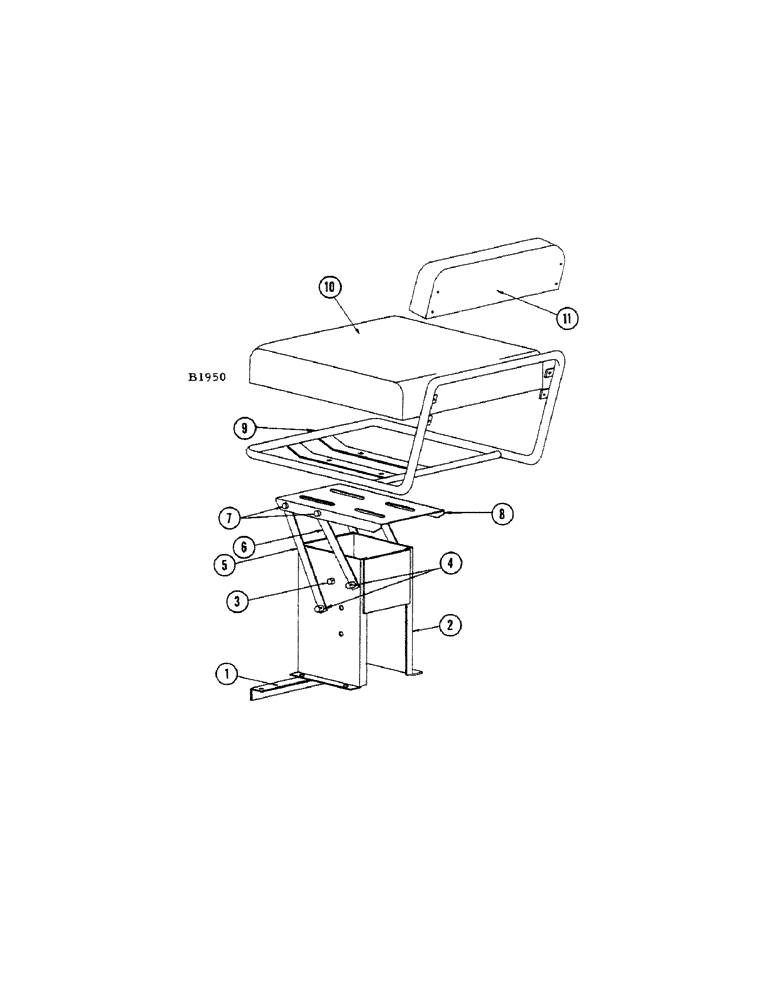

Запчасти Case IH 1010 (210) - OPERATORS SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F8166

ANGLE - seat support

2шт.

2

F86094

SUPPORT

1шт.

BOLT - 1/2" x 1" N.F. hex. (14-816) nut (25-118)

4шт.

3

F9203

STOP - pivot

1шт.

PIN - 1/8" x 3/4" cotter (132-46)

2шт.

4

F9202

ROD - pivot

2шт.

PIN - 1/8" x 3/4" cotter (132-46)

4шт.

5

F9199

ARM - front pivot

2шт.

6

F9200

ARM - rear pivot

2шт.

7

V22503

PIN - for F9199 and F9200 arms

4шт.

8

F9198

CHANNEL

1шт.

9

F79898

FRAME - seat

1шт.

10

F11684

CUSHION - seat

1шт.

11

F11686

CUSHION - back rest

1шт.

SCREW - #10 x 3/4" pan head tapping - type "A" gimlet pt. (187-331)

4шт.
