(310) - MUD SHIELD ATTACHMENT, VARIABLE SPEED TRACTION DRIVE SHEAVE

Запчасти Case IH 1010 (310) - MUD SHIELD ATTACHMENT, VARIABLE SPEED TRACTION DRIVE SHEAVE (88) - ACCESSORIES

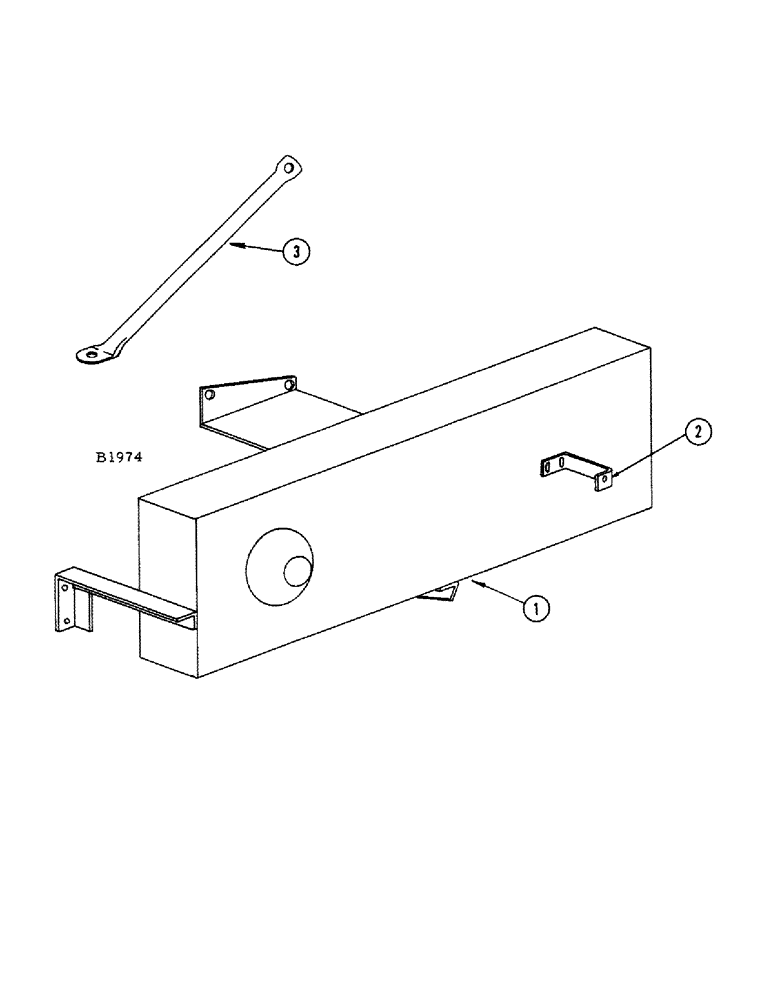

Схема запчастей Case IH 1010 - (310) - MUD SHIELD ATTACHMENT, VARIABLE SPEED TRACTION DRIVE SHEAVE (88) - ACCESSORIES
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F86857

SHIELD - mud V.S. traction drive

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

4шт.

BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123)

2шт.

F79774

SHIELD - mud V.S. traction drive

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

7шт.

BOLT - 3/8" x 1-3/4" N.F. hex. (114-204) nut (129-123)

1шт.

2

F12849

BRACKET - safety shield

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121)

2шт.

WASHER - 1/4" flat (195-518)

4шт.

3

F79889

BRACE - front

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) nut (129-123)

2шт.
