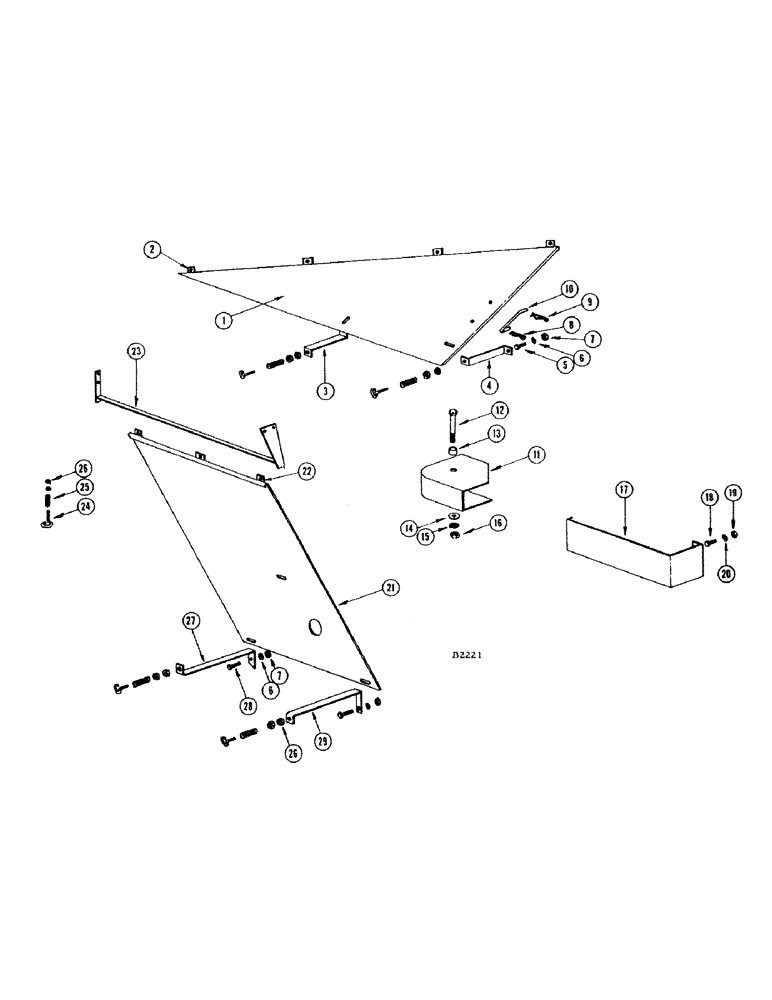

Запчасти Case IH 1010 (308) - DRIVE SHIELDS (88) - ACCESSORIES

1

F86694

SHIELD - R.H.

1шт.

2

F20976

CLIP

- hinge

4шт.

3

F12581

BRACE - R.H. rear

1шт.

4

F12580

BRACE - R.H. front

1шт.

5

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

15шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

16шт.

7

129-121

NUT,1/4"-28, G5

16шт.

8

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

9

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

COTTER - hair pin

1шт.

10

F12579

LATCH - shield

1шт.

11

F86701

SHIELD - rear

1шт.

12

114-61

BOLT - 5/8" x 4-1/2" N.F. hex.

1шт.

13

V13384

SPACER

1шт.

14

O9066CH

WASHER

1шт.

15

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

129-127

NUT,5/8"-18, G5

1шт.

17

F12584

SHIELD - strawspreader belt

1шт.

18

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

2шт.

19

129-211

NUT - 1/4" N.F. hex.

2шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

21

F86688

SHIELD - L.H.

1шт.

22

F20976

CLIP

- hinge

3шт.

23

F86691

HANGER - L.H. shield

1шт.

24

F19960

LATCH

5шт.

25

117EB

SPRING

5шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

10шт.

27

F12575

BRACE - L.H. front

1шт.

28

114-7

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

1шт.

29

F12576

BRACE - L.H. rear

1шт.
