Запчасти Case IH 1010 (192) - SCOURKLEEN ATTACHMENT, BAGGER (80) - CROP STORAGE/UNLOADING

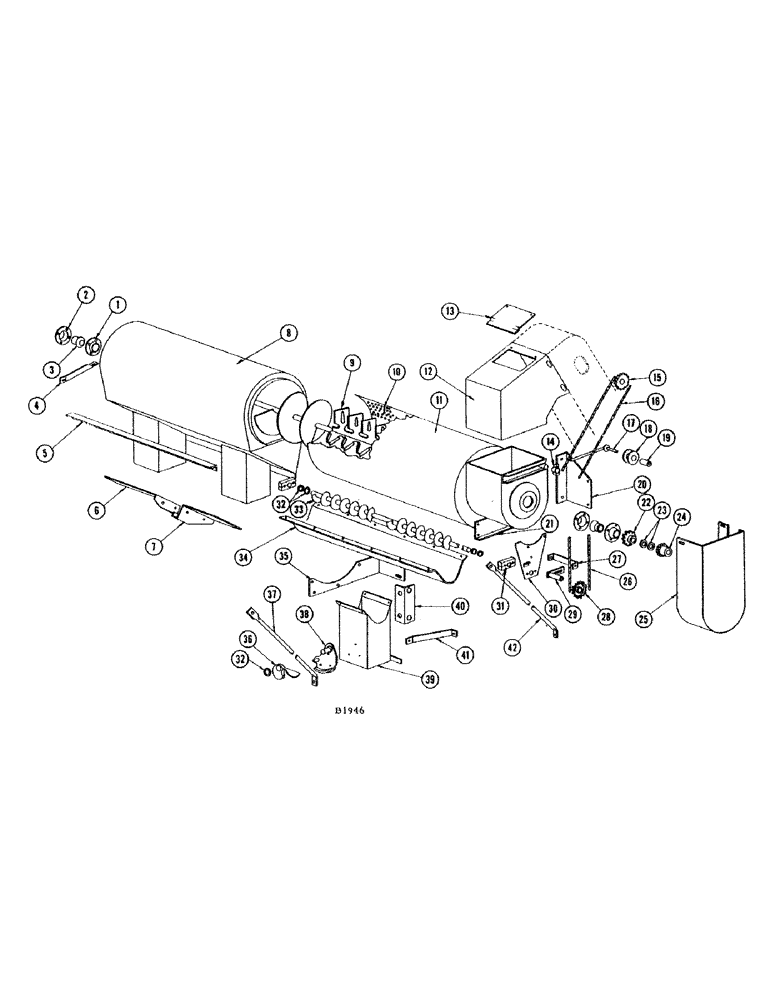

Схема запчастей Case IH 1010 - (192) - SCOURKLEEN ATTACHMENT, BAGGER (80) - CROP STORAGE/UNLOADING
8
24
28
3
4
5
16
7
1
9
31
12
38
15
11
39
21
13
22
25
29
42
10
6
17
36
33
20
41
26
2
32
35
37
40
18
27
14
23
30
32
19
34

Артикул

Название

Примечание

Количество

1

F20336

RETAINER - outer, For wood bearing

2шт.

2

F20337

RETAINER - inner, For wood bearing

2шт.

3

F4347

BEARING

- for rotor shaft

2шт.

4

F12354

BRACE - discharge drum to platform rail

1шт.

5

F12355

SUPPORT - bag jig, For discharge drum

1шт.

6

F12352

DOOR - discharge drum, L.H.

1шт.

7

F12351

DOOR - discharge drum, R.H.

1шт.

8

F86444

DRUM - at discharge end of Scourkleen

1шт.

9

F86449

BLADE - rotor, assembly

1шт.

10

F83260M

SCREEN - (.165" triangular hole) standard (See Scourkleen screen)

1шт.

11

F86441

HOUSING - main, Scourkleen proper

1шт.

12

F86447

SPOUT - elevator discharge

1шт.

13

F12353

SHEET - top door

1шт.

14

F1648

CLAMP - collar on chain tightener arm

1шт.

15

F1390

SPROCKET - (20T) on rotor shaft, Serial Range: next-bearing

1шт.

16

F12360

X

CHAIN - rotor drive (Consists of 4-B17074, 1-B17075, 4-B17078, 1-B17079 and 1-B17077)

1шт.

17

F83371

ARM - chain tightener

1шт.

WASHER - 1/2" plain (95-8)

1шт.

PIN - 1/8" x 1" cotter (132-48)

1шт.

18

F83368

ROLLER - chain tightener

1шт.

19

F4345

BUSHING

1шт.

20

F12347

ANGLE - attaching, intake end support bracket

1шт.

21

F12348

BRACKET - support, intake end of Scourkleen

1шт.

22

F1652

SPROCKET - (9T) on rotor shaft, Serial Range: next-bearing

1шт.

23

F20286

WASHER

- on rotor shaft

2шт.

24

F1654

SPROCKET - (14T) on end of rotor shaft

1шт.

25

F86445

GUARD - drive chain

1шт.

26

NSS

NOT SOLD SEPARAT

CHAIN - #25 steel (Use B15926 to make 31 link weed seed auger drive chain)

1шт.

27

F12356

BRACKET - attaching, lower for drive guard

1шт.

28

F1649

SPROCKET - (12T) on dockage auger shaft

1шт.

29

F83373

TIGHTENER - chain

1шт.

30

F86446

BRACKET - bearing, For weed seed extension

1шт.

31

F4346

BEARING - for weed seed auger trough end extension bracket

3шт.

32

O774AB

X

WASHER - on dockage auger shaft and F1651

5шт.

33

F86443

AUGER - dockage

1шт.

34

F86442

TROUGH - dockage

1шт.

35

F12349

BRACKET - support, discharge end of Scourkleen

1шт.

36

F1650

PIVOT - for dockage bag holder

1шт.

37

F12359

BRACE - for support at discharge end

1шт.

38

F1651

BRACKET - for dockage bag holder

1шт.

39

F86448

DOWNSPOUT AND BAG HOLDER - for dockage

1шт.

40

F12350

ANGLE - attaching, For support angle at discharge end

1шт.

41

F12357

BRACE - for weed seed downspout and bag holder

1шт.

42

F12358

BRACE - for support at intake end

1шт.

F83260

SCREEN - (.165" triangular hole) standard - Wheat, Oats, Barley, Rye and Rice, scourkleens extra

1шт.

F83261

SCREEN - (.140" triangular hole) Wheat, Oats, Barley, Rye and Rice, scourkleens extra

1шт.

F83262

SCREEN - (1/8" x 3/4" slotted) Corn and Beans, scourkleens extra

1шт.

F83263

SCREEN - (5/32" x 3/4" slotted) Corn, scourkleens extra

1шт.

F83264

SCREEN - (5/32" rd.) Beans, scourkleens extra

1шт.

F83265

SCREEN - (1/20" rd. hole) Clover, Alfalfa and Grass, scourkleens extra

1шт.

F83266

SCREEN - (1/12" rd. hole) Flax, Grass and Maize, scourkleens extra

1шт.

F83267

SCREEN - (3/16" rd. hole) Corn and Beans, scourkleens extra

1шт.

F83268

SCREEN - (7/32" rd. hole) Beans, scourkleens extra

1шт.

Выбрано товаров: 53
