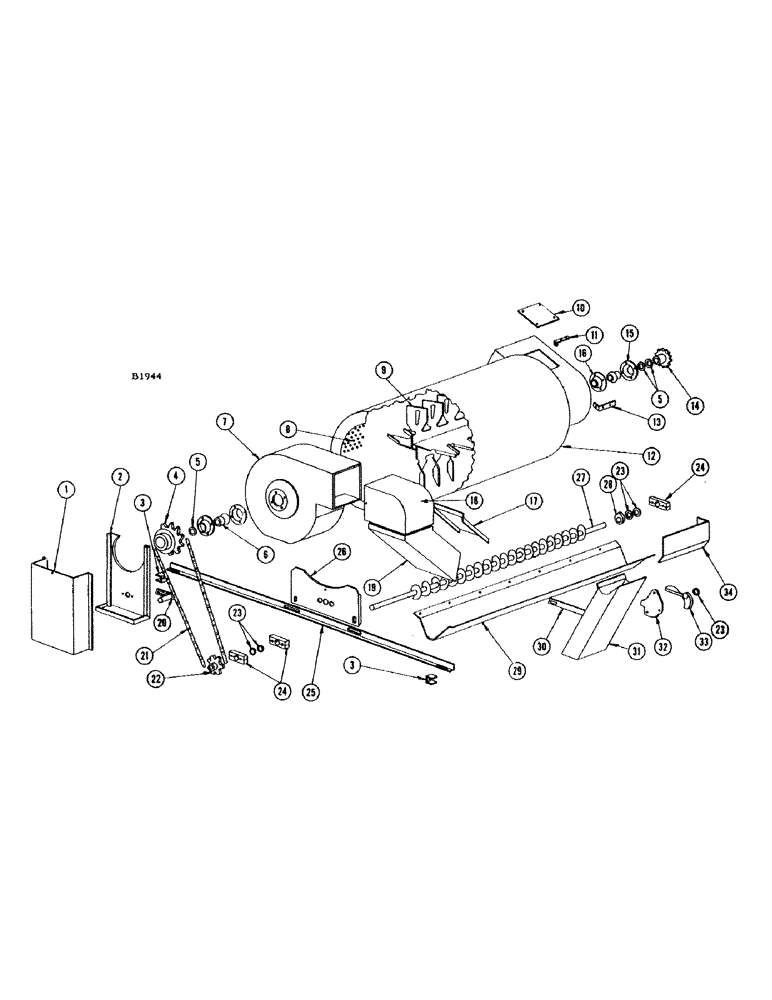

Запчасти Case IH 1010 (190) - SCOURKLEEN ATTACHMENT, GRAIN BIN (80) - CROP STORAGE/UNLOADING

1

F12368

SHEET - front, For dockage chain drive shield

1шт.

2

F86456

SHIELD - weed seed chain drive

1шт.

3

F12375

"U" CLAMP - for discharge end support angle

2шт.

BOLT - 5/16" x 2" N.C. hex. (13-532) nut (25-105)

2шт.

4

F1391

SPROCKET - (9T) on discharge end of rotor shaft

1шт.

5

F20286

WASHER

- rotor shaft

3шт.

6

F4347

BEARING

- for rotor shaft

2шт.

7

F86453

DRUM - discharge

1шт.

8

F83260M

SCREEN - (.165" triangular hole) standard (See Scourkleen screens)

1шт.

9

F86465

BLADE - rotor

1шт.

10

F12377

SHEET - top door

1шт.

11

F12372

BRACKET - attaching, top for chain drive guard

1шт.

12

F86452

HOUSING - main, For Scourkleen proper

1шт.

13

F12373

BRACKET - attaching, front of chain drive guard

1шт.

14

F1392

SPROCKET - (20T) on intake end of rotor shaft

1шт.

KEY - #15 Woodruff (126-24)

1шт.

15

F20336

RETAINER - outer, For wood bearing

2шт.

16

F20337

RETAINER - inner, For wood bearing

2шт.

17

F12370

SHEET - cover, For grain discharge chute

1шт.

18

F83376

ELBOW - at discharge end of Scourkleen

1шт.

SCREW - 3/16" x 3/8" N.C. mach. (173-95) nut (129-7)

3шт.

19

F86450

CHUTE - grain discharge

1шт.

SCREW - 3/16" x 3/8" N.C. mach. (173-95) nut (129-7)

4шт.

LOCKWASHER - 3/16" (92-3) burr (122-9)

4шт.

20

F83373

TIGHTENER - chain

1шт.

21

NSS

NOT SOLD SEPARAT

CHAIN - #25 steel (Use B15926 to make 31 link weed seek auger drive chain)

1шт.

22

F1649

SPROCKET - (12T) on dockage auger shaft

1шт.

23

O774AB

X

WASHER - on dockage auger shaft and ref. 30

5шт.

24

F4346

BEARING - for weed seed auger trough and extension bracket

3шт.

25

F86464

ANGLE - support at discharge end of Scourkleen

1шт.

26

F20343

BRACKET - support, at discharge end of Scourkleen

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (13-512) nut (25-105)

2шт.

WASHER - 5/16" plain (95-5)

4шт.

27

F86460

AUGER - dockage

1шт.

28

F1647

COLLAR - set, on dockage auger shaft

1шт.

29

F86459

TROUGH - dockage

1шт.

30

F12376

BRACE - for weed seed downspout and bag holder

1шт.

31

F86461

DOWNSPOUT - for dockage

1шт.

SCREW - 3/16" x 3/8" N.C. mach. (173-95) nut (129-7)

4шт.

LOCKWASHER - 3/16" (92-3) burr (122-9)

4шт.

32

F1651

BRACKET - for dockage bag holder

1шт.

33

F1650

PIVOT - for dockage bag holder

1шт.

34

F12369

SHIELD - dust, L.H., For dockage trough

1шт.
