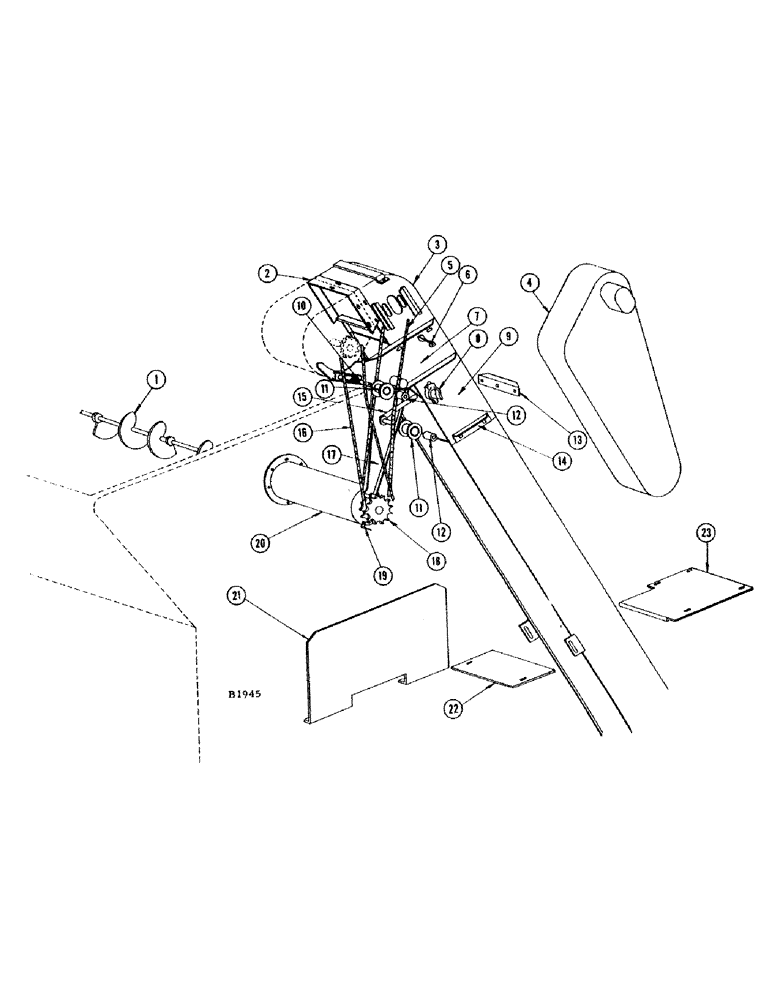

Запчасти Case IH 1010 (188) - SCOURKLEEN ATTACHMENT, ELEVATOR EXTENSION AND DRIVE, GRAIN BIN (80) - CROP STORAGE/UNLOADING

1

F86467

AUGER - grain bin distributo

1шт.

2

F86458

SPOUT - elevator discharge

1шт.

BOLT - 1/4" x 1/2" N.C. hex. (13-48) nut (25-104)

5шт.

BURR - 1/4" steel (122-13)

5шт.

3

F86457

HEAD - grain elevator

1шт.

4

F86462

GUARD - drive

1шт.

BOLT - 1/4" x 5/8" N.C. hex. (13-410) nut (25-104)

7шт.

WASHER - 1/4" plain (95-4) L.W. (92-4)

7шт.

5

F12379

X

CHAIN - grain elevator drive extension (Consists of 1-B12470, 1-B12471, 1-B12501, 4-B12502 and 1-B12503)

1шт.

6

F12371

BRACKET - attaching, rear for chain drive guard

1шт.

7

F86454

BRACKET - support, intake end of Scourkleen

1шт.

BOLT - 1/4" x 3/4" N.C. hex. (13-412) nut (25-104)

2шт.

WASHER - 1/4" plain (95-4) L.W. (92-4)

2шт.

8

F1648

CLAMP - collar on chain tightener arm

1шт.

9

F86463

TUBE - elevator extension

1шт.

BOLT - 1/4" x 5/8" N.C. hex. (13-410) nut (25-104)

5шт.

WASHER - 1/4" plain (95-5) L.W. (92-5)

5шт.

BOLT - 1/4" x 1/2" N.C. hex. (13-48) nut (25-104)

1шт.

10

F12361

STUD - chain tightener

1шт.

NUT - 7/16" N.C. hex. jam (25-147)

2шт.

WASHER - 7/16" plain (95-7) L.W. (92-7)

1шт.

PIN - 3/16" x 1" cotter (132-91)

1шт.

11

F83368

ROLLER - chain tightener

2шт.

12

F4345

BUSHING

1шт.

13

F12367

ANGLE - rear assembly, elevator extension tube

1шт.

BOLT - 1/4" x 5/8" N.C. hex (13-410) nut (25-104)

3шт.

14

F12366

ANGLE - side assembly, For elevator extension tube

2шт.

BOLT - 1/4" x 5/8" N.C. hex. (13-410) nut (25-104)

4шт.

15

F83371

ARM - chain tightener

1шт.

WASHER - 1/2" plain (95-8)

1шт.

PIN - 1/8" x 1" cotter (132-48)

1шт.

16

F12378

X

CHAIN - Scourkleen drive (Consists of 2-B12470, 1-B12501, 4-B12502 and 5-B12503)

1шт.

17

F12362

BRACE - stiffener, For distributor auger extension tube

1шт.

18

F86466

SPROCKET - (30T) double drive on distributor auger shaft for Scourkleen and grain elevator drive

1шт.

PIN - 3/16" x 2" cotter (132-99)

1шт.

19

F12374

BRACKET - attaching, bottom for chain drive guard

1шт.

20

F86455

TUBE - extension, For bin distributor

1шт.

BOLT - 1/4" x 1/2" N.C. hex. (13-48) nut (25-104)

6шт.

21

F12365

SHIELD - bag, For operator's platform deck

1шт.

BOLT - 1/4" x 3/4" N.C. hex. (13-412) nut (25-104)

4шт.

WASHER - 1/4" plain (95-4) L.W. (92-4)

4шт.

22

F12363

PLATE - filler, front operator's platform deck

1шт.

BOLT - 1/4" x 3/4" N.C. hex. (13-412) nut (25-104)

2шт.

WASHER - 1/4" plain (95-4) L.W. (92-4)

2шт.

23

F12364

PLATE - filler, rear operator's platform deck

1шт.

BOLT - 1/4" x 3/4" N.C. hex. (13-412) nut (25-104)

4шт.

WASHER - 1/4" plain (95-4) L.W. (92-4)

4шт.

F86451

CHAIN - extension, elevating assembly (NSS) Consists of 1-F86420 and 1-connecting link (Not shown)

1шт.
