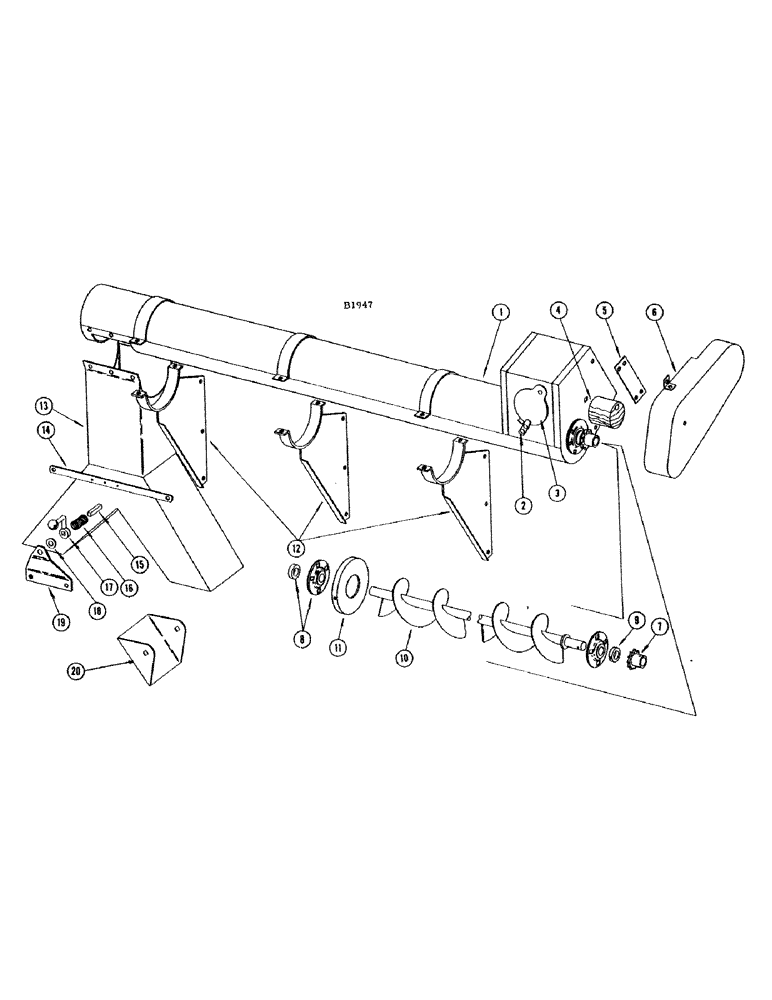

Запчасти Case IH 1010 (186) - CROSS AUGER ATTACHMENT (80) - CROP STORAGE/UNLOADING
№
Артикул
Название
Примечание
Количество
1
F86192
TUBE - cross auger, with hopper
1шт.
2
O1830TS
CLIP - for O308TS cover
1шт.
RIVET - 3/16" x 5/16" W.B. (49-35)
2шт.
BURR - 3/16" rivet (122-9)
2шт.
3
O308TS
COVER - for F86192
1шт.
RIVET - 1/4" x 3/8" W.B. (49-46)
1шт.
BURR - 1/4" rivet (122-13)
1шт.
BOLT - 1/4" x 1-1/4" N.F. hex. (114-6) nut (129-121)
6шт.
4
305-1/2CH
IDLER - (Wood) auger drive
1шт.
BOLT - 3/8" x 3-1/4" rhd. sq. nk. (111-328) nut (129-103)
1шт.
WASHER - 3/8" plain (195-525) L.W. (192-21)
1шт.
5
F12201
TIE STRAP
2шт.
BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)
8шт.
WASHER - 1/4" plain (195-518) L.W. (192-19)
8шт.
6
F86195
SHIELD - chain, cross auger drive
1шт.
BOLT - 1/4" x 3/8" N.C. hex. (113-6) L.W. (192-19)
2шт.
7
F10267
SPROCKET - (13T) cross auger drive, driven
1шт.
BOLT - 1/4" x 1-3/4" N.F. hex. (14-428)
1шт.
NUT - jam (25-154)
2шт.
8
F78749
COLLAR
BEARING - (Aetna #AG1014-4) auger shaft
2шт.
9
F52076
COLLAR
1шт.
10
F86194
AUGER - cross
1шт.
11
F8847
END PLATE - auger tube, R.H.
1шт.
BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114)
3шт.
BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)
2шт.
12
F86229
SUPPORT - cross auger tube
3шт.
BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123)
9шт.
13
F77357
SPOUT - twin sacker
1шт.
14
O2031CS
STRAP - sack holder chain
1шт.
RIVET - 1/8" x 5/8" rhd. (45-210) burr (122-4)
3шт.
15
O672CW
PIN - sacker valve
1шт.
PIN - 1/8" x 3/4" cotter (132-46)
2шт.
16
O321CW
SPRING - sacker drive pin
1шт.
17
228CW
LEVER - cutoff
1шт.
18
O5087A
X
WASHER - (1" O.D. x 17/32" I.D. #16 ga.) between spout side and O5837HT bracket
1шт.
19
O5837HT
BRACKET - sacker spout valve
1шт.
RIVET - 1/4" x 1/4" W.B. (49-44)
2шт.
20
O20374HT
VALVE - sacker, complete
1шт.
SCREW - 1/4" x 1/2" N.C. mach. (75-48)
1шт.
NUT - (25-224)
2шт.
F12167
X
CHAIN - cross auger drive (Use 1-B12470 chain, 1-B12472 chain, 1-B12501 conn. link and 5-B12503 roller links #40)
1шт.
