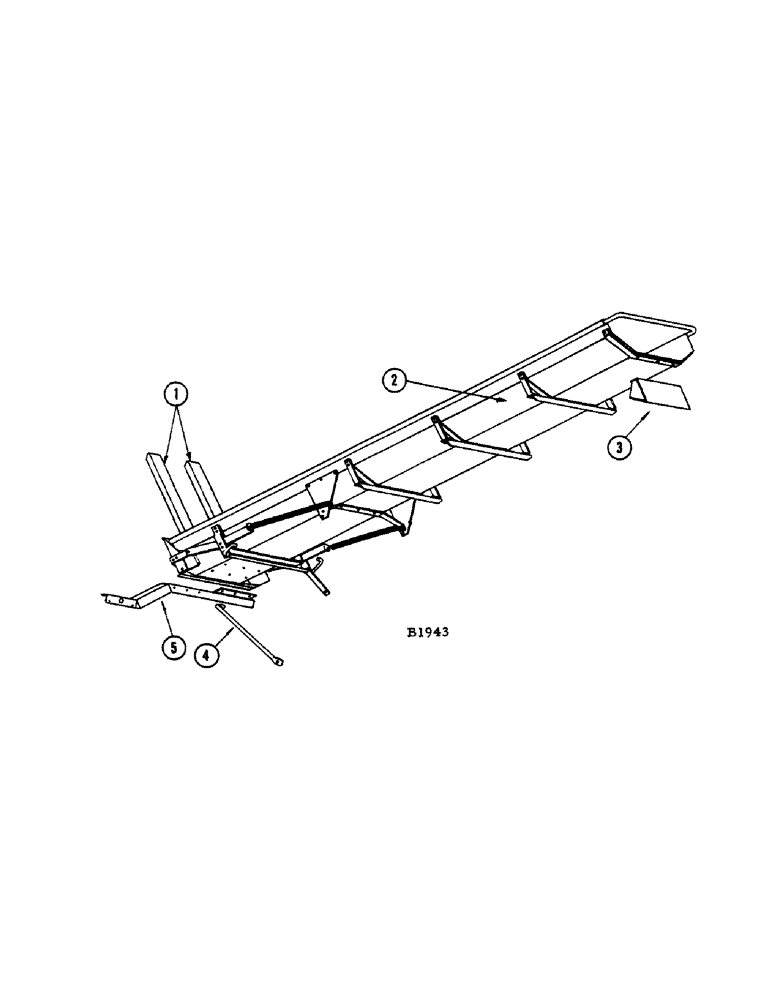

Запчасти Case IH 1010 (184[A]) - BRACES FOR BAG CHUTE (80) - CROP STORAGE/UNLOADING

1

F77328

EXTENSION - end gate

2шт.

2

F82668

CHUTE - bag

1шт.

3

F86127

SUPPORT - bag chute

1шт.

BOLT - 1/4" x 7/8" N.F. hex. (114-5) nut (129-121)

4шт.

4

F86121

BRACE - bag chute rear support

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) nut (129-123)

1шт.

5

F86342

SUPPORT - rear, bag chute

1шт.
