Артикул
Название
Примечание
Количество

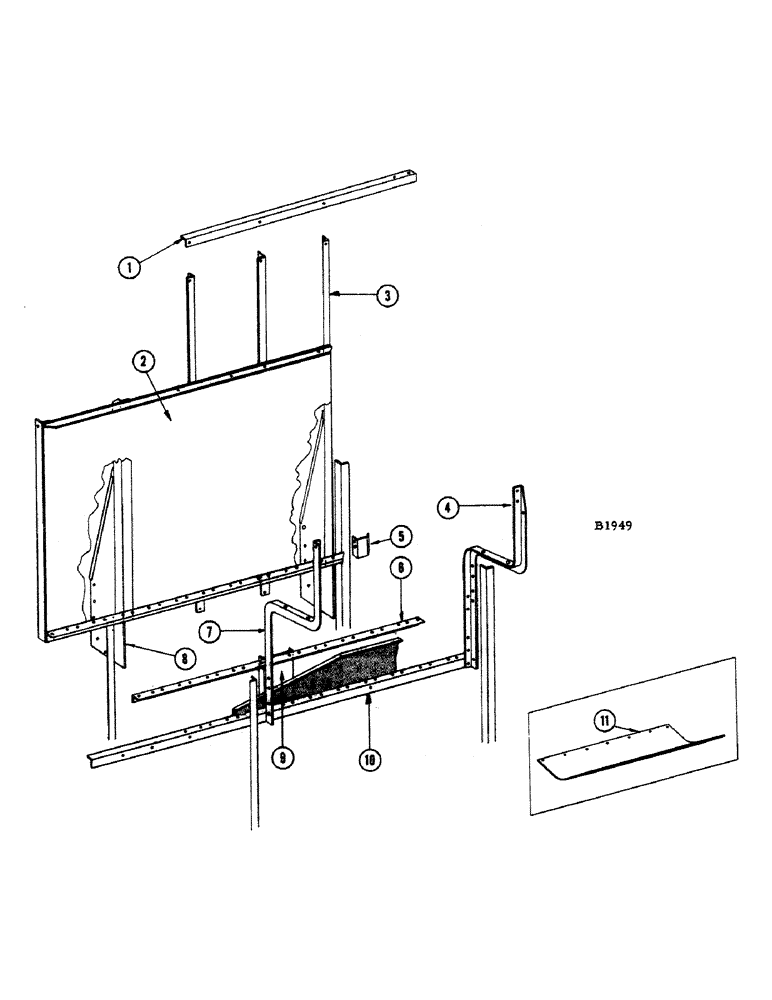

1
F12003
ANGLE - elevator support
1шт.
BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)
2шт.
WASHER - 5/16" plain (195-521) L.W. (192-20)
2шт.
BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123)
3шт.
2
F86132
PANEL - rear
1шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)
4шт.
BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)
4шт.
BOLT - 7/16" x 7/8" N.F. hex. (114-218) nut (129-124)
4шт.
BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123)
1шт.
3
F12002
POST - rear panel, L.H.
3шт.
BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)
6шт.
BOLT - 5/16" x 7/8" N.F. hex. (114-101) nut (129-122)
2шт.
BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)
18шт.
4
F12024
POST - seat, L.H.
1шт.
BOLT - 1/4" x 1-1/2" rhd. sq. nk. (111-114) nut (129-101)
2шт.
BOLT - 7/16' x 1" N.F. hex. (114-301) nut (129-124)
2шт.
BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123)
2шт.
5
F12510
COVER - throttle rod
1шт.
6
F8725
ANGLE - center, floor support
1шт.
7
F12025
POST - seat (1 R.H. and 2 center)
3шт.
BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122)
2шт.
BOLT - 5/16" x 1-1/2" rhd. sq. nk. (111-221) nut (129-102)
2шт.
BOLT - 7/16" x 1" N.F. hex. (114-301) nut (129-124)
2шт.
BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123)
5шт.
8
F12016
SUPPORT - rear
2шт.
BOLT - 5/16" x 1-1/4" N.F. hex. (114-110) nut (129-122)
6шт.
WASHER - 5/16" plain (195-521)
8шт.
BOLT - 7/16" x 7/8" N.F. hex. (114-218) nut (129-124)
4шт.
9
F12191
CHANNEL - support, rear panel
1шт.
BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123)
4шт.
10
F12026
SUPPORT - front, floor
1шт.
11
F11883
FILLER - deck, covers grain bin discharge auger opening
1шт.
