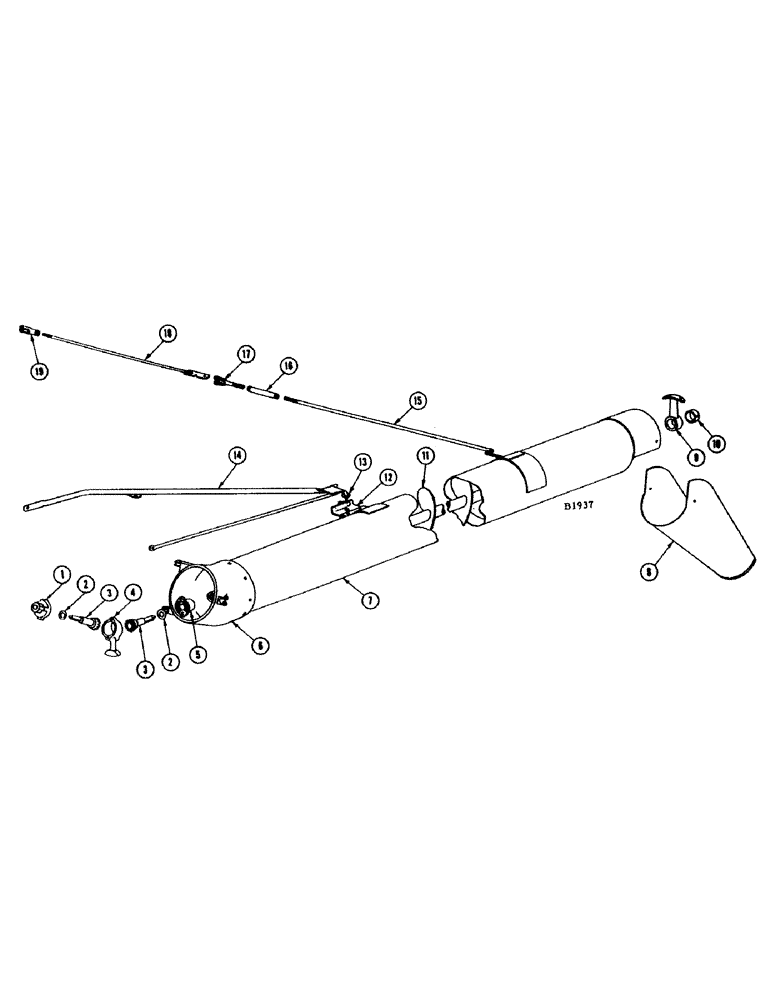

Запчасти Case IH 1010 (178) - GRAIN BIN DISCHARGE AUGER (80) - CROP STORAGE/UNLOADING

1

F82641

CAP

- inner (#8225711 and after) See F79405

1шт.

BOLT - 5/16" x 7/8" N.C. hex. (13-514) L.W. (92-5)

2шт.

F17053

BEARING

BUSHING - (1" I.D. x 1-1/4" long) discharge auger (Not shown)

1шт.

BOLT - 5/16" x 7/8" N.C. hex. (13-514) L.W. (92-5)

2шт.

F79405

CAP - inner, with F17053 bearing (#8225401 thru #8225710) See F82641

1шт.

F17053

BEARING

BUSHING

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (13-512) L.W. (92-5)

2шт.

2

F17801

WASHER

1шт.

3

F12440

GEAR - (13T) auger drive

2шт.

4

F1388

GEAR BOX - (#8225711 and after) See F1377

1шт.

FITTING - #5003 Lincoln (219-3)

1шт.

F1377

GEAR BOX - (#8225401 thru #8225710) See F1388 (Not shown)

1шт.

BOLT - 3/8" x 1-1/2" N.C. hex. (13-624) L.W. (92-6)

2шт.

5

F86427

CAP - outer

1шт.

F17054

FLANGED BEARING

BUSHING - (1" I.D. x 1-1/2" long - with flange) discharge auger (Not shown)

1шт.

BOLT - 5/16" x 7/8" N.C. hex. (13-514) L.W. (92-5)

2шт.

6

F1387

ELBOW - grain bin auger (#8225711 and after) See F1376

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) L.W. (92-6)

2шт.

F1376

ELBOW - grain bin auger (#8225401 thru #8225710) See F1387 (Not shown)

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) L.W. (92-6)

2шт.

7

F79487

TUBE - discharge auger

1шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (11-614) nut (25-106)

10шт.

WASHER - 3/8" plain (195-25)

10шт.

8

F11362

SPOUT - discharge auger

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616)

2шт.

NUT - (25-116)

4шт.

9

F1378

HANGER - discharge auger

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

2шт.

WASHER - 5/16" plain (195-21)

2шт.

10

F11361

COLLAR - discharge auger

1шт.

11

F79490

AUGER - discharge

1шт.

12

F86169

PLATE - locator, grain bin auger tube

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

WASHER - 3/8" plain (195-25) L.W. (92-6)

2шт.

NUT - 3/8" N.C. wing (129-410) L.W. (192-21)

1шт.

13

O1558CH

X

WASHER - (1-1/2" O.D. x 13/32" I.D. #10 or 12 ga.) For ref. 12

1шт.

14

F86162

FRAME - grain bin auger

1шт.

BOLT - 1/2" x 1-1/2" N.F. hex. (113-410) pl. wshr. (195-533)

2шт.

BOLT - 5/16" x 1-3/4" N.F. hex. (114-106) nut (129-122)

1шт.

15

F12126

ROD - support, grain bin discharge auger tube

1шт.

16

F86175

TURNBUCKLE - grain bin auger rod

1шт.

NUT - 1/2" N.F. hex. (25-118)

1шт.

NUT - 1/2" N.F. hex., L.H. thrd. (129-325)

1шт.

17

F12144

CLEVIS - grain bin auger rod

1шт.

PIN - 1/2" x 1-37/64" clevis (141-6)

1шт.

PIN - 1/8" x 3/4" cotter (132-46)

1шт.

NUT - 1/2" N.F. hex. (129-125)

1шт.

18

F86170

PLATE - pivot, auger support rod

1шт.

19

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - grain bin auger rod

1шт.

PIN - 1/2" x 1-37/64" clevis (141-6)

1шт.

PIN - 1/8" x 3/4" cotter (132-46)

1шт.
