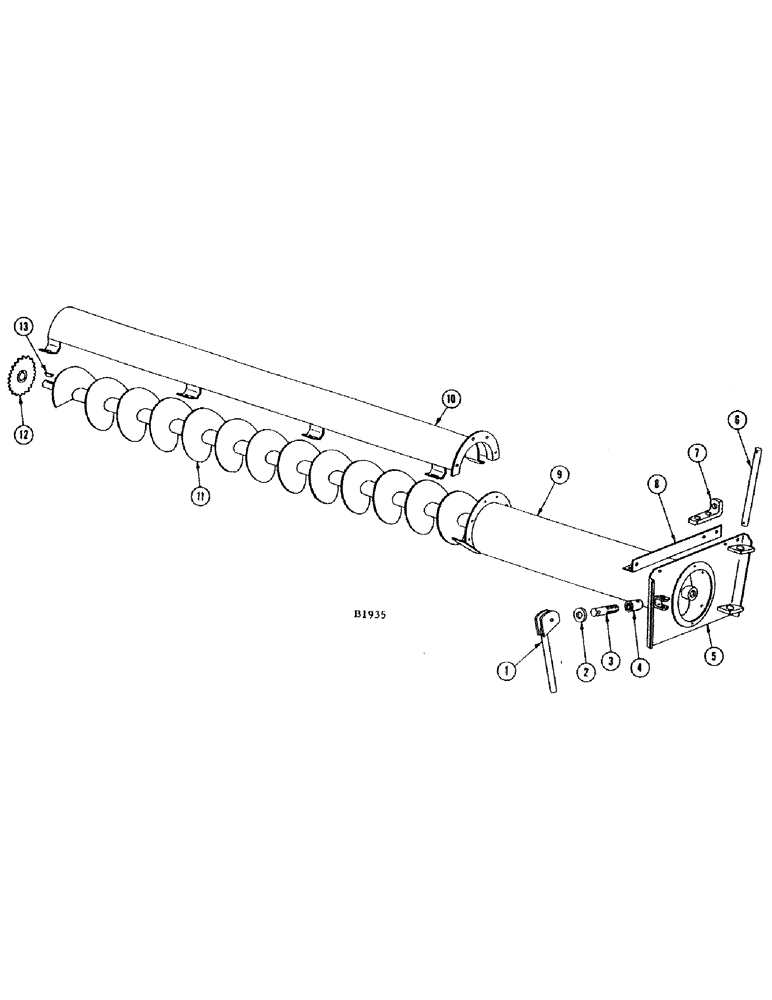

Запчасти Case IH 1010 (176) - GRAIN BIN AUGER (80) - CROP STORAGE/UNLOADING

1

F86174

HANDLE - latch, auger tube

1шт.

PIN - 5/16" x 1" Type 5 Driv-Loc (135-770)

1шт.

2

F12141

PLATE - cam

1шт.

3

F12140

ROD - latch handle

1шт.

NUT - 9/16" N.F. hex. jam (25-159)

1шт.

4

F12142

NUT - adjusting

1шт.

5

F86149

HINGE - auger elbow

1шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (111-217) nut (129-102)

4шт.

BOLT - 3/8" x 5/8" N.F. hex. (114-221) nut (129-123)

2шт.

6

F12143

HINGE PIN - grain bin auger rod

1шт.

PIN - 3/16" x 1" cotter (132-91)

2шт.

7

F12074

ANCHOR - front, auger frame

1шт.

BOLT - 1/2" x 1-1/2" N.C. hex. (113-410) #29 EO83 ESNA nut (131-10) and pl. wshr. (195-533)

1шт.

8

F12073

ANCHOR - hinge plate, auger elbow

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123)

4шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) nut (129-123)

2шт.

9

F79402

TUBE - grain bin auger

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)

5шт.

BOLT - 3/8" x 5/8" N.F. hex. (114-221) nut (129-123)

6шт.

O418L

WASHER - (7/8" O.D. x 13/32" I.D. sq.) For 111-302 bolts of F79402 tube (Not shown)

5шт.

10

F86115

COVER - auger

1шт.

BOLT - 5/16" x 1/2" N.C. hex. (13-58) L.W. (92-5)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

2шт.

11

F86114

AUGER - grain bin

1шт.

12

F79411

SPROCKET - (34T) grain bin auger drive, driven

1шт.

PIN - 1/8" x 1-1/2" cotter (132-52)

1шт.

13

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.
