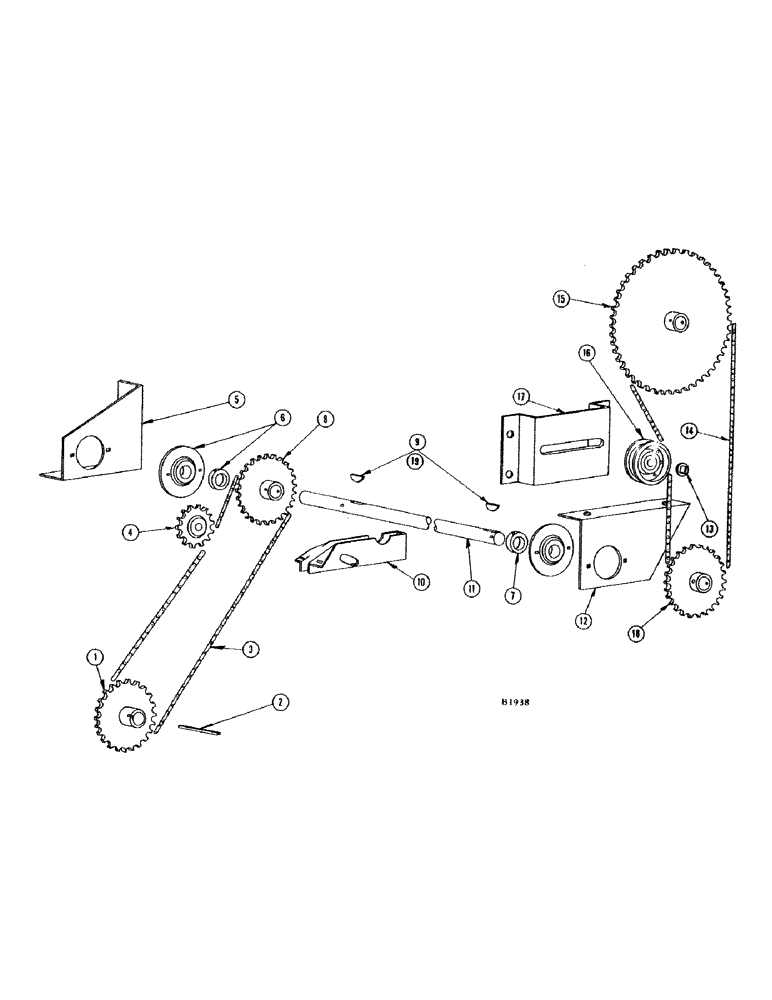

Запчасти Case IH 1010 (174) - GRAIN BIN DRIVE (80) - CROP STORAGE/UNLOADING

1

F86732

SPROCKET - (30T) distribution auger drive (#8262501 and after)

1шт.

F79374

SPROCKET - (30T) distribution auger drive (Before #8262501)

1шт.

85-512

SET SCREW

SCREW - 5/16" x 3/4" N.C. cup pt. set and jam nut (129-142)

1шт.

2

O818B

KEY

- (5/16" x 5/16" x 3-3/4") F79374 sprocket

1шт.

O227CW

KEY - (5/16" x 5/16" x 3-1/8") F86732 sprocket

1шт.

3

F11149

X

CHAIN - distribution auger jackshaft drive (See chain page)

1шт.

4

F7935

SPROCKET ASSY.

IDLER - jackshaft chain

1шт.

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

and nut (25-1110) Hex, 5/8"-18 x 2", G5

1шт.

195-41

WASHER,5/8"

- 5/16" flat

4шт.

5

F12645

BRACKET - L.H., jackshaft bearing (Replaces F11036)

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

and nut (25-116) Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , and nut (25-115) Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

6

F78749

COLLAR

BEARING - jackshaft

2шт.

7

F52076

COLLAR

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

4шт.

8

F79467

SPROCKET ASSY.

SPROCKET - (30T) distribution auger drive, driven

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

9

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

10

F12647

BRACKET - idler (#8262501 and after)

1шт.

F11518

BRACKET - idler (Before #8262501)

1шт.

11

F12648

JACKSHAFT - distribution auger drive (#8262401 and after)

1шт.

F11997

JACKSHAFT - distribution auger drive (Before #8262501)

1шт.

12

F11143

BRACKET - R.H., jackshaft bearing

1шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex. and nut (129-123)

2шт.

13

O1936HT

WASHER - used with F11994 bracket

4шт.

14

F11237

X

CHAIN - distribution auger drive (See chain page)

1шт.

15

F86141

SPROCKET - (60T) elevator drive, driven

1шт.

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

16

O3511CS

PULLEY

- tightener, elevator drive chain

1шт.

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

- 1/2" x 2-1/2" N.F. hex. and nut (25-118)

1шт.

195-33

WASHER,1/2"

- flat 1/2"

4шт.

17

F11144

BRACKET - adjustment, for upper elevator shaft

1шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

and nut (129-122) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

18

F86883

SPROCKET ASSY.

SPROCKET - (30T) outer, jackshaft, grain bin drive

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

19

126-215

KEY - #708 Hi-Pro

1шт.
