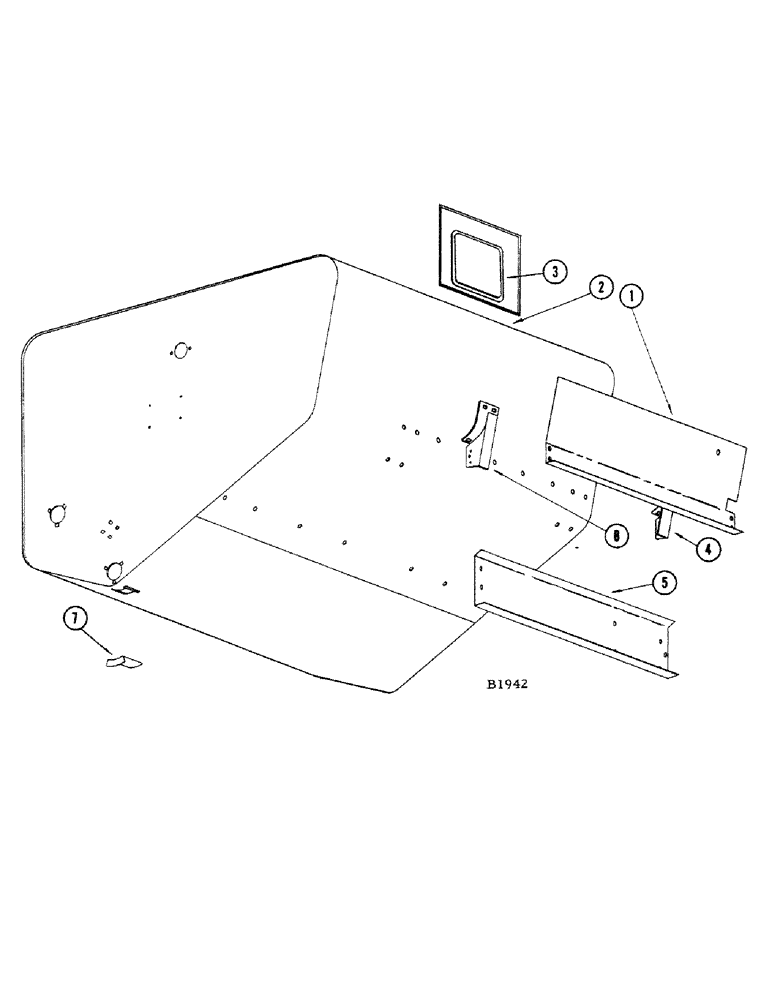

Запчасти Case IH 1010 (170) - GRAIN BIN AND SUPPORTS (80) - CROP STORAGE/UNLOADING

1

F11147

FRONT SHEET - body

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk. and nut (129-101)

5шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

and nut (129-122) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

114-105

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

and nut (129-122) Hex, 5/16"-24 x 5/8", G5, Full Thd

6шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk. and nut (129-103)

3шт.

2

F86735

BIN - grain (Replaces F86112)

1шт.

131-129

NUT

- 1/2" - 20 Tinnerman

8шт.

3

F11501

DOOR - inspection

1шт.

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" rhd. N.C. mach.

8шт.

4

F79413

SUPPORT - front, L.H.

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk. and nut (25-106)

3шт.

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

and nut (129-124) Hex, 7/16"-20 x 1", G5, Full Thd

2шт.

5

F12644

SUPPORT - center (Replaces F11996)

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , and nut (25-115) Hex, 5/16"-24 x 5/8", G5, Full Thd

9шт.

6

F79412

SUPPORT - front, R.H.

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk. and nut (25-106)

4шт.

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

and nut (129-124) Hex, 7/16"-20 x 1", G5, Full Thd

2шт.

7

F9188

DOOR

- clean out

1шт.
