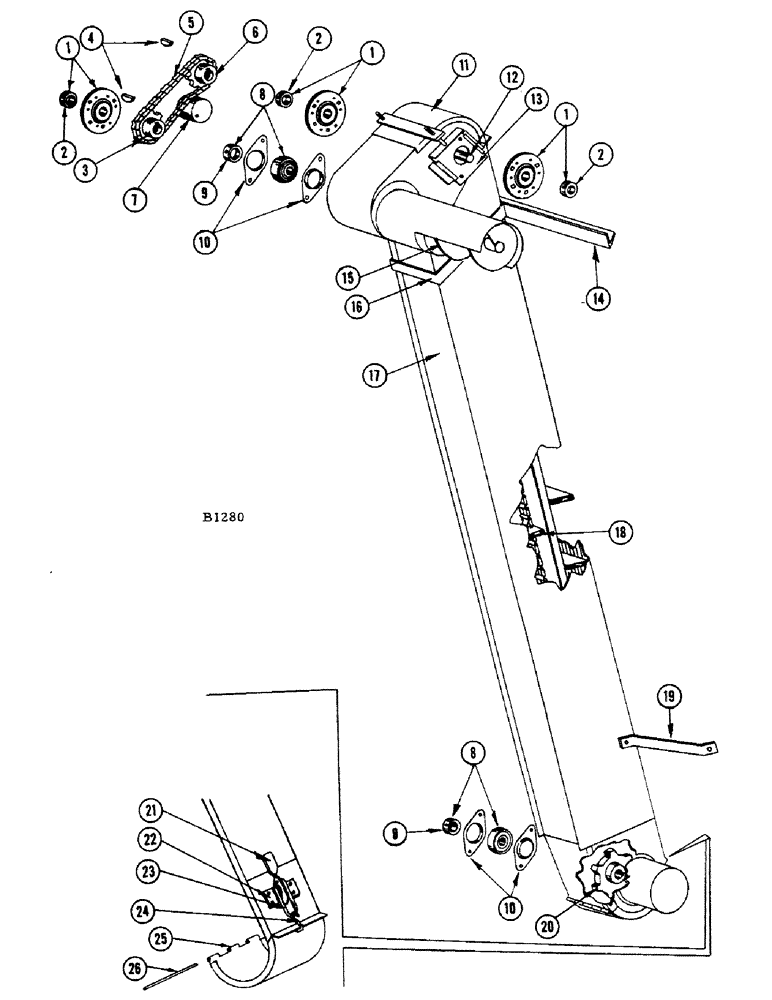

Запчасти Case IH 1010 (168) - TAILINGS ELEVATOR (80) - CROP STORAGE/UNLOADING

1

F78749

COLLAR

BEARING - upper shaft and discharge auger

3шт.

2

F52076

COLLAR

1шт.

3

F76947

SPROCKET - (15T) discharge auger drive, driven

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

4

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Discharge auger drive sprockets #A, 1/4" x 7/8"

2шт.

5

F7904

X

CHAIN - discharge auger drive (See chain page)

1шт.

6

F76981

SPROCKET - (22T) upper shaft, discharge auger drive

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

7

305-1/2CH

IDLER

1шт.

11-652

BOLT - 3/8" x 3-1/4" rhd. sq. nk. and nut (25-106) Short NK, 3/8"-16 x 3 1/4", G2

1шт.

8

F90306

BEARING ASSY

BEARING - discharge auger and lower shaft

2шт.

9

O4233CS

COLLAR

1шт.

10

F9417

FLANGE

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

4шт.

11

F76970

COVER - upper head

1шт.

113-114

BOLT - 5/16" x 4-1/4" N.C. hex.

4шт.

9635082

NUT,5/16" - 18, Gr 5

8шт.

12

F6571

SHAFT - upper

1шт.

13

F7901

HOLDER - upper shaft bearing

2шт.

14

F11519

ANGLE - support (Bagger combines only)

1шт.

15

F79824

AUGER - tailings discharge

1шт.

16

F77059

SCREW

SUPPORT - upper

1шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

and L.W. (92-4) Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

195-18

WASHER,1/4"

- flat 1/4"

1шт.

17

F79434

BODY - elevator, with heads

1шт.

18

F79436

X

CHAIN AND FLIGHTS - (NSS) Consists of 2-F86425, 1 coupler link and 1-#155 plain link

1шт.

19

F7836

SUPPORT - lower

1шт.

14-142

BOLT - 1/4" x 3/4" N.F. hex. and nut (25-114)

1шт.

20

51B

SPROCKET ASSY.

SPROCKET - (7T) upper and lower shafts

2шт.

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

2шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

2шт.

21

O313CS

HANDLE - latch

1шт.

45-310

RIVET,But Hd, 3/16" x 5/8"

- 3/16" x 5/8" rhd.

1шт.

22

O314CS

BRACKET - latch handle

2шт.

49-35

RIVET - 3/16" x 5/16" W.B. hd.

4шт.

23

O316CS

SPRING - latch handle

1шт.

24

O315CS

HOOK - latch

1шт.

25

F78417

COVER - lower head

1шт.

26

O309CS

PIN - hinge

1шт.
