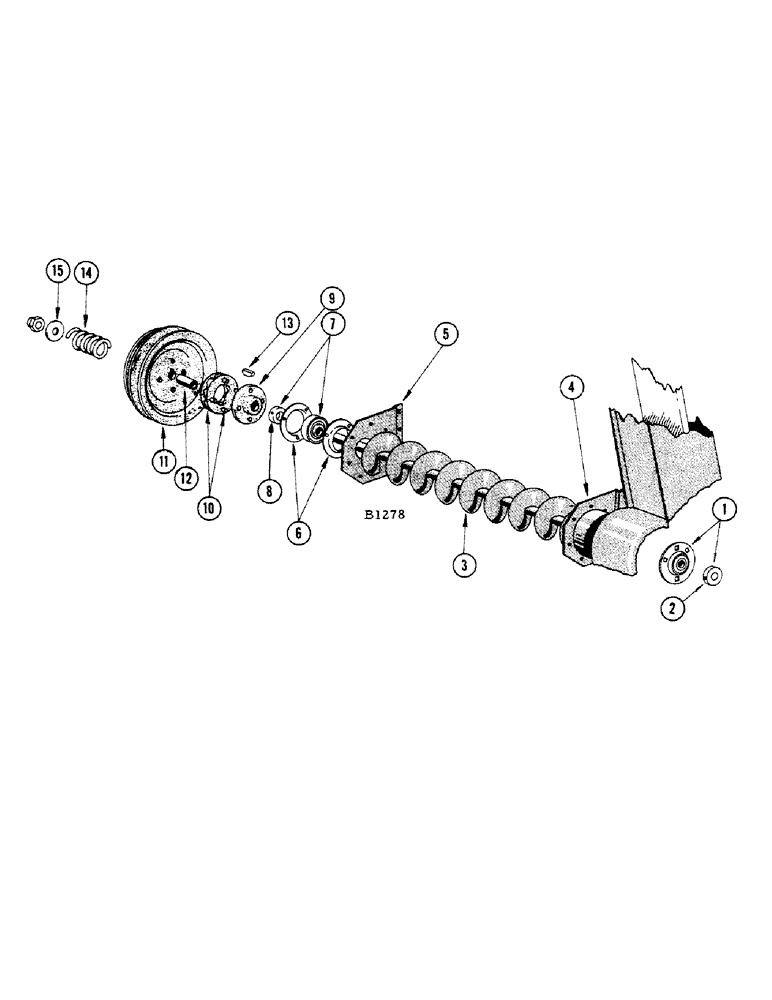

Запчасти Case IH 1010 (166) - GRAIN AUGER (80) - CROP STORAGE/UNLOADING

1

F78749

COLLAR

BEARING - (Aetna #AG1014C-4)

1шт.

2

F52076

COLLAR

1шт.

3

F79472

AUGER - grain (Grain bin) See F86144

1шт.

F86144

AUGER - grain (Bagging platform) See F79472

1шт.

KEY - "A" Woodruff (126-21)

1шт.

NUT - 3/4" N.F. ESNA #29NTE126 (131-37)

1шт.

4

F7823

FLANGE - L.H. side

1шт.

5

F76945

PLATE - for 3074CSA bearing (Ref. 7)

1шт.

SCREW - 1/4" x 5/8" rhd. N.C. mach. (75-410) nut (25-104)

8шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106)

3шт.

SCREW - 1/4" x 1/2" rhd. N.C. mach. (75-48) nut (25-104)

1шт.

6

O799CB

X

FLANGE - for 3074CSA bearing (Ref. 7)

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

3шт.

7

3074CSA

BALL BEARING

- (Fafnir #RA100NPPB) R.H. end of grain auger shaft

1шт.

8

O3785CS

X

COLLAR

1шт.

9

143CS

PLATE

- hub, jump clutch

1шт.

10

T16665

RING - clutch

2шт.

11

F1262

SHEAVE - drives grain auger (Slow fan speed attachment) See F86142

1шт.

F86142

SHEAVE - drives grain auger (See F1262)

1шт.

12

F12054

BUSHING

1шт.

13

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

14

O1090CH

SPRING

- jump clutch

1шт.

15

O2985A

X

WASHER - (1-9/16" O.D. x 25/32" I.D. #12 ga.) For F11232 shaft

1шт.

F7819

TROUGH - grain auger (Not shown)

1шт.
