Запчасти Case IH 1010 (166[A]) - TAILINGS AUGER (80) - CROP STORAGE/UNLOADING

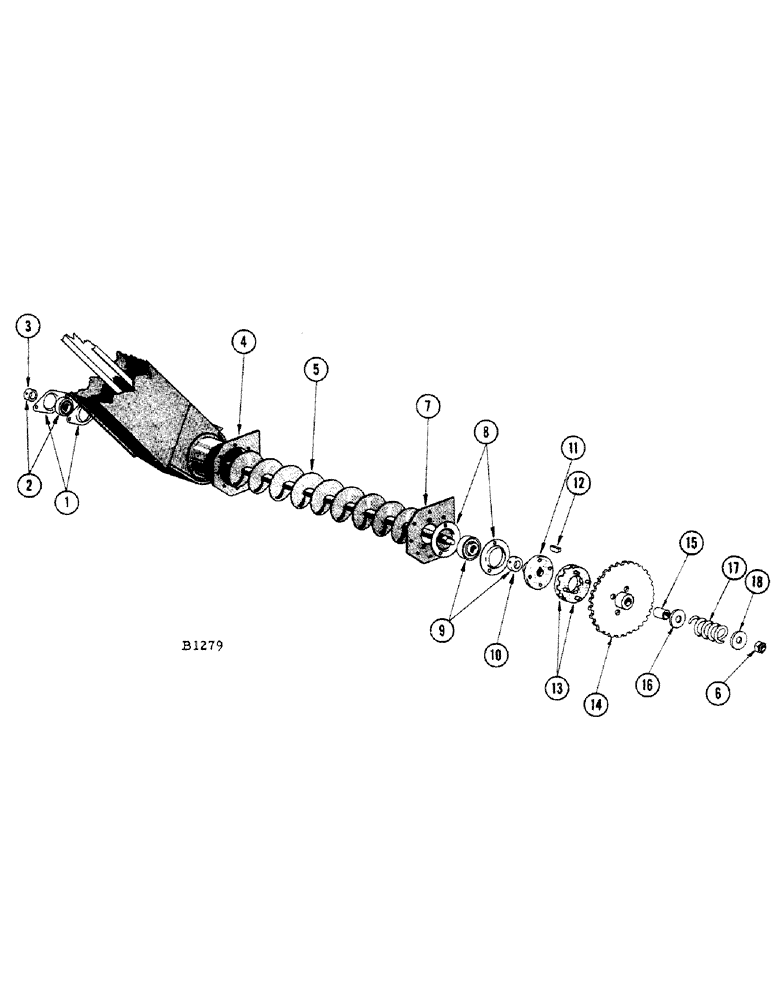

Схема запчастей Case IH 1010 - (166[A]) - TAILINGS AUGER (80) - CROP STORAGE/UNLOADING
1
10
14
12
15
8
6
9
5
17
7
4
13
11
16
18
3
2

Артикул

Название

Примечание

Количество

1

F9417

FLANGE

- for F90306 bearing (Ref. 2)

2шт.

2

F90306

BEARING ASSY

BEARING - (Fafnir #RAO14PPB) auger shaft, R.H.

1шт.

3

O4233CS

COLLAR

1шт.

4

F7832

FLANGE - tailings auger, R.H. side

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106)

3шт.

5

F76948

AUGER - tailings

1шт.

6

131-37

LOCK NUT,3/4"-16

NUT - 3/4" - 16 N.F. #49NTE126 ESNA

1шт.

7

F7833

BRACKET - tailings auger bearing, L.H.

1шт.

8

O799CB

X

FLANGE - for 3074CSA bearing (Ref. 9)

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

3шт.

9

3074CSA

BALL BEARING

- (Fafnir #RA100NPPB) auger shaft, L.H.

1шт.

10

O3785CS

X

COLLAR

1шт.

11

143CS

PLATE

HUB - jump clutch

1шт.

12

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

13

T16665

RING - clutch

2шт.

14

F79359

SPROCKET ASSY.

SPROCKET - (40T) tailings auger drive

1шт.

15

F11042

BEARING

BUSHING

1шт.

16

O3885A

WASHER

- (1-9/16" O.D. x 29/32" I.D. #12 ga.) jump clutch spring, inner

1шт.

17

O1090CH

SPRING

- jump clutch

1шт.

18

O2985A

X

WASHER - (9/16" O.D. x 25/32" I.D. #12 ga.) jump clutch spring, outer

1шт.

F11625

TROUGH - tailings auger (Not shown) See grain floor

1шт.

Выбрано товаров: 21
